Derivation Of Lens Maker Formula

Lenses of different focal lengths are used for various optical instruments. The lens’s focal length depends upon the refractive index of the material of the lens and the radii of curvatures of the two surfaces. The derivation of lens maker formula is provided here so that aspirants can understand the concept more effectively. Lens manufacturers commonly use the lens maker formula for manufacturing lenses of the desired focal length.

Table of contents

Lens Maker Formula Derivation

Derivation Of Lens Maker Formula

Assumptions

The following assumptions are taken for the derivation of lens maker formula.

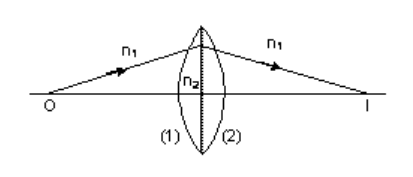

  • Let us consider the thin lens shown in the image above with 2 refracting surfaces having the radii of curvatures R1 and R2, respectively.
  • Let the refractive indices of the surrounding medium and the lens material be n1 and n2, respectively.

Derivation

The complete derivation of the lens maker formula is described below. Using the formula for refraction at a single spherical surface, we can say that,

For the first surface,

\(\begin{array}{l}\frac{n_{2}}{v_{1}} – \frac{n_{1}}{u} = \frac{n_{2}-n_{1}}{R_{1}}…(1)\end{array} \)

For the second surface,

\(\begin{array}{l}\frac{n_{1}}{v} -\frac{n_{2}}{v_{1}} = \frac{n_{1}-n_{2}}{R_{2}}…(2)\end{array} \)

Now adding equation (1) and (2),

\(\begin{array}{l}\frac{n_{1}}{v} -\frac{n_{1}}{u} = \left ( n_{2} – n_{1} \right)\left [ \frac{1}{R_{1}} – \frac{1}{R_{2}} \right ]\end{array} \)

\(\begin{array}{l}\Rightarrow \frac{1}{v} -\frac{1}{u} = \left ( \frac{n_{2}}{n_{1}} – 1 \right)\left [ \frac{1}{R_{1}} – \frac{1}{R_{2}} \right ]\end{array} \)

When u = ∞ and v = f

\(\begin{array}{l}\frac{1}{f} = \left ( \frac{n_{2}}{n_{1}} – 1 \right)\left [ \frac{1}{R_{1}} – \frac{1}{R_{2}} \right ]\end{array} \)

But also,

\(\begin{array}{l}\frac{1}{v} – \frac{1}{u} = \frac{1}{f}\end{array} \)

Therefore, we can say that,

\(\begin{array}{l}\frac{1}{f} = \left ( \mu – 1 \right)\left [ \frac{1}{R_{1}} – \frac{1}{R_{2}} \right ]\end{array} \)

Where ΞΌ is the refractive index of the material.

This is the lens maker formula derivation. Check the limitations of the lens maker’s formula to understand the lens maker formula derivation in a better way.

Limitations of the lens maker’s formula

  • The lens should not be thick so that the space between the 2 refracting surfaces can be small.
  • The medium used on both sides of the lens should always be the same.
Related Topics In Physics
Basic Laws Of Physics Derivation Of Physics Formulas
SI Units In Physics Differences & Comparisons
Relation Between In Physics Value of Constants
Types and Classification Application And Uses

Stay tuned with BYJU’S and learn more about the derivation of various formulas.

Test your knowledge on Lens maker formula derivation
