Azeotrope

What is Azeotrope?

An azeotrope is a mixture of two or more liquids which displays the same level of concentration in the liquid and vapour phase. Simple distillation cannot alter their proportions. These mixtures can either have a lower boiling point or a higher boiling point of the components.

An azeotrope is a mixture that, at a given pressure (the azeotropic pressure), boils at a constant temperature (the azeotropic temperature), and has the same composition (azeotropic composition) in the equilibrium vapour and liquid phases.

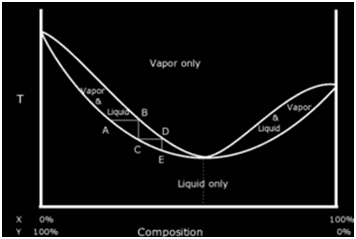

Azeotrope Mixture Distillation Curve

They are termed as constant boiling mixtures as their composition remains unchanged by distillation. That is the constitutions stays in the same proportion even when the azeotrope is boiled. When distillation cannot alter a fraction of a liquid, it results in azeotropes.

Table of Contents

Azeotrope Mixture

An azeotropic compound is a mixture of two substances which distil at the same temperature. An azeotrope is a mixture of compounds with the same composition in the vapour as in the liquid. In other words, an azeotrope is a liquid mixture that has a constant boiling point and whose vapour has the same composition as the liquid. Several compounds, such as toluene, benzene, and cyclohexane, form suitable azeotropes with water.

Azeotrope Distillation

Azeotropic distillation as on early and important special distillation process is commonly used in laboratory and industry. Azeotropic distillation is accomplished by adding to the liquid phase a volatile third component which changes the volatility of one of the two components more than the other so that the components are separated by distillation.

        • An azeotropic distillation performed in a laboratory is normally done in batches in a conventional fractional distillation column. In such a case, an excess of the usually required amount of the azeotropic agent is added with the charge to the still.
        • The mixture is then distilled in the same manner as a conventional fractional distillation. If the mixture of binary compound and azeotrope is a minimum boiling point type then the distillate product should contain only one of the original components and the azeotropic agent.
        • The composition of the distillate product then changes as the distillation proceeds since the separation taking place is between the different azeotropes.
        • Then the distillation should proceed until all other components have been removed as a distillate product leaving the bottom product as the remaining component and the azeotropic agent.

</

Types of Azeotropes

1. Heterogeneous and Homogeneous Azeotropes

If azeotropes are found in constitutions of mixtures and if they are not completely miscible then they are termed as heterogeneous azeotropes. Homogeneous Azeotropes are azeotropes in which the constitutions of a mixture are miscible completely. Hetero Azeotropic distillation comprises two liquid phases.

2. Maximum boiling Azeotropes

The liquid solution which show negative deviation from the ideal solution boil at constant temperature which is higher than that of pure component are called maximum boiling azeotropes

Water boils at a hundred degree Celsius and hydrochloric acid boil at around minus eight four degree Celsius, whereas azeotropes boil at around hundred and ten degree Celsius indicating that it has a higher boiling point than its constituents.

3. Minimum boiling Azeotropes

The liquid solution which show positive deviation from the ideal solution boil at constant temperature which is less than that of pure component are called minimum boiling azeotropes.

Water boils at a hundred degree Celsius, and ethanol boils at around seventy-eight-degree Celsius, whereas azeotropes boil at around seventy-eight-degree Celsius indicating that it has a lower boiling point than its constituents.

4. Binary Azeotropes

Binary Azeotropes are azeotropes consisting of two constitutions as mentioned above illustration. Ternary Azeotropes are azeotropes consisting of more than three constitutions.

Frequently Asked Questions – FAQs

Q1

What is an azeotrope?

An azeotrope is a mixture of two or more liquids that displays the same concentration level in the liquid and vapour phase. These mixtures can either have a lower or higher boiling point of the components.
Q2

What are the different types of azeotrope?

We can classify azeotropes into five classes. They are homogeneous azeotrope, heterogeneous azeotrope, binary azeotrope, maximum boiling azeotrope and minimum boiling azeotrope.
Q3

How does azeotrope affect distillation?

An azeotrope is a mixture of two or more liquids that displays the same concentration level in the liquid and vapour phase. The distillation can not alter the proportion of an azeotrope.
Q4

Can we separate azeotropes?

We can separate the azeotropes using extractive distillation, azeotropic distillation, or pressure swing distillation.
Q5

What is a binary azeotrope? Give an example.

A binary azeotrope is an azeotropic mixture containing two constituents. A mixture of 95% ethanol and 5% water is an example of a binary azeotrope.
Q6

What drives an azeotrope?

Azeotropes occur when a fraction of liquid is not separated by simple distillation.
Q7

What is a heterogeneous azeotrope?

A heterogeneous azeotrope is an azeotropic mixture in which the constitutions of mixtures are not completely miscible. A mixture of chloroform and water is an example of a heterogeneous azeotrope.
Q8

What is a homogenous azeotrope?

A homogeneous azeotrope is an azeotropic mixture in which the constitutions of mixtures are completely miscible. A mixture of alcohol and water is an example of a homogeneous azeotrope.
Q9

What is a maximum boiling azeotrope?

A maximum boiling azeotrope is an azeotropic mixture in which the constitutions of mixtures show a negative deviation from the ideal solution and boils at a constant temperature slightly higher than that of the pure component. A mixture of 68 % nitric acid and 32 % water by mass is an example of a maximum boiling azeotrope.
Q10

What is a minimum boiling azeotrope?

A minimum boiling azeotrope is an azeotropic mixture in which the constitutions of mixtures show a positive deviation from the ideal solution and boils at a constant temperature slightly lesser than that of the pure component. A mixture of 95. 5 % ethanol and 4. 5 % water by mass is an example of a minimum boiling azeotrope.

Visit BYJU’S to learn more about azeotropes.
