Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens provides an alternative way to summarize and learn concepts step by step. Selina Solutions help students to understand complex questions in a thorough manner, thus making it easy for them to prepare ahead for the exam. Selina Solutions promote a better conceptual understanding with detailed explanations.

These Solutions help students to get a good foundation in Physics. Practising Selina Solutions Concise Physics Class 10 makes the student understand the subject in-depth. These solutions also help students to quickly grasp the concepts. Students can download Selina Solutions free PDF from the links which are available here

## Download PDF of Selina Solutions Concise Physics Chapter 5 Refraction through a Lens

### Access Answers of Physics Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens

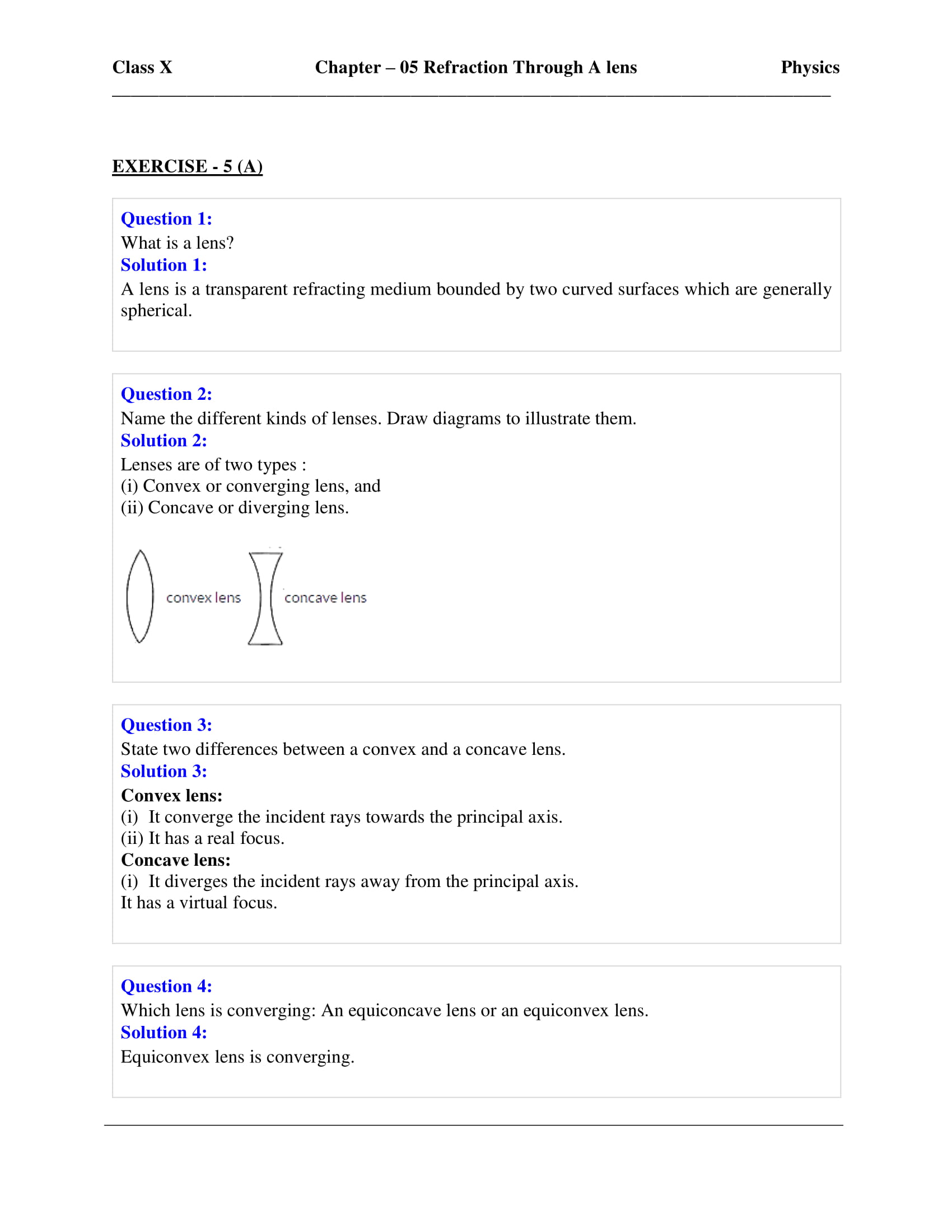

Exercise 5(A) page no: 109

**Question: 1**

**What is a lens?**

**Solution:**

A lens is defined as â€˜a transparent refracting medium bounded by either two spherical surfaces or one surface spherical and another surface planeâ€™.

**Question: 2**

**Name the two kinds of lens? Draw diagrams to illustrate them.**

**Solution:**

There are two types of lenses.

(i) Convex or converging lens and

(ii) Concave or diverging lens

**Question: 3**

**State difference between a convex and a concave lens in their **

**(a) appearance, and **

**(b) action on the incident light.Â **

**Solution:**

Convex lens | Concave lens |

It is thick in the middle and thin at its periphery. | It is thin in the middle and thick at its periphery. |

It converges the incident rays towards the principal axis. | It diverges the incident rays away from the principal axis. |

It has the real focus. | It has the virtual focus. |

**Question: 4**

**Which lens is converging: **

**(i) anÂ equiconcaveÂ lens or anÂ equiconvexÂ lens?**

**(ii) a concavo-convex lens or a convexo-concave lens?**

**Solution:**

(i) An equiconvex lens is converging

(ii) A concavo-convex lens is a converging lens. This is because a concavo-convex lens is thicker in the middle and thinner at the edges and has a converging action on a light beam.

**Question: 5**

**Out of the two lenses, one concave and the other convex, state which one will show the divergent action on a light beam. Draw diagram to illustrate your answer.**

**Solution:**

Concave lens will show the divergent action on a light beam

**Question: 6**

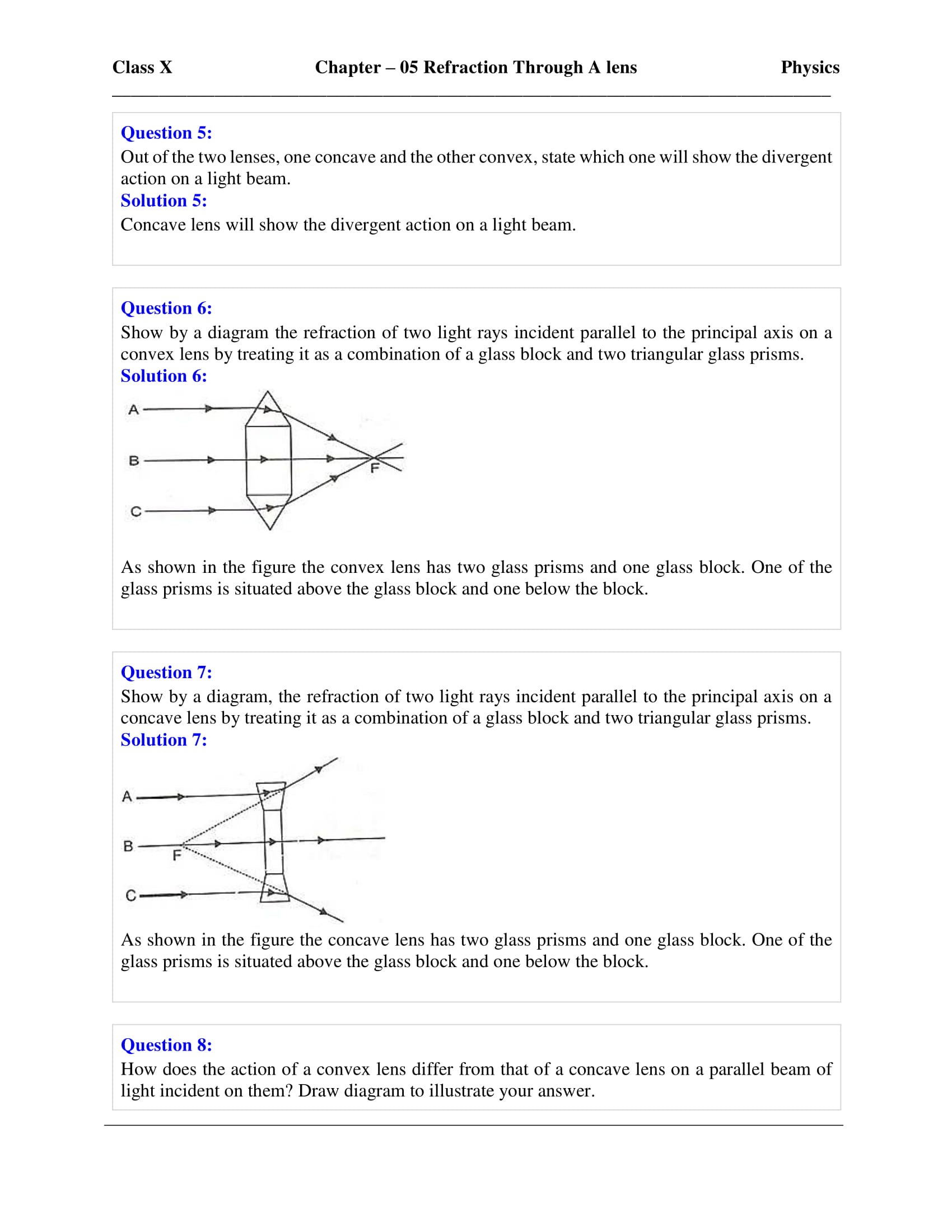

**Show by a diagram the refraction of two light rays incident parallel to the principal axis on a convex lens by treating it as a combination of a glass slab and two triangular glass prisms.**

**Solution:**

The above figure shows the convex lens which has two glass prisms and one glass slab. One glass prism is situated above the glass slab while the other glass prism is below the glass slab.

**Question: 7**

**Show by a diagram the refraction of two light rays incident parallel to the principal axis on a concave lens by treating it as a combination of a glassÂ slabÂ and two triangular glass prisms.**

**Solution:**

The above figure shows the concave lens which has two glass prisms and one glass slab. One of the glass prism is situated above the glass slab while the other is below the glass slab.

**Question: 8**

**How does the action of the convex lens differ from that of a concave lens on a parallel beam of light incident on them? Draw diagrams to illustrate your answer.**

**Solution:**

When a parallel beam of light is incident on a convex lens then the prism in the upper part bends the incident ray downwards while the prism in the lower part bends the incident ray upwards. The central part which is a parallel-sided glass slab passes the ray undeviated.

In case of concave lens the upper part of the lens bends the incident ray upwards and lower part bends the incident ray downwards while the central part, which is a parallel sided glass slab, passes the ray undeviated.

**Question: 9**

**Define the term principal axis of a lens.**

**Solution:**

Principal axis is defined as â€˜a line joining the centres of curvature of the two surfaces of the lensâ€™.

**Question: 10**

**Explain the optical centre of a lens with the help of proper diagram(s).**

**Solution:**

Optical centre is a point on the principal axis of the lens such that a ray of light passing through this point emerges parallel to its direction of incidence. It is marked by the letter O in the below figure. The optical centre is thus the centre of the lens.

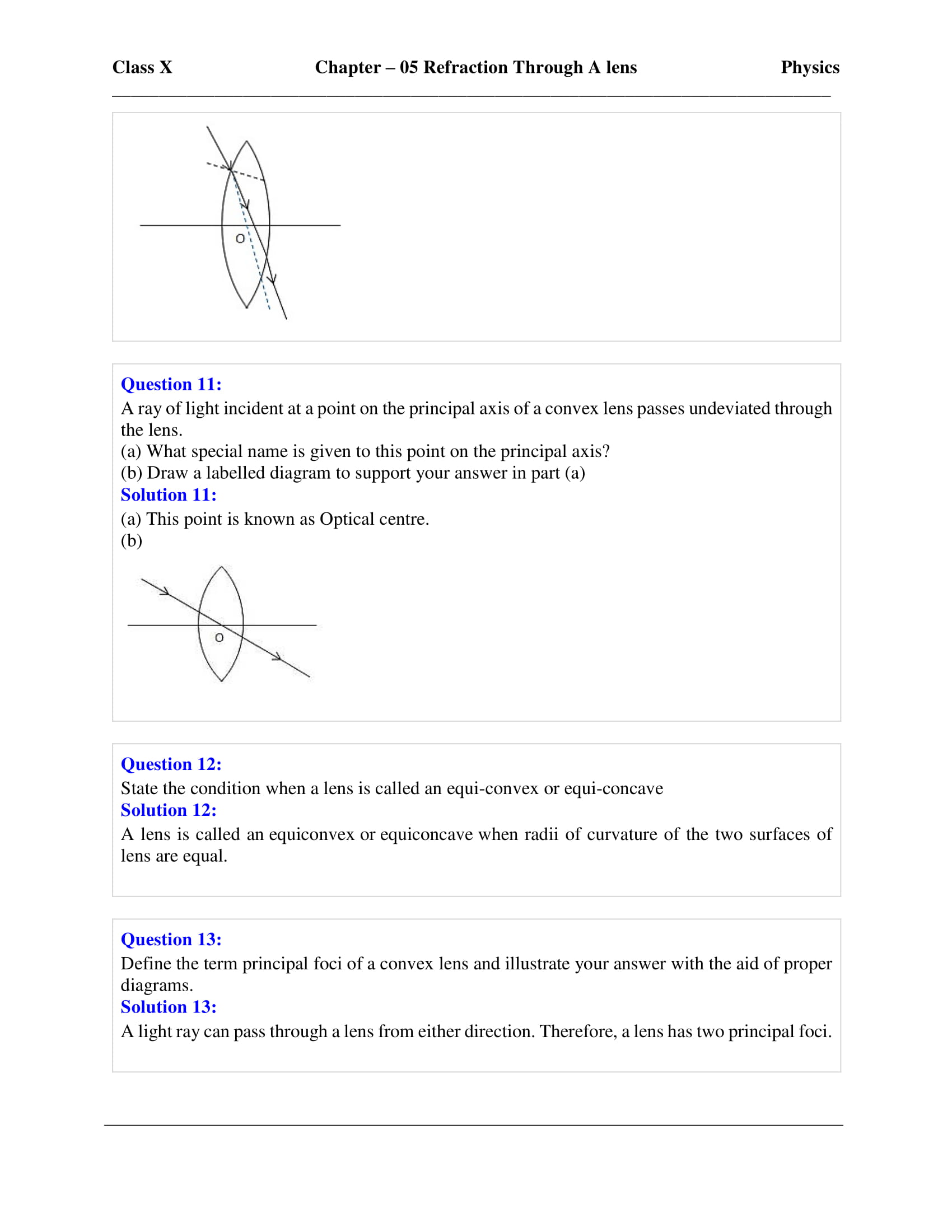

**Question: 11**

**A ray of light incident at a point on the principal axis of a convexÂ lensÂ passesÂ undeviatedÂ through the lens. **

**(a) What special name is given to this point on the principal axis? **

**(b) Draw a labelled diagram to support the answer in part(a).**

**Solution:**

(a) This point on the principal axis is known as Optical centre.

(b)

**Question: 12**

**State the condition when a lens is called an equiconvexÂ orÂ equi-concave.**

**Solution:**

When the radii of curvature of both the surfaces are equal then the lens is called an equiconvex or equi-concave lens.

**Question: 13**

**Define the term principal foci of a convex lens and illustrate your answer with the aid of proper diagrams.**

**Solution:**

A light ray can pass through a lens from either side. Hence, a lens has two principal foci, one on either side of the lens.

For a convex lens, the first focal point is a point F_{1} on the principal axis of the lens such that the rays of light coming from it, after refraction through the lens, become parallel to the principal axis of the lens.

For a convex lens, the second focal point is a point F_{2} on the principal axis of the lens such that the rays of light incident parallel to the principal axis, after refraction from the lens, pass through it.

**Question: 14**

**Define the term principal foci of a concave lens and show them with the help of proper diagrams.**

**Solution:**

A light ray can pass through a lens from either side. Hence, a lens has two principal foci.

For a concave lens, the first focal point is a point F_{1} on the principal axis of a lens such that the incident rays of light appearing to meet at it, after refraction from the lens become parallel to the principal axis of the lens.

For a concave lens, the second focal point is a point F_{2} on the principal axis of the lens such that the rays of light incident parallel to the principal axis, after refraction from the lens, appear to be diverging from this point.

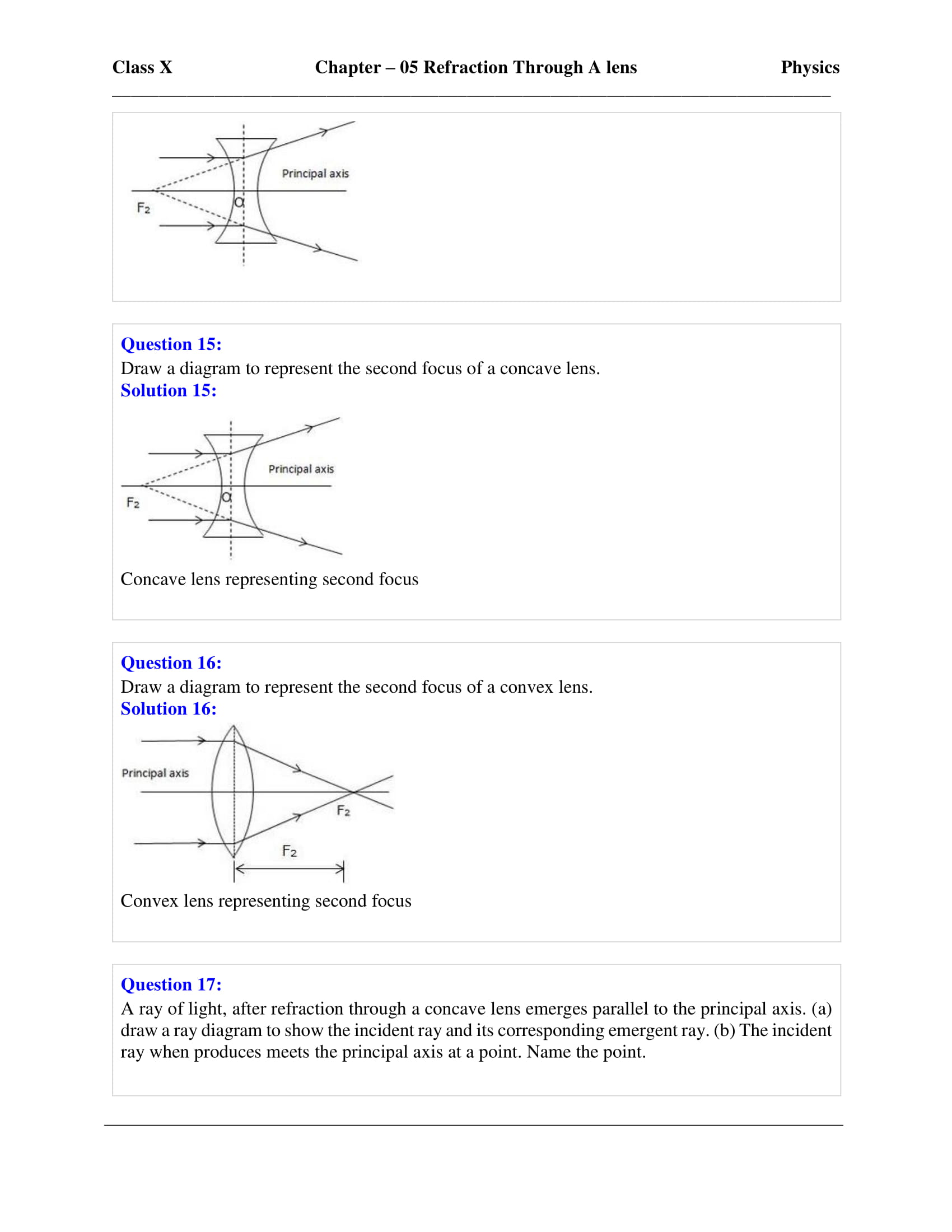

**Question: 15**

**Draw a diagram to represent the second focus of a concave lens.**

**Solution:**

**Question: 16**

**Draw a diagram to represent the second focus of a convex lens.**

**Solution:**

**Question: 17**

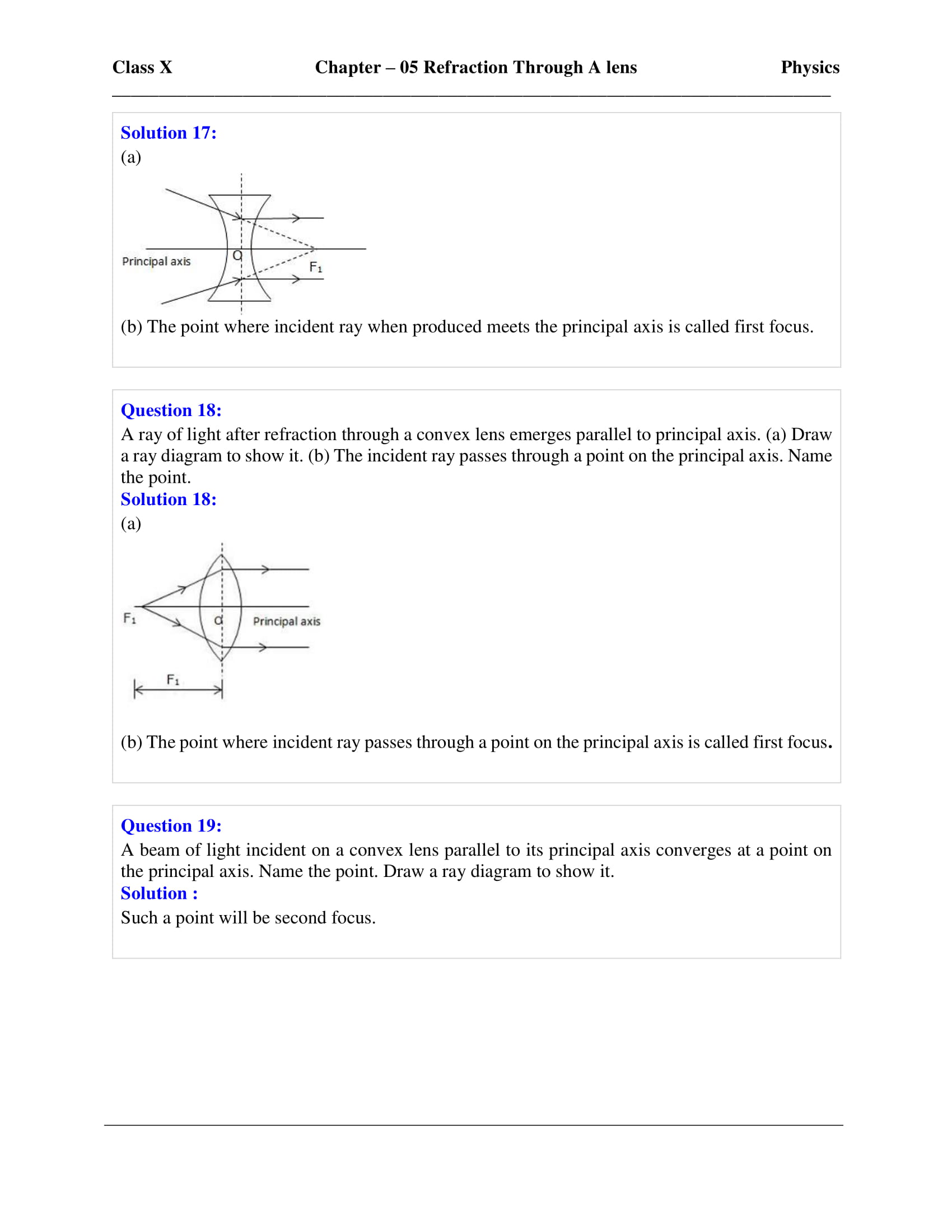

**A ray of light, after refraction through a concave lens emerges parallel to the principal axis.**

**(a) Draw a ray diagram to show the incident ray and its corresponding emergent ray.**

**(b) The incident ray when produced meets the principal axis at a point F. Name the point F.**

**Solution:**

**(a) **

(b) The point F is called first focus when the produced incident ray meets the principal axis at a point F.

**Question: 19**

**A beam of light incident on a convex lens parallel to its principal axis converges at a point F on the principal axis. Name the point F. Draw a ray diagram to show it.**

**Solution:**

This point F is known as the second focus.

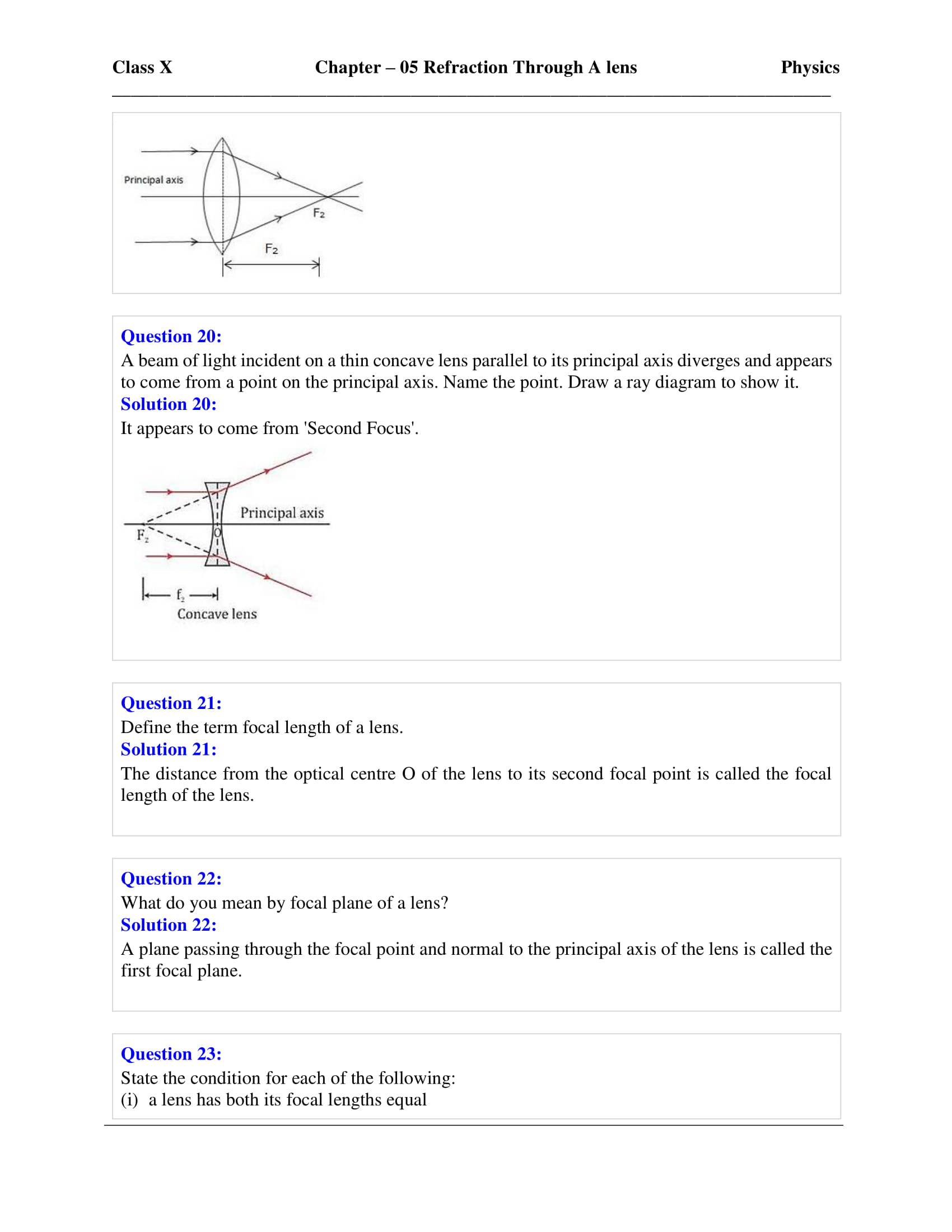

**Question: 20**

**A beam of light incident on a thin concave lens parallel to its principal axis diverges and appears to come from a point F on the principal axis. Name the point F. Draw a ray diagram to show it.**

**Solution:**

This point F appears to come from a second focus

**Question: 21**

**Define the term focal length of a lens.**

**Solution:**

The distance of focus from the optical centre of the lens, is called its focal length.

**Question: 22**

**What do you mean by the focal plane of a lens?**

**Solution:**

A plane normal to the principal axis, passing through the focus, is called the focal plane of a lens.

**Question: 23**

**State the condition for each of the following :**

**(i) aÂ lens has both its focal lengths equal.**

**(ii) aÂ ray passesÂ undeviatedÂ through the lens.**

**Solution:**

(i) Medium is the same on either side of the lens if it has both its focal lengths equal.

(ii) The ray is incident at the optical centre of the lens if it passes undeviated through the lens.

**Question: 24**

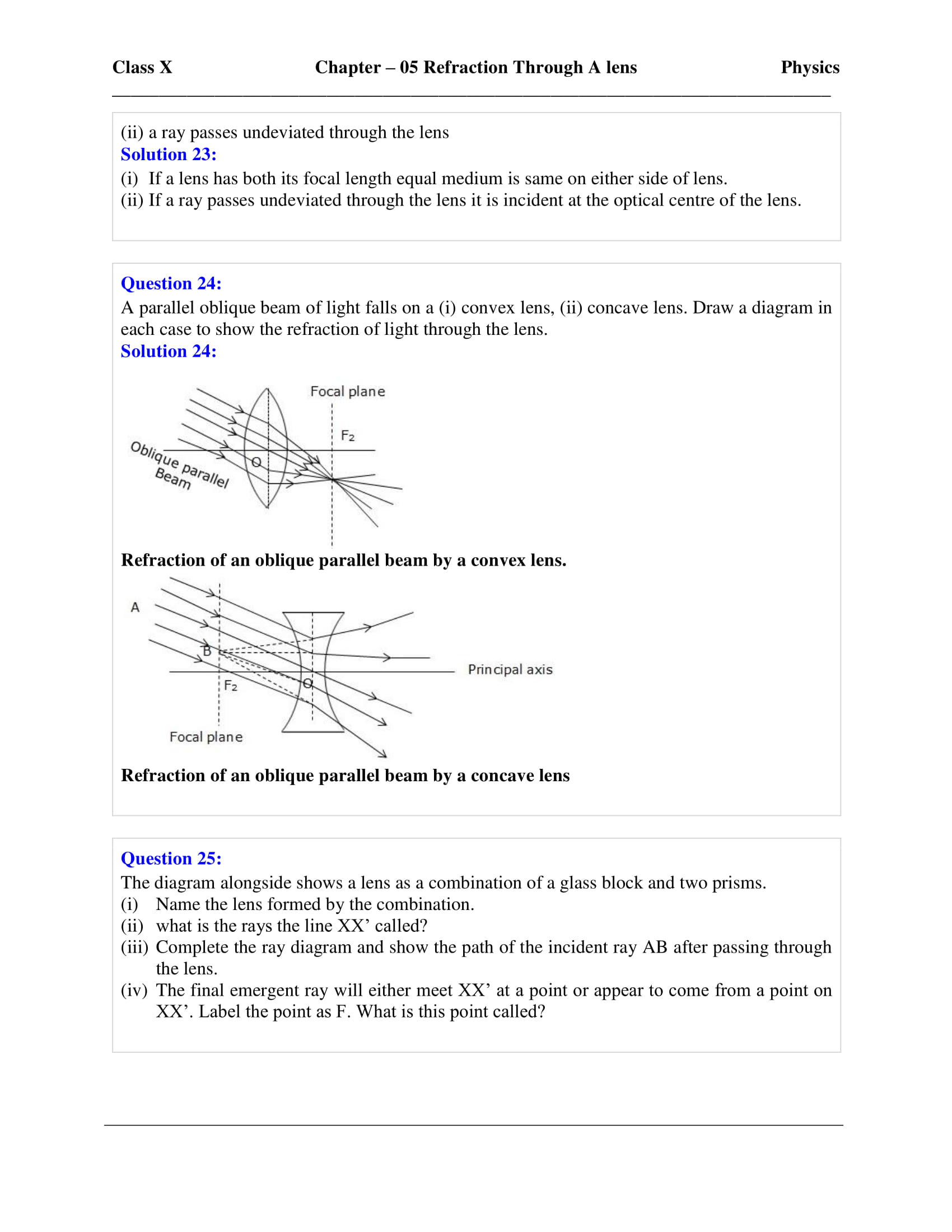

**A parallel oblique beam of light falls on a (i) convex lens, (ii) concave lens. Draw a diagram in each case to show the refraction of light through the lens.**

**Solution:**

Refraction of an oblique parallel beam by a convex lens

Refraction of an oblique parallel beam by a concave lens

**Question: 25**

**The diagram below shows a lens as a combination of a glass block and two prisms.**

**(i)Name the lens formed by the combination.**

**(ii)What is the line XX’ called?**

**(iii)Complete the ray diagram and show the path of the incident ray AB after passing through the lens.**

**(iv)The final emergent ray will either meet XX’ at a point or appear to come from a point on XX’. Label the point as F. What is this point called?**

**Solution:**

(i) The lens formed by the combination is a convex lens

(ii) The line XX’ is called the principal axis.

(iii) The complete ray diagram is shown below

(iv)This point F is called a focal point or focus.

**Question: 26**

**The diagram below shows a lens as a combination of a glass slab and two prisms.**

**(i)Â Name the lens formed by the combination.**

**(ii)Â What is the line XX’ called?**

**(iii)Â Complete the path of the incident ray AB after passing through the lens.**

**(iv)Â The final emergent ray either meets XX’ at a point or appears to come from a point on XX’. Label it as F. What is this point called?**

**Solution:**

(i) The combination forms a concave lens.

(ii) The line XX’ is called the principal axis.

(iii) Complete diagram is shown below

(iv) The point F is called a focal point or focus.

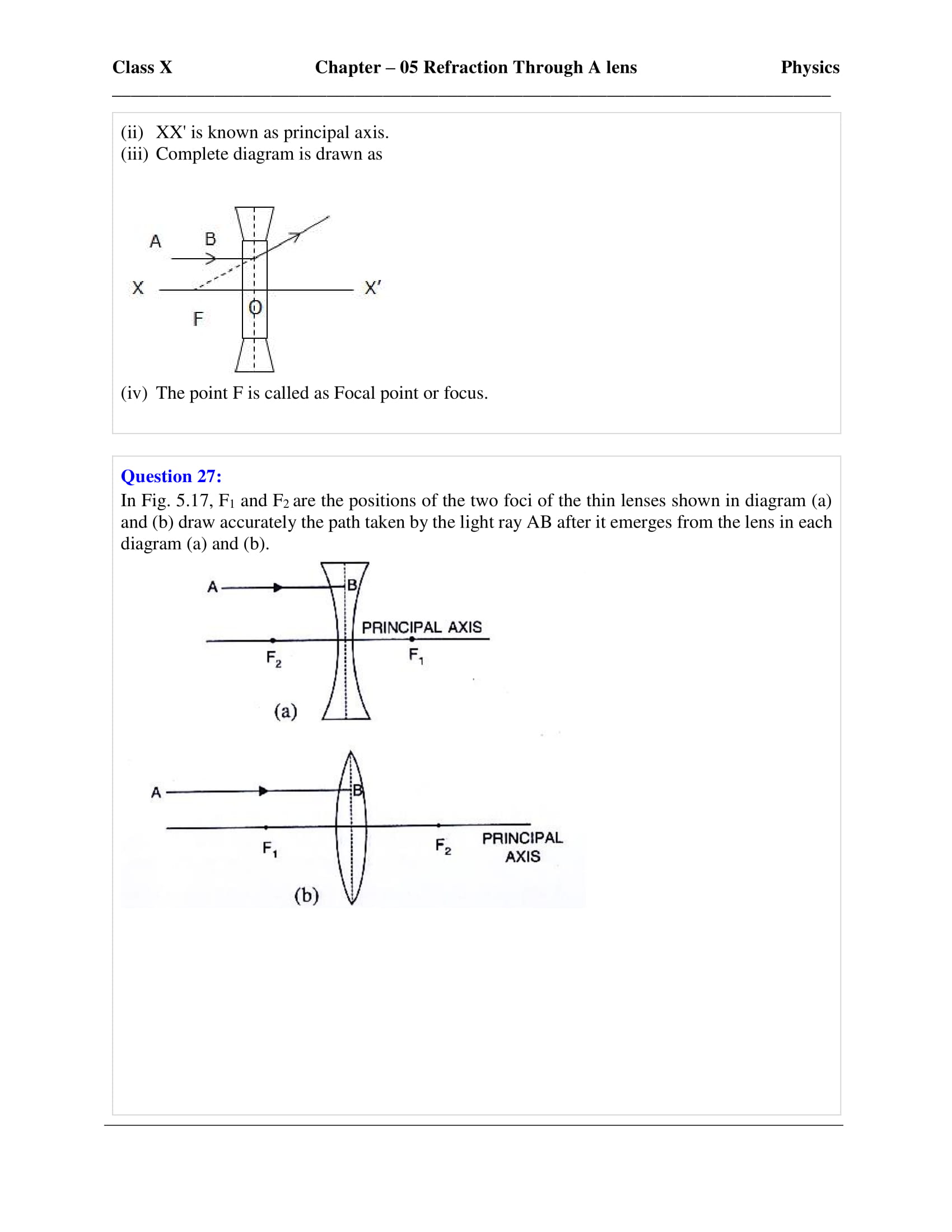

**Question: 27**

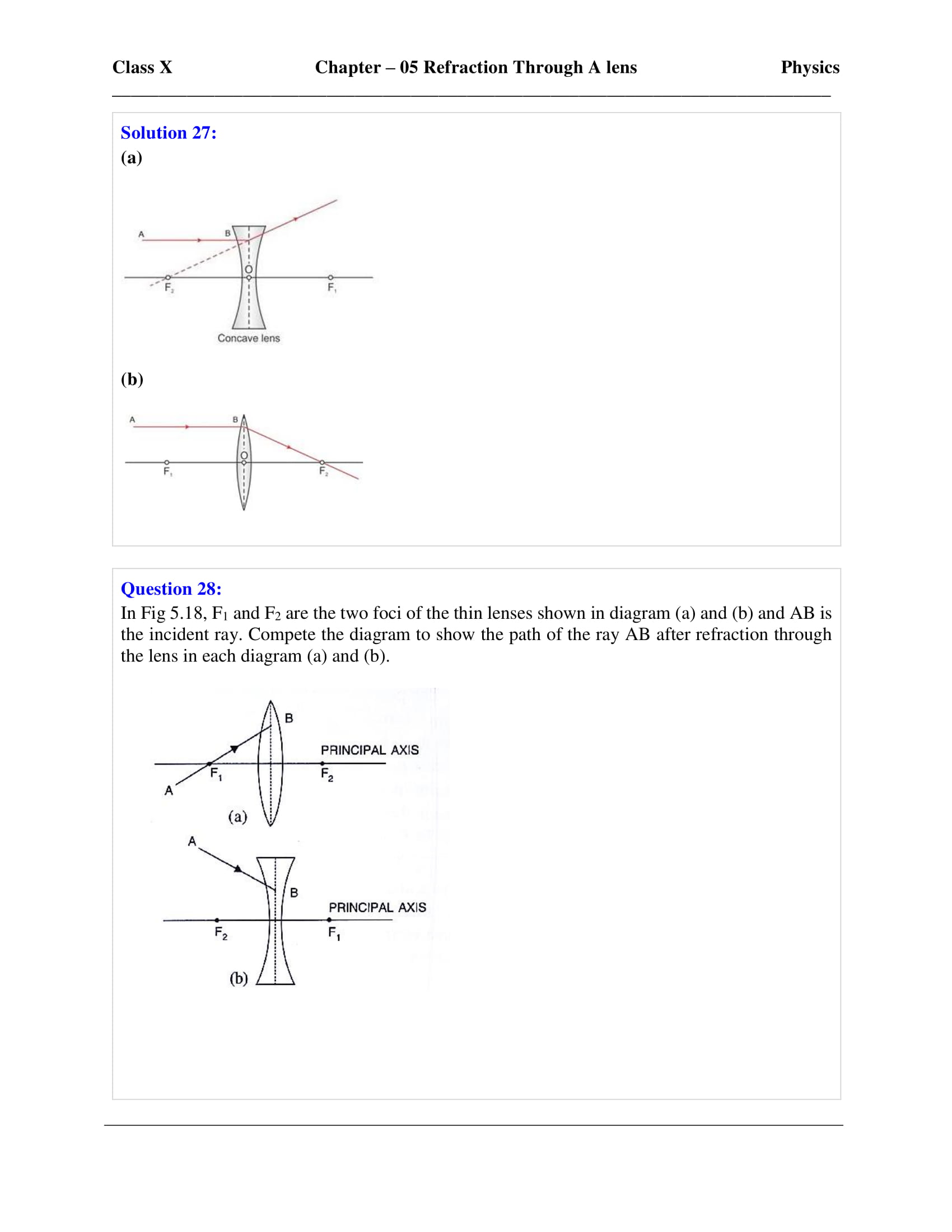

**In Fig. (a) and (b), F _{1}Â and F_{2}Â are the positions of the two foci of the thin lenses. Draw the path taken by the light ray AB after it emerges from each lens.**

**Solution:**

(a)

(b)

**Question: 28**

**In Fig. (a) and (b), F _{1}Â and F_{2}Â are the two foci of the thin lenses and AB is the incident ray. Complete the diagram to show the path of the ray AB after refraction through the lens.**

**Solution:**

**(a)**

(b)

**Question: 29**

**Complete the following sentences :**

**(a)If half part of a convex lens is covered, the focal length __________ change, but the intensity of image _________.**

**(b)A convex lens is placed in water. Its focal length will ________.**

**(c)The focal length of a thin convex lens is _________ than that of a thick convex lens.**

**Solution:**

(a) If half part of a convex lens is covered, the focal length does not change, but the intensity of the image decreases.

(b) A convex lens is placed in water. Its focal length will increase.

(c) The focal length of a thin convex lens is more than that of a thick convex lens.

**MULTIPLE CHOICE TYPE**

**Question: 1**

**A ray of light after refraction through a lens emerges parallel to the principal axis of the lens. The incident ray either passes through :**

**(a) its optical centre
(b) its first focus
(c) its second focus**

**(d) it’s centre of curvature of the first surface**

**Solution:**

The incident ray passes through (b) its first focus

**Question: 2**

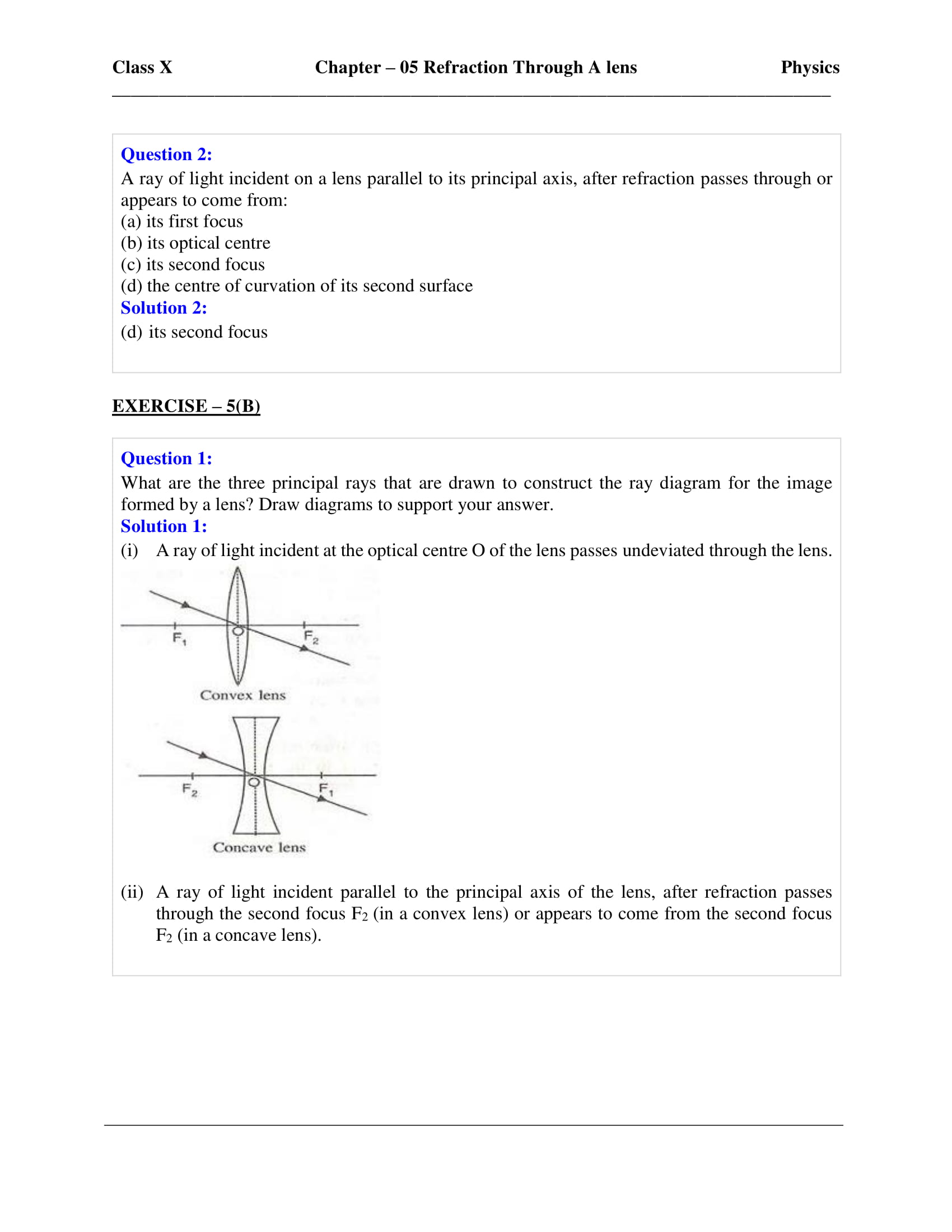

**A ray of light incident on a lens parallel to its principal axis, after refraction passes through or appears to come from:
(a) Its first focus
(b) Its optical entre
(c) Its second focus
(d)The centre of curvature of its second surface**

**Solution:**

The ray of light after refraction passes through or appears to come from its second focus.

Exercise 5(b) page no: 119

**Question: 1**

**What are the three principal rays that are drawn to construct the ray diagram for the image formed by a lens? Draw diagram to support your answer.**

**Solution:**

(i) A ray of light incident at the optical centre O of the lens passes undeviated through the lens.

(ii) A ray of light incident parallel to the principal axis of the lens, after refraction passes through the second focus F_{2} (in a convex lens) or appears to come from the second focus F_{2} (in a concave lens)

(iii) A ray of light passing through the first focus F_{1} (in a convex lens) or directed towards the first focus F_{1} (in a concave lens), emerges parallel to the principal axis after refraction

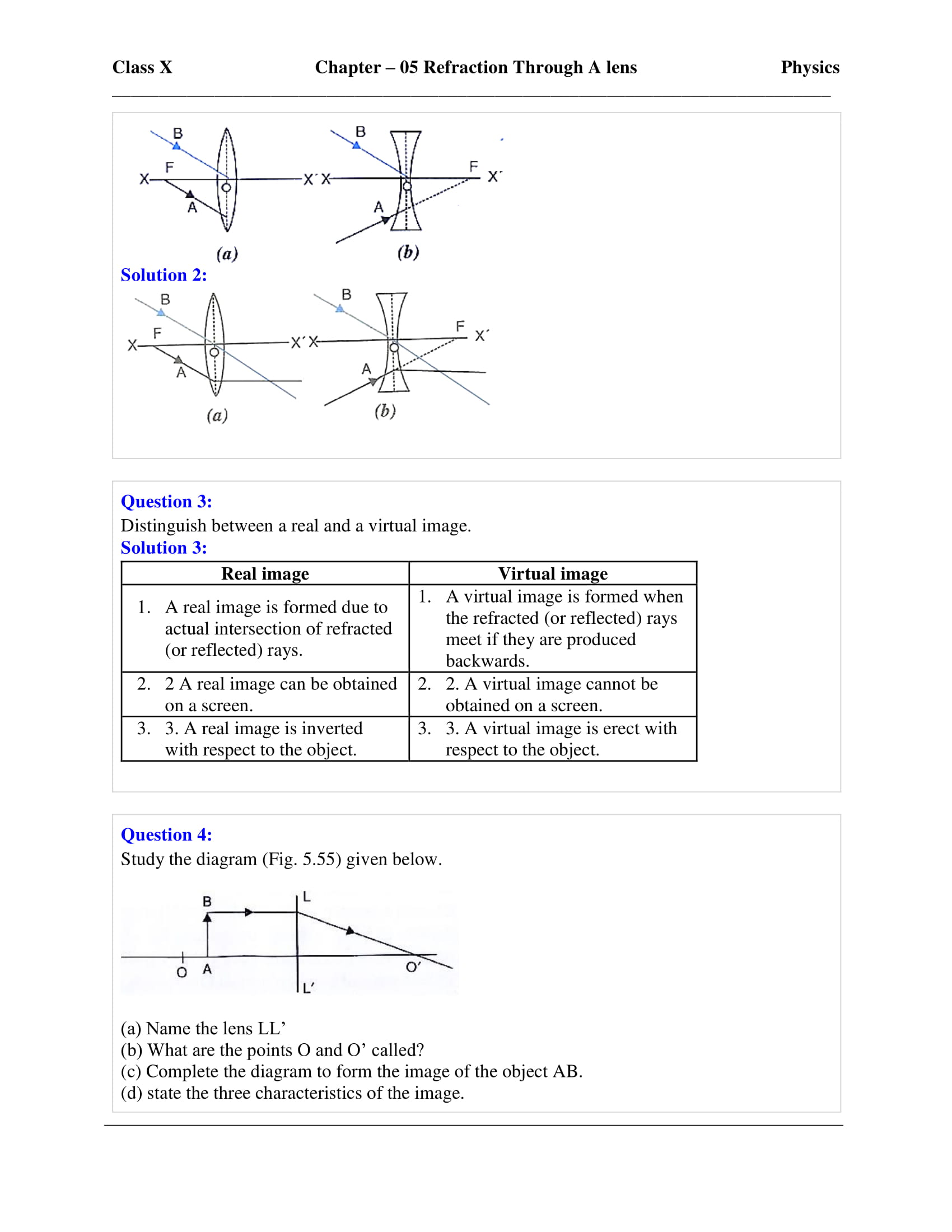

**Question: 2**

**In the diagrams below, XX’ represents the principal axis, O the optical centre and F the focus of the lens. Complete the path of the rays A and B as they emerge out of the lens.**

**Solution:**

**Question: 3**

**Where must a point source of light be placed in front of a convex lens so as to obtain a parallel beam of light?**

**Solution:**

The rays of light after being refracted through the convex lens obtain a parallel beam of light when a source of light is placed at the first focal point i.e the focal point on the left of the optical centre of the convex lens.

**Question: 4**

**Distinguish between a real and a virtual image.**

**Solution:**

Real image | Virtual image |

A real image is formed due to the actual intersection of the rays refracted by the lens | A virtual image is formed when the rays refracted by the lens appear to meet if they are produced backwards |

A real image can be obtained on a screen | A virtual image cannot be obtained on a screen |

A real image is inverted with respect to the object | A virtual image is erect with respect to the object |

**Question: 5**

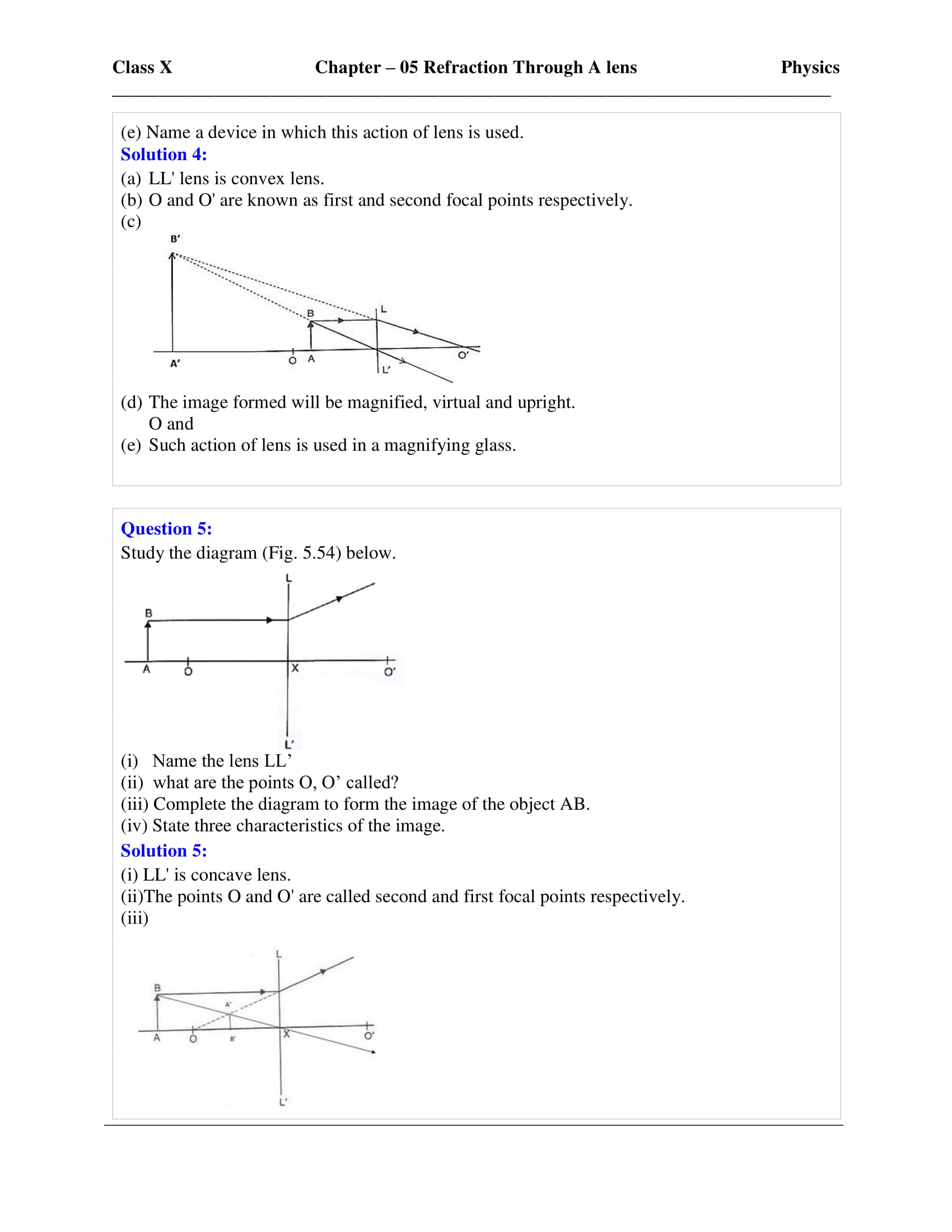

**Study the diagram given below.**

**(a)Â Name the lens LL’.**

**(b)Â What are the points O and O’ called?**

**(c)Â Complete the diagram to form the image of the object AB.**

**(d) State the three characteristics of the image.Â Â Â Â **

**(e)Â Name a device in which this action of lens is used.**

**Solution:**

(a) LL’ is a convex lens

(b) O and O’ are called as first and second focal points

(c) The complete diagram is shown below

(d) The three characteristics of the image are magnified, virtual and upright.

(e) This action of lens is used in the magnifying glass

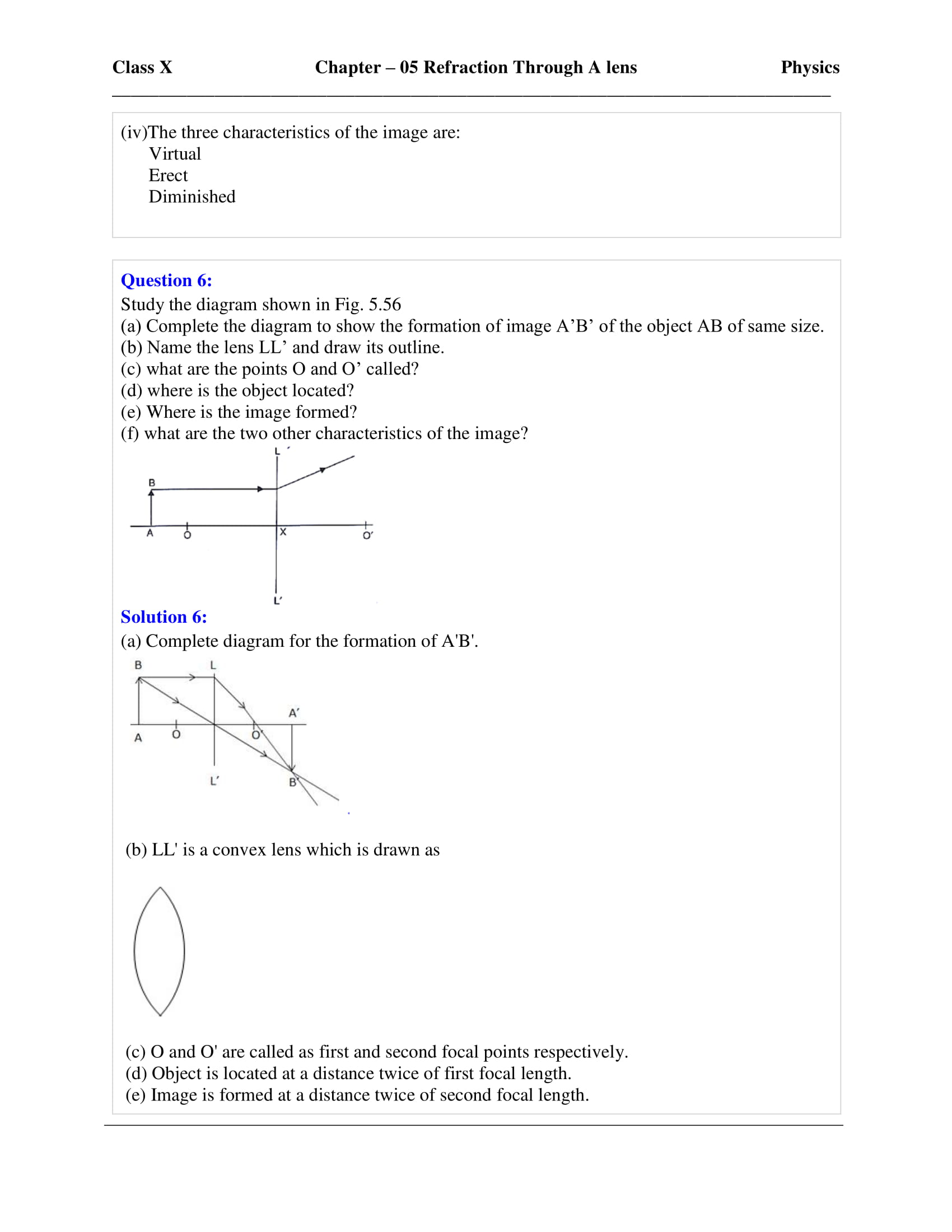

**Question: 6**

**Study the diagram below.**

**(i)Name the lens LL’.**

**(ii)What are the points O and O’ called?**

**(iii)Complete the diagram to form the image of the object AB.**

**(iv)State three characteristics of the image.**

**Solution:**

(i) LL’ is a concave lens

(ii) The points O and O’ are called the second and first focal point.

(iii)

(iv) The three characteristics of the image are virtual, erect and diminished.

**Question: 7**

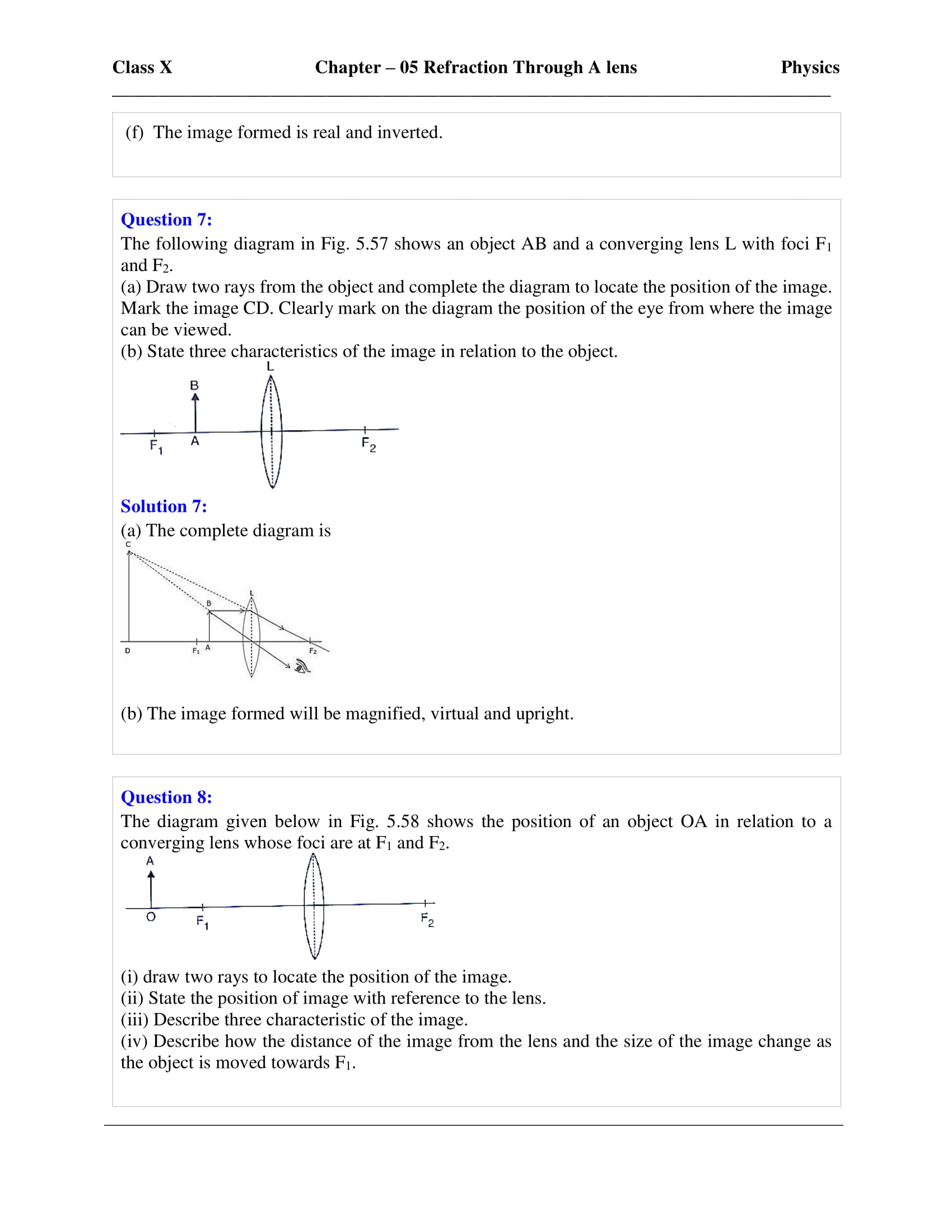

**The following diagram in Fig. shows an object AB and a converging lens L with foci F _{1}Â and F_{2}.**

**(a) Draw two rays from the object AB and complete the diagram to locate the position of the image CD. Also mark on the diagram the position of eye from where the image can be viewed.Â Â **

**(b) State three characteristics of the image in relation to the object.**

**Solution:**

(a) The complete diagram is

(b) The three characteristics of the image are magnified, virtual and upright.

**Question: 8**

**The diagram given below in fig. shows the position of an object OA in relation to a converging lens L whose foci are at F _{1}Â and F_{2}.**

**(i) Draw two rays to locate the position of the image.**

**(ii) State the position of the image with reference to the lens.**

**(iii) Describe the three characteristics of the image.**

**(iv) Describe how the distance of the image from the lens and the size of the image change as the object move towards F _{1}.**

**Solution:**

**(i)**

(ii) Images position will be more than twice the focal length of the lens

(iii) The three characteristics of this image are magnified, real and inverted.

(iv) The image will shift away from F_{2} as the object move towards F_{1} and it is magnified. The image will form at infinity and it is highly magnified at F_{1}. Between F_{1} and optical centre, the image will form on the same side of the object and will be magnified.

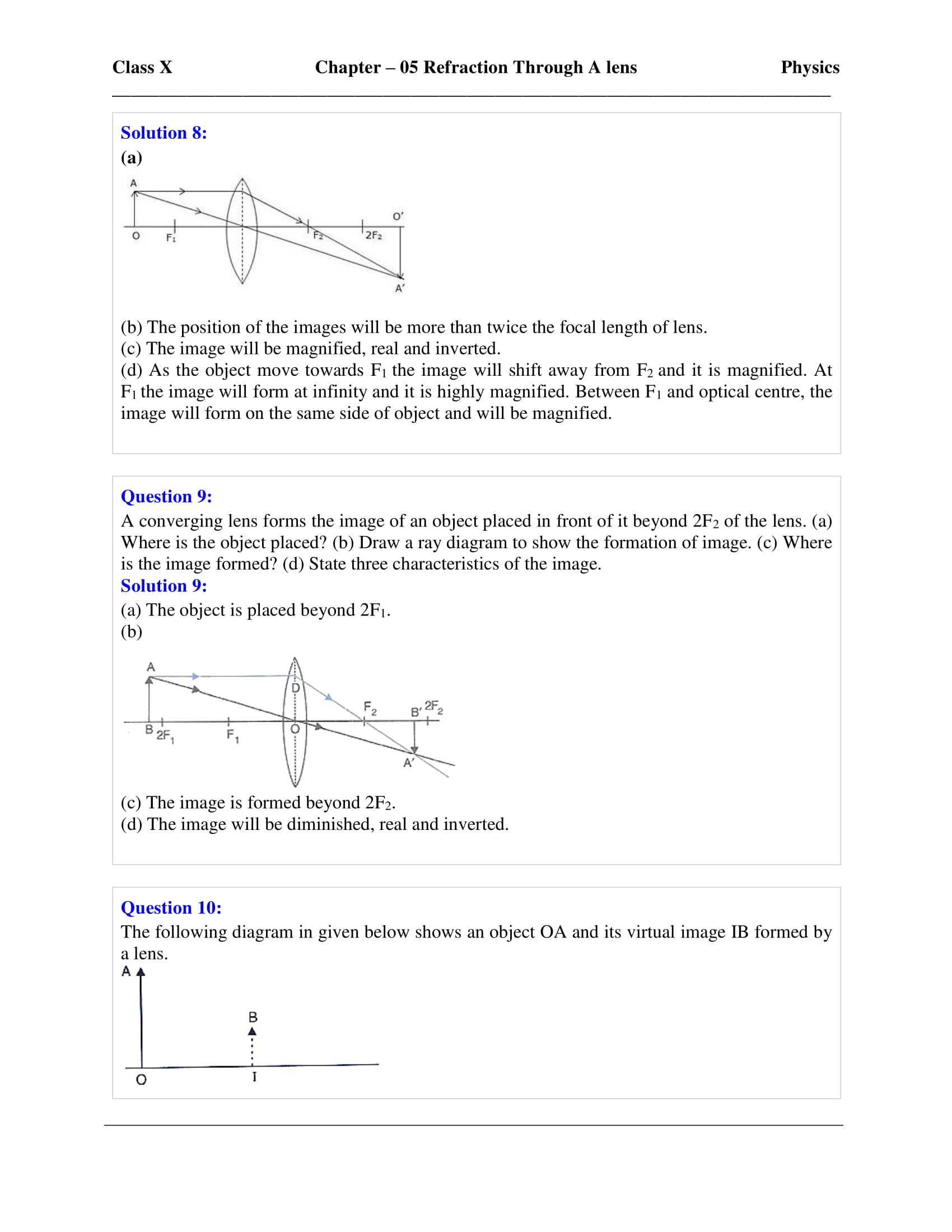

**Question: 9**

**A converging lens forms the image of an object placed in front of it, beyond 2F _{2}Â of the lens.**

**(a) Where is the object placed? (b) Draw a ray diagram to show the formation of an image. (c) State its three characteristics of the image.**

**Solution:**

(a) The object is placed beyond 2F_{1}

(b)

The image is formed beyond 2F_{2}

(c) The three characteristics of the image is real, inverted and diminished.

**Question: 10**

**A convex lens forms an image of an object equal to the size of the object. (a) Where is the object placed in front of the lens? (b) Draw a diagram to illustrate it. (c) State two more characteristics of the image.**

**Solution:**

(a) The object is placed at a distance equal to twice the focal length of the lens.

(b)

(c) The image formed is real and inverted

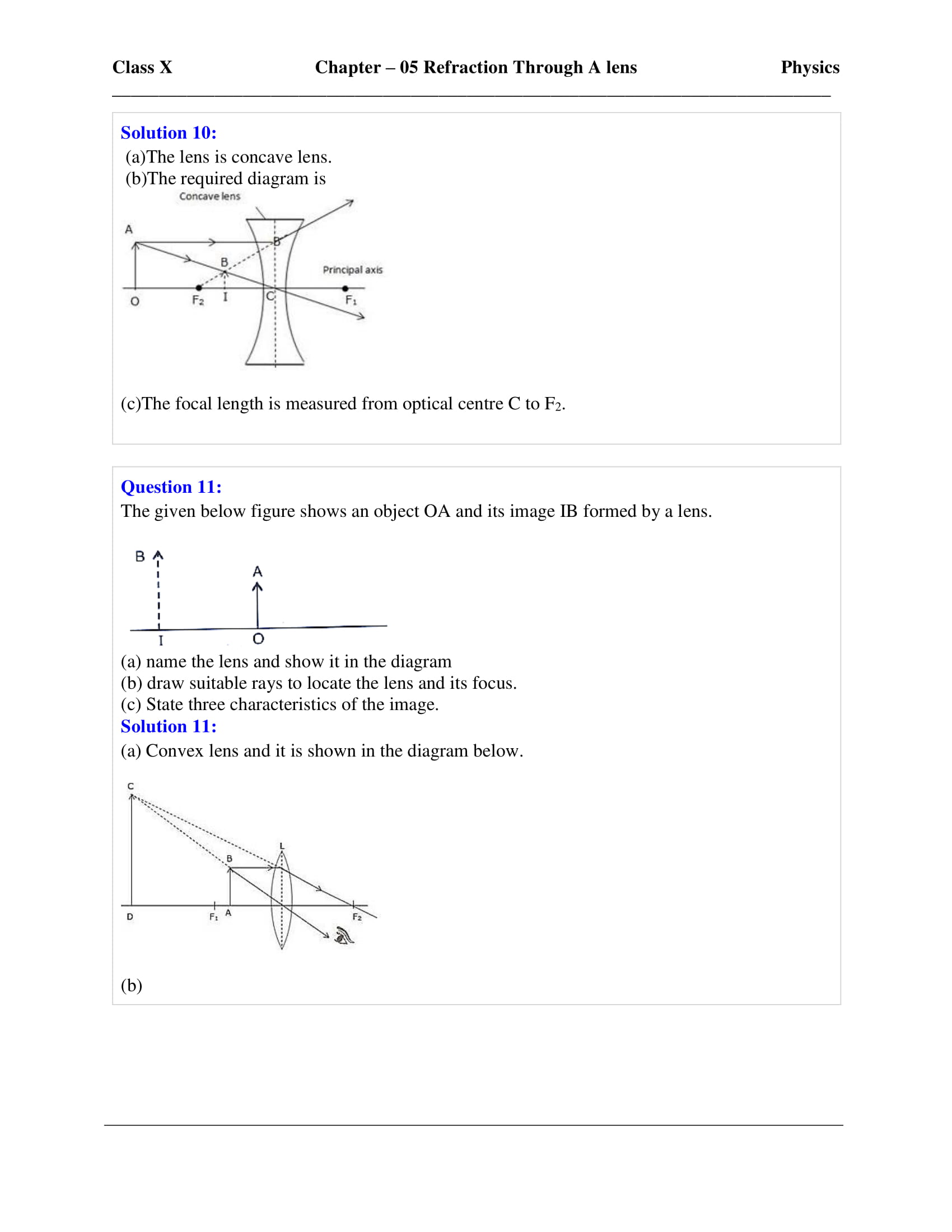

**Question: 11**

**A lens forms an erect, magnified and virtual image of an object.**

**(a) Name the kind of lens.**

**(b) Where is the object placed in relation to the lens?**

**(c) Draw a ray diagram to show the formation of the image.**

**(d) Name the device which uses this principle.**

**Solution:**

(a) Convex lens

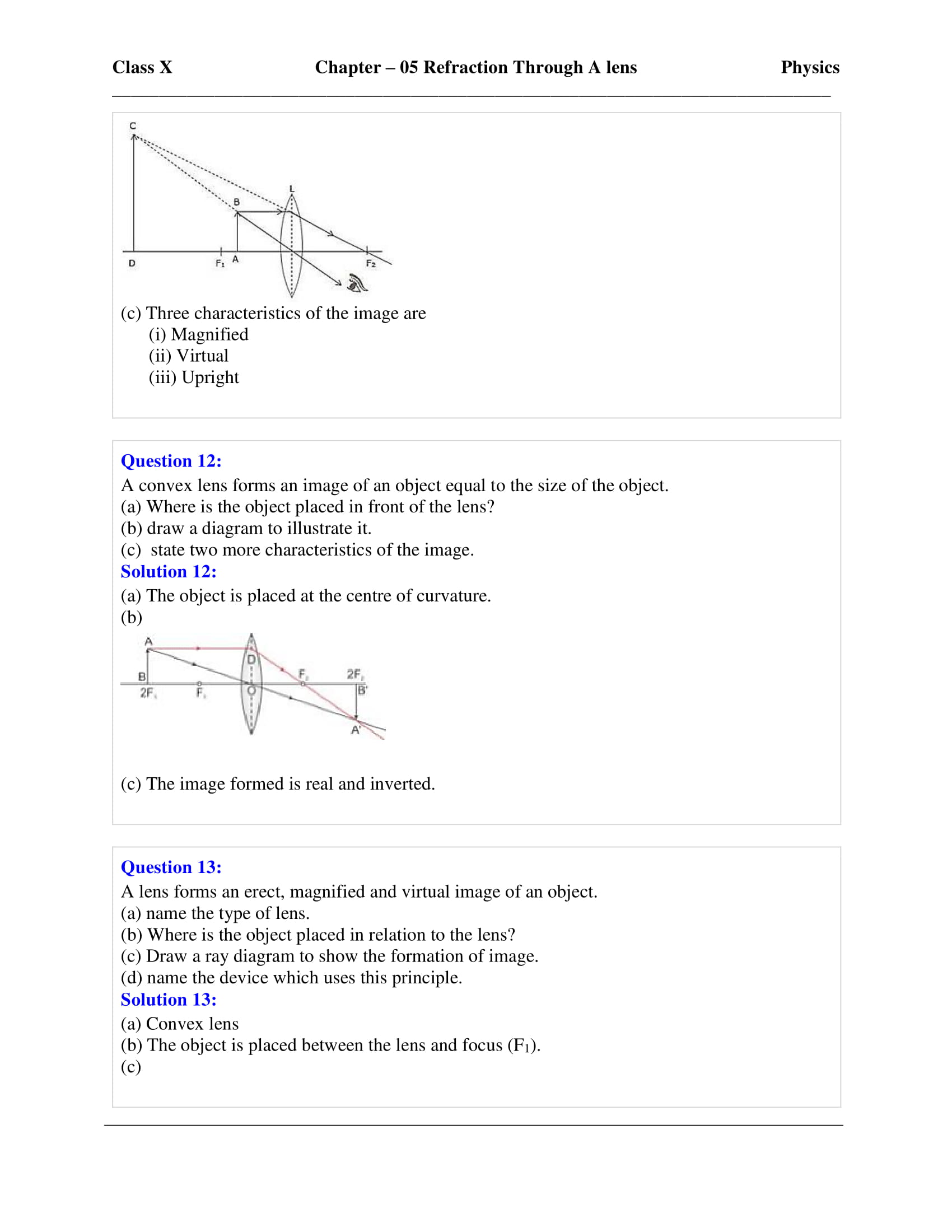

(b) The object is placed between the lens and focus (F_{1})

(c)

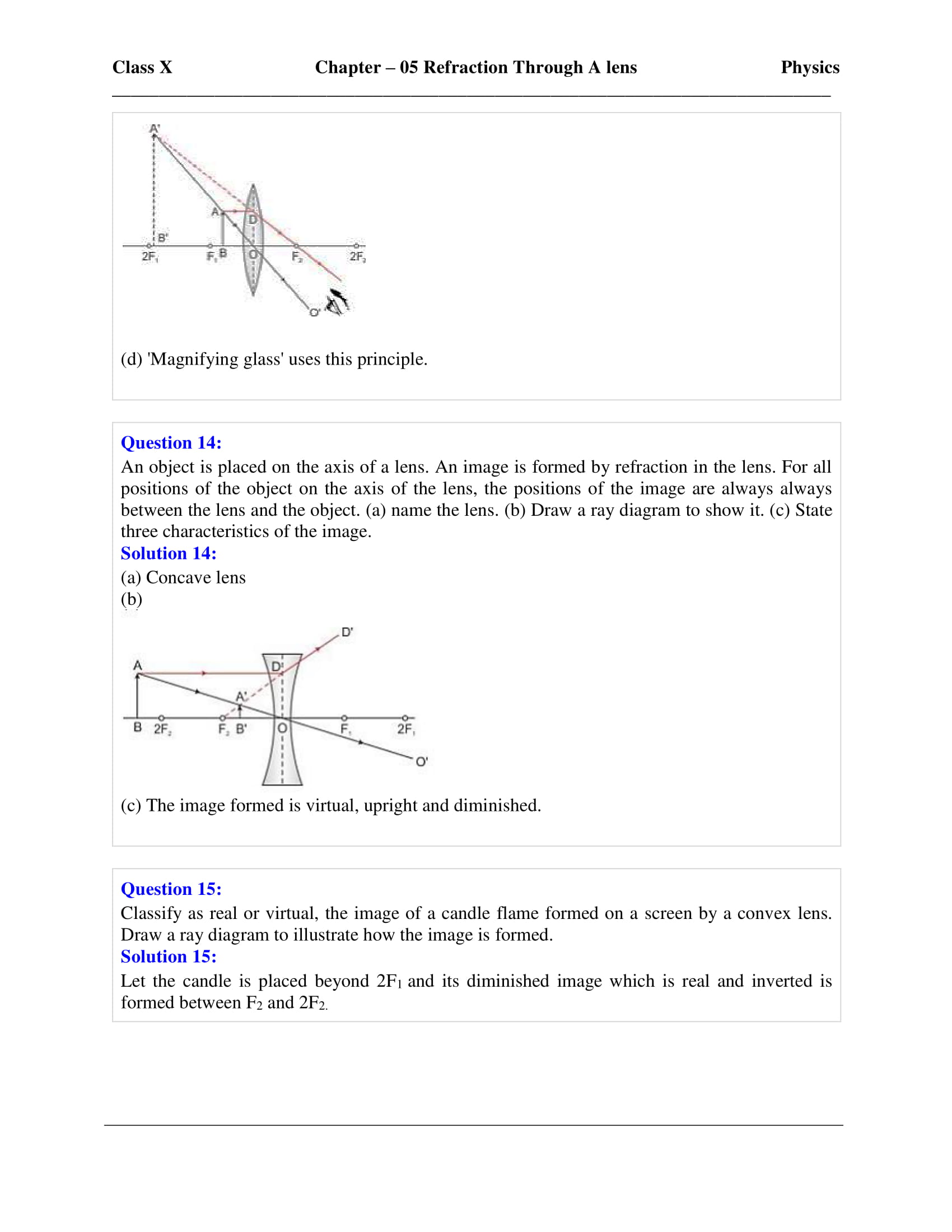

(d) The device which uses this principle is a magnifying glass

**Question: 12**

**A lens always forms an image between the object and the lens. (a)Â nameÂ the lens. (b) Draw a ray diagram to shown the formation of such an image. (c)Â stateÂ three characteristics of the image.**

**Solution:**

(a) The lens that forms the image between the object and itself is a concave lens.

(b) The below figure shows the ray diagram

(c) The three characteristics of the image are virtual, erect and diminished.

**Question: 13**

**Classify as real or virtual, the image of a candle flame formed on a screen by a convex lens. Draw a ray diagram to illustrate how the image is formed.**

**Solution:**

Let the object is placed beyond 2F_{1} and its diminished image formed between F_{2} and 2F_{2} which is real and inverted.

Here the object is AB and its real and inverted image is formed between F_{2} and 2F_{2}

**Question: 14**

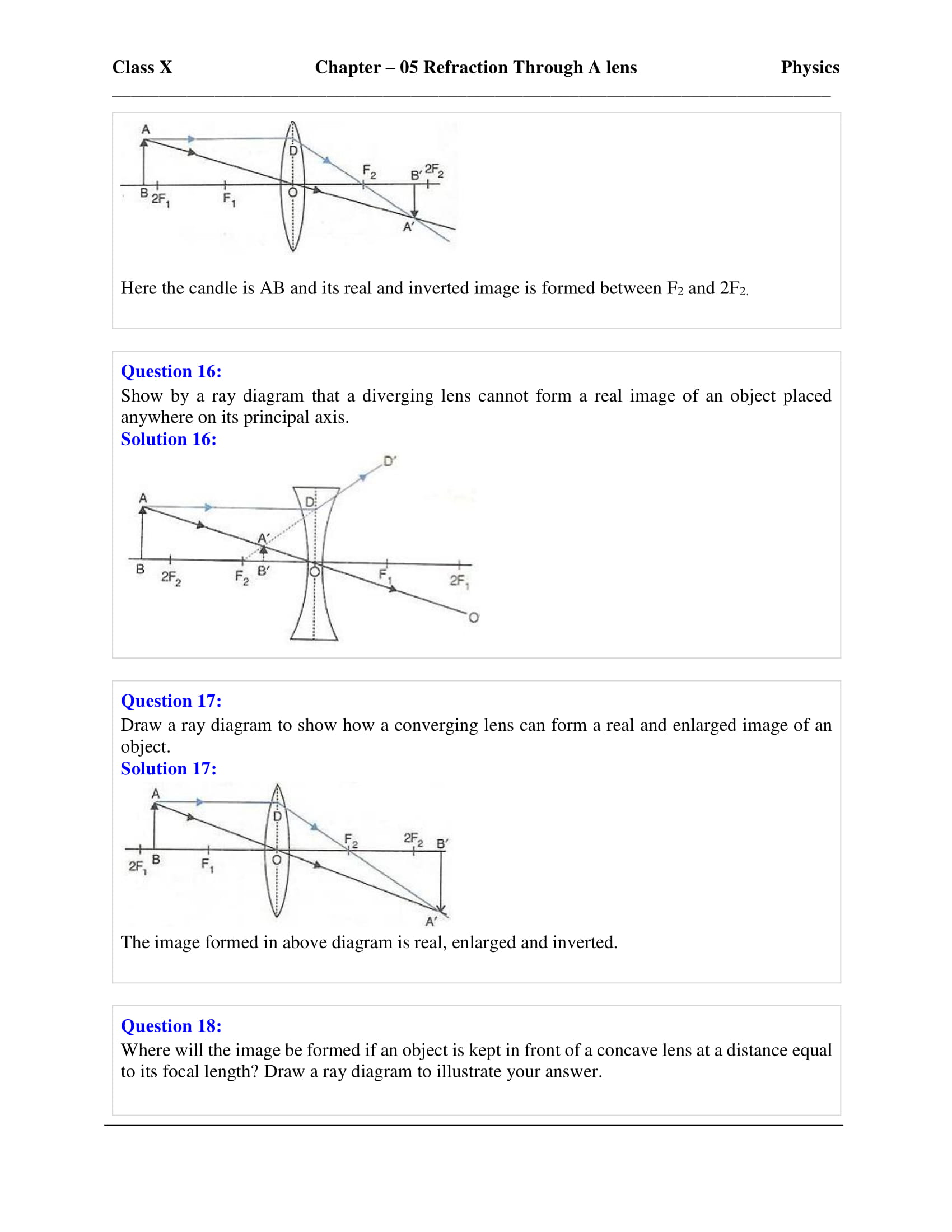

**Show by a ray diagram that a diverging lens cannot form a real image of an object placed anywhere on its principal axis.**

**Solution:**

**Question: 15**

**Draw a ray diagram to show how a converging lens can form a real and enlarged image of an object.**

**Solution:**

The above figure shows the image formed is real, enlarged and inverted.

**Question: 16**

**A lens forms an upright and diminished image of an object placed at its focal point. Name the lens and draw a ray diagram to show the formation of an image.**

**Solution:**

In a concave lens, the lens forms an upright and diminished image of an object placed at its focal point.

**Question: 17**

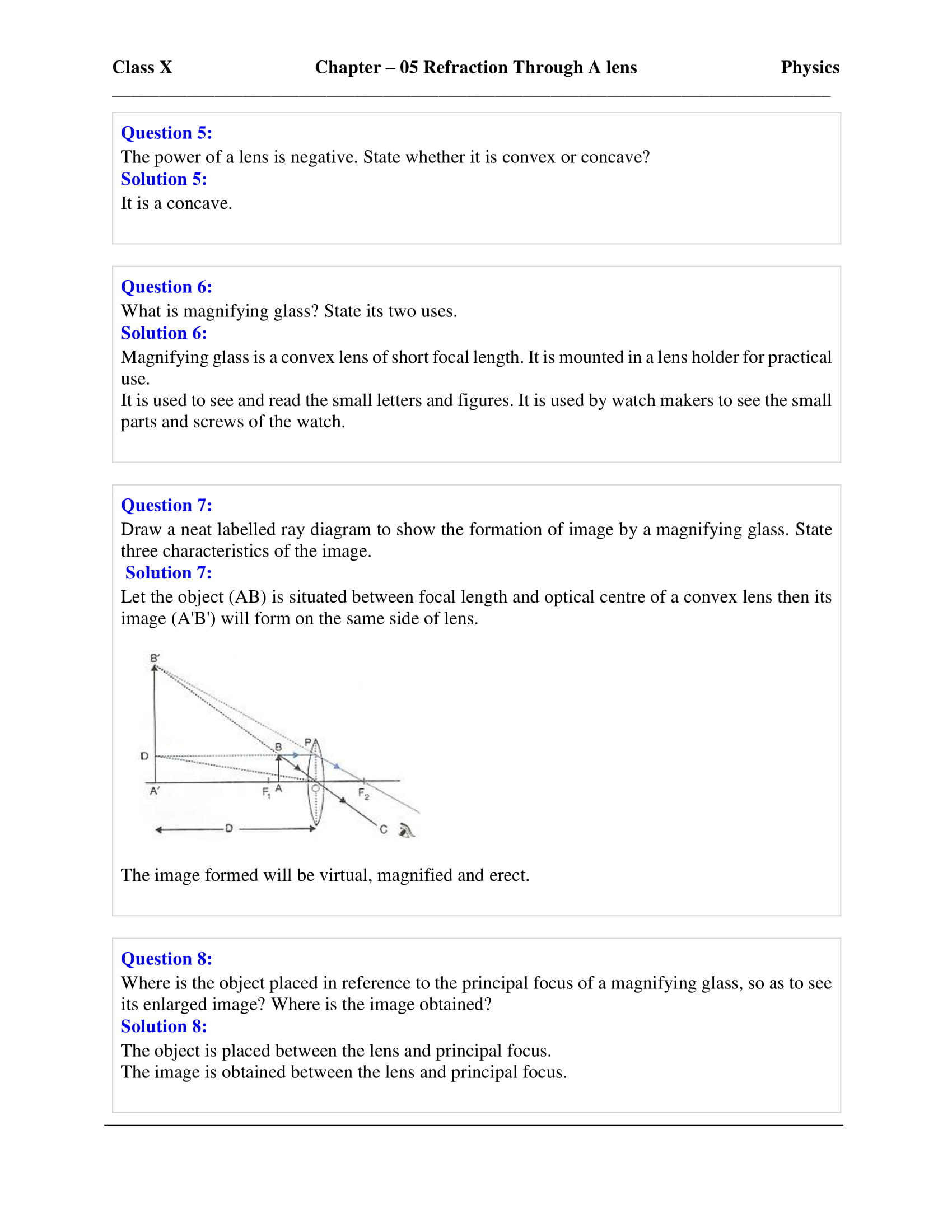

**Draw a ray diagram to show how a converging lens is used as a magnifying glass to observe a small object. Mark on your diagram the foci of the lens and the position of the eye.**

**Solution:**

The object is placed between the focal point F_{1} and convex lens and its image is formed at the same side of the lens which is enlarged.

Hence, this lens can be used as a magnifying lens.

**Question: 18**

**Draw a ray diagram to show how a converging lens can form an image of the sun. Hence give a reason for the term ‘burningÂ glass’Â for a converging lens used in this manner.**

**Solution:**

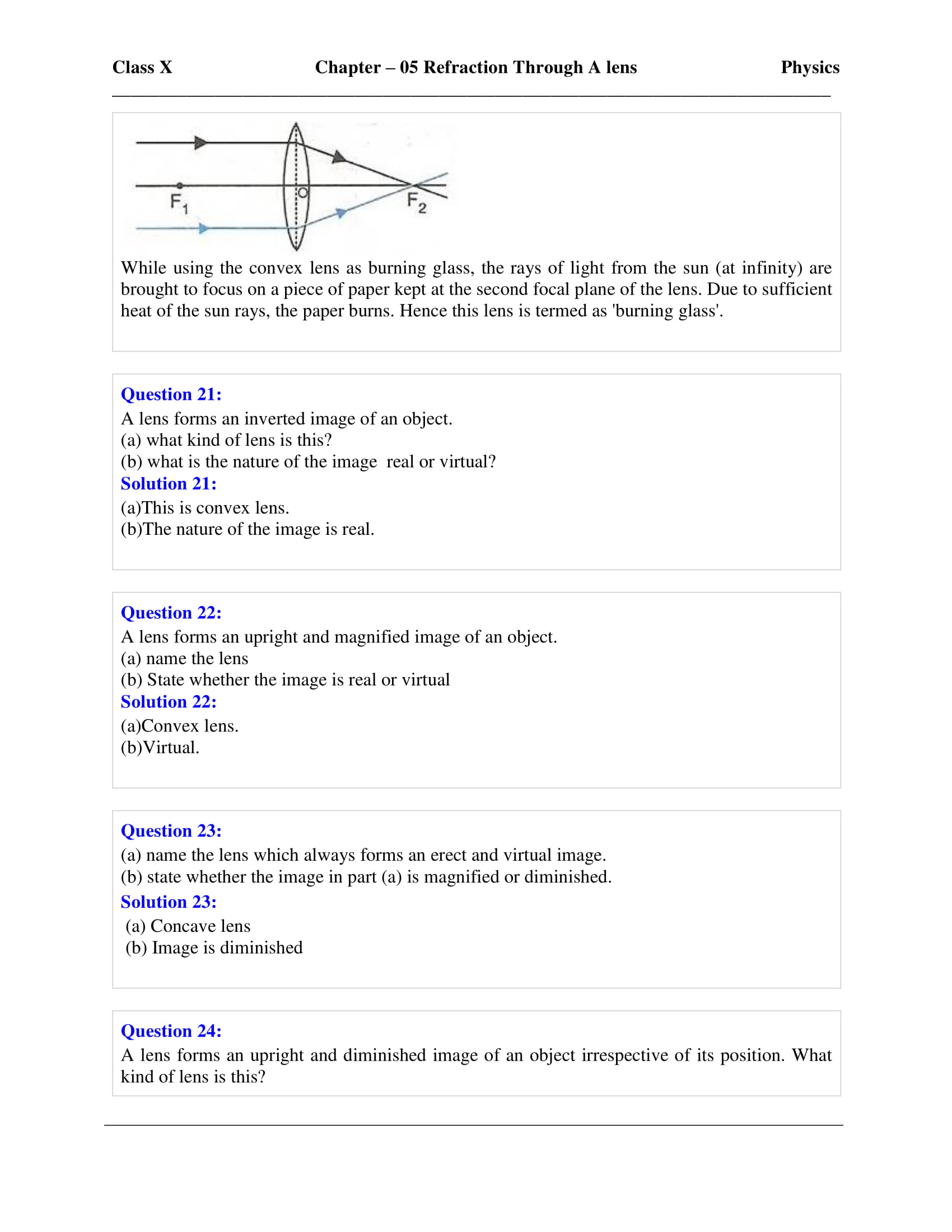

The Sun is at infinity so convex lens forms its image at the second focal point which is real and very much diminished in size.

The rays of light from the sun converge to a single point called the focus of the lens. This concentrated image of the Sun burns the paper kept below the lens. Hence, the term burning glass is used for the lens.

**Question: 19**

**A lens forms an inverted image of an object.**

**(a)Â Name the kind of lens.**

**(b) StateÂ the nature of the image whether real or virtual?**

**Solution:**

(a) This lens is a convex lens

(b) The nature of the imaged is real

**Question: 20**

**A lens forms an upright and magnified image of an object.**

**(a)Name the lens.**

**(b)Draw a labelled ray diagram to show the image formation.**

**Solution:**

(a) The lens used here is a convex lens

(b)

**Question: 21**

**(a)Name the lens which always forms an erect and virtual image.**

**(b)State whether the image in part (a) is magnified or diminished?**

**Solution:**

(a) The lens used here is a concave lens

(b) The image is diminished

**Question: 22**

**Can a concave lens form an image of size two times that of the object? Give reason?**

**Solution:**

No, concave lens cannot form an image of size two times that of the object because it diverges the rays incident on it and only produces a diminished image.

**Question: 23**

**Give two characteristics of the image formed by a concave lens.**

**Solution:**

The image formed by a concave lens is virtual and diminished.

**Question: 24**

**Give two characteristics of the virtual image formed by a convex lens.**

**Solution:**

The virtual image formed by a convex lens will be erect and magnified.

**Question: 25**

**In each of the following cases, where must an object be placed in front of a convex lens so that the image formed is**

**(a)at infinity,**

**(b)of same size as the object,**

**(c)inverted and enlarged,**

**(d)uprightÂ and enlarged?**

**Solution:**

(a) At focus,

(b) At 2F,

(c) Between F and 2F,

(d) Between optical centre and focus.

**Question: 26**

**Complete the following table:**

Type of lens |
Position of object |
Nature of image |
Size of image |

Convex |
Between the optical centre and focus |
||

Convex |
At focus |
||

Concave |
At infinity |
||

Concave |
At any distance |

**Solution:**

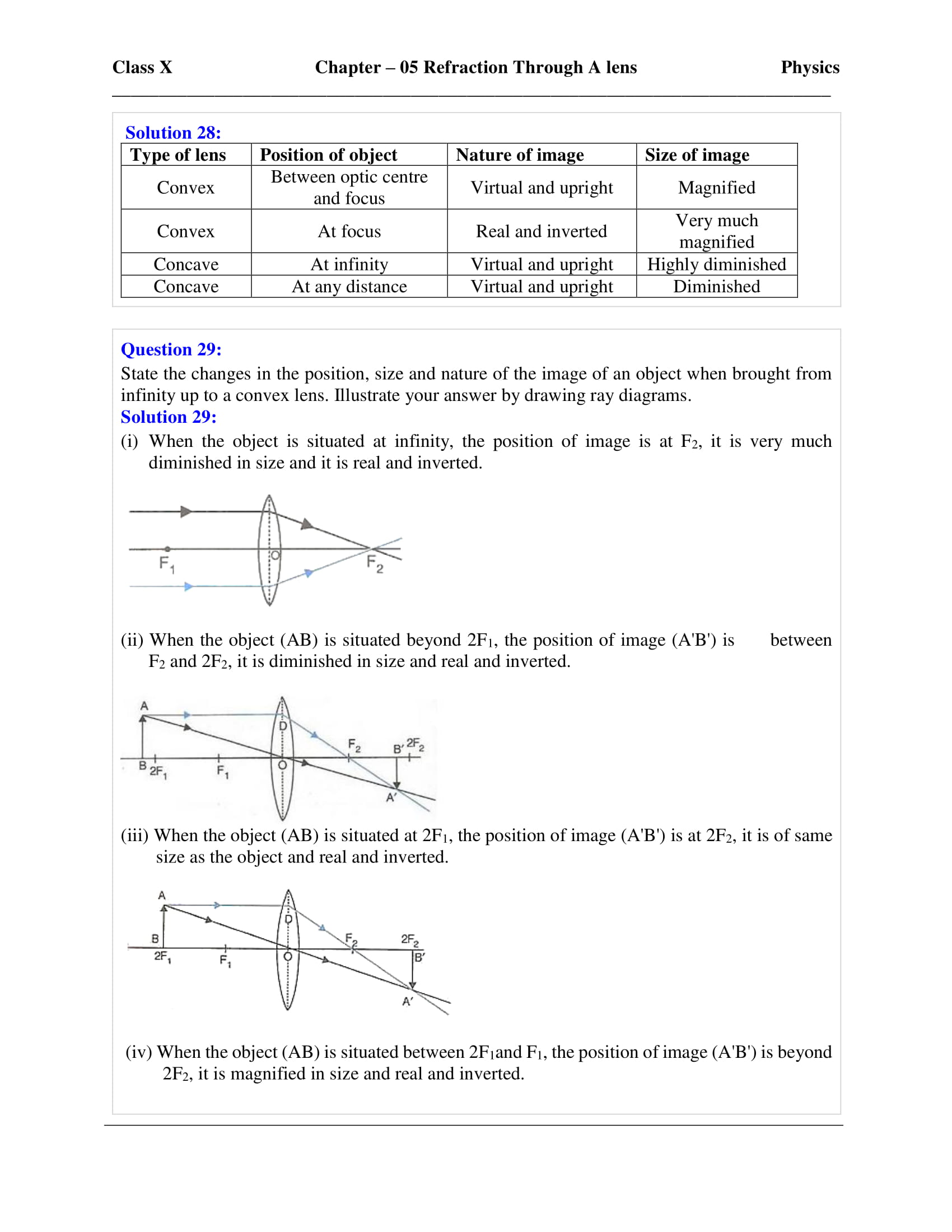

Type of lens | Position of object | Nature of image | Size of image |

Convex | Between the optical centre and focus | Virtual and upright | Magnified |

Convex | At focus | Real and inverted | Very much magnified |

Concave | At infinity | Virtual and upright | Highly diminished |

Concave | At any distance | Virtual and upright | Diminished |

**Question: 27**

**State the changes in the position, size and nature of the image when the object is brought from infinity up to the convex lens. Illustrate your answer by drawing the ray diagrams.**

**Solution:**

(i) The position of the image is at F_{2} when the object is situated at infinity. It is very much diminished in size and it is real and inverted.

(ii) The position of image (Aâ€™Bâ€™) is between F_{2} and 2F_{2} when the object (AB) is situated beyond 2F_{1}. It is diminished in size and real and inverted

(iii) The position of the image (Aâ€™Bâ€™) is at 2F_{2} when the object (AB) is situated at 2F_{1}. It is of the same size as the object and real and inverted.

(iv) The position of image (Aâ€™Bâ€™) is beyond 2F_{2} when the object (AB) is situated between 2F_{1} and F_{1}. It is magnified in size and real and inverted.

(v) The position of the image is at infinity when the object (AB) is situated at F_{1}. It is very much magnified in size and real and inverted.

(vi) The position of (CD) is on the same side when the object (AB) is situated between lens and F_{1}. It is magnified in size and virtual and upright.

**Question: 28**

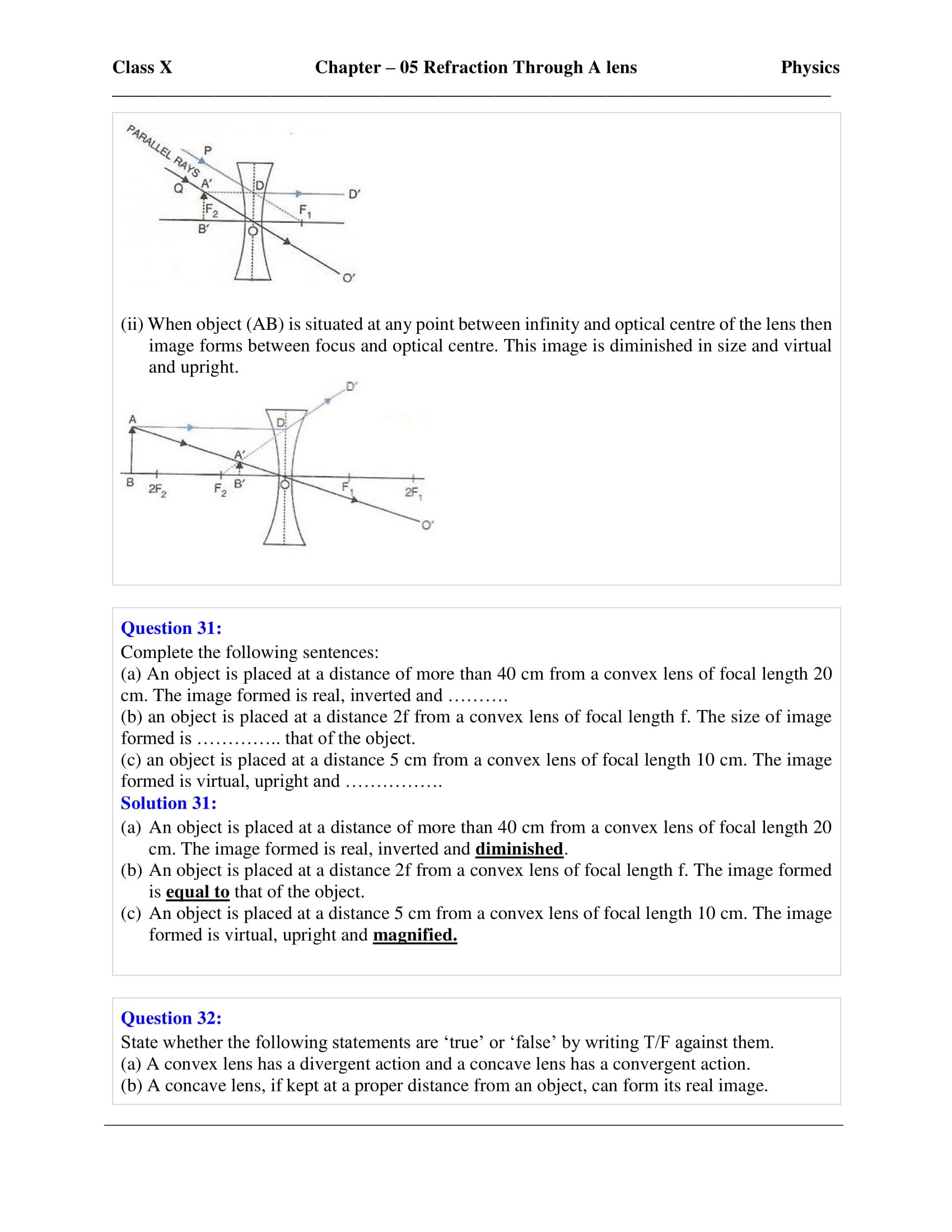

**State the changes in the position, size and nature of the image When the object is brought from infinity up to a concave lens. Illustrate your answer by drawing diagrams.**

**Solution:**

(i) The parallel rays from an object appears to fall on the concave lens due to which image forms at focus when the object (AB) is situated at infinity. This image is highly diminished in size and virtual and upright

(ii) The image forms between focus and optical centre when object (AB) is situated at any point between infinity and optical centre of the lens. This image is diminished in size and virtual and upright.

**Question: 29**

**Complete the following sentence**

**(a)An object is placed at a distance of more than 40 cm from a convex lens of focal length 20 cm. The image formed is real, inverted andâ€¦â€¦â€¦â€¦â€¦.**

**(b)An object is placed at a distance 2f from a convex lens of focal length f. The image formed isâ€¦â€¦â€¦â€¦â€¦.that of the object**

**(c)An object is placed at a distance 5 cm from a convex lens of focal length 10 cm. The image formed isÂ virtual, upright andâ€¦â€¦â€¦â€¦..**

**Solution:**

(a) An object is placed at a distance of more than 40 cm from a convex lens of focal length 20 cm. The image formed is real, inverted and diminished

(b) An object is placed at a distance 2f from a convex lens of focal length f. The image formed is equal to that of the object

(c) An object is placed at a distance 5 cm from a convex lens of focal length 10 cm. The image formed is virtual, upright and magnified

**Question: 30**

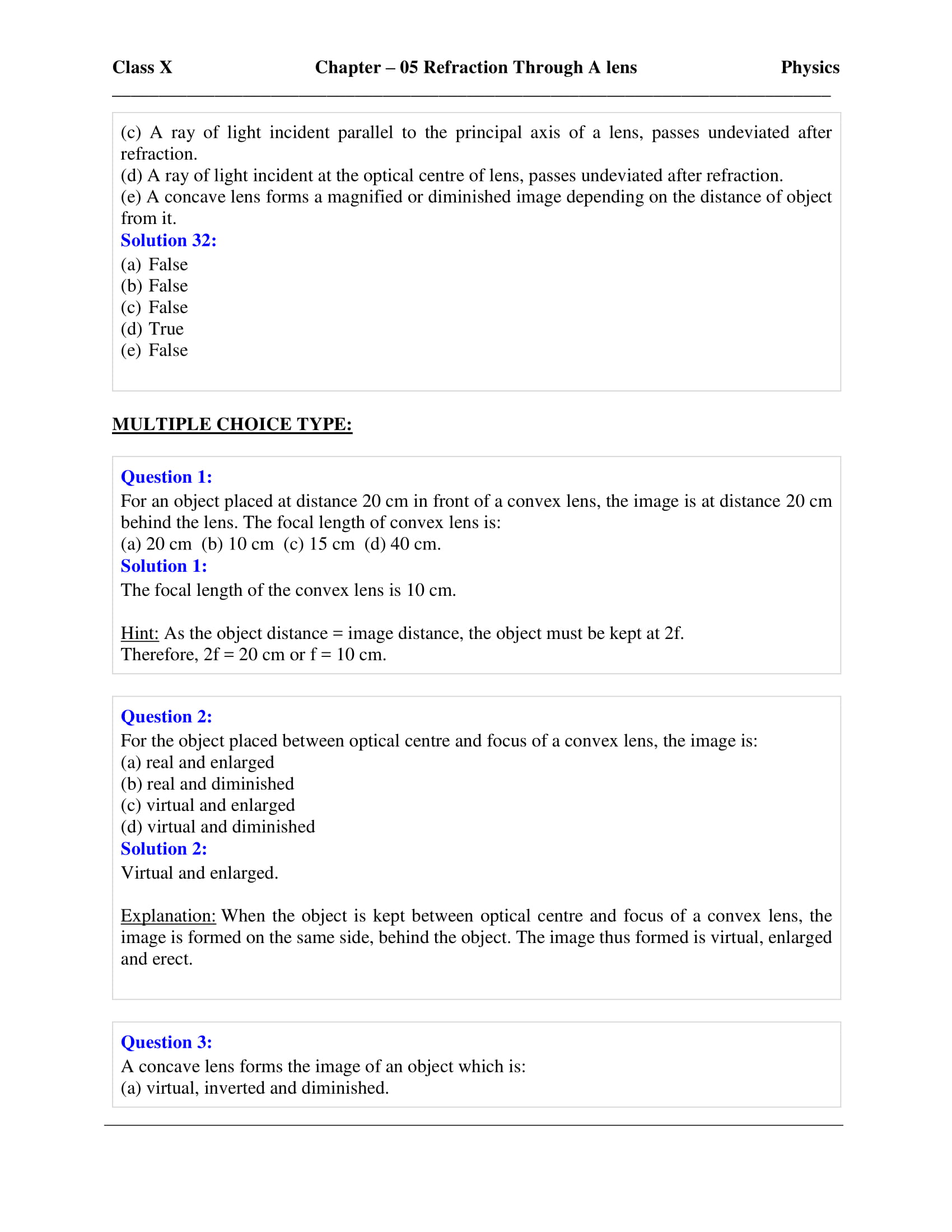

**State whether the following statements are ‘true’ or ‘false’ by writing T/F against them.**

**(a)A convex lens has a divergent action and a concave lens has a convergent action.**

**(b)A concave lens, if kept at a proper distance from an object, can form its real image**

**(c)A ray of light incident parallel to the principal axis of a lens, passes undeviated after refraction**

**(d)A ray of light incident at the optical centre of the lens,Â passesÂ undeviatedÂ after refraction**

**(e)A concave lens forms a magnified or diminished image depending on the distance of the object from it.**

**Solution:**

(a) False

(b) False

(c) False

(d) True

(e) False

**MULTIPLE CHOICE TYPE**

**Question: 1**

**For an object placed at a distance 20 cm in front of a convex lens, the image is at a distance 20 cm behind the lens. The focal length of the convex lens is:**

**(a) 20 cm**

**(b) 10 cm**

**(c) 15 cm**

**(d) 40 cm**

**Solution:**

The focal length of a convex lens is 10 cm

**Question: 2**

**For the object placed between the optical centre and focus of a convex lens, the image is:**

**(a) Real and enlarged**

**(b) Real and diminished**

**(c) Virtual and enlarged**

**(d) Virtual and diminished.**

**Solution:**

The image is virtual and enlarged

**Question: 3**

**A concave lens forms the image of an object which is:**

**(a) Virtual, inverted and diminished**

**(b) Virtual, upright and diminished**

**(c) Virtual, inverted and enlarged**

**(d) Virtual, upright and enlarged**

**Solution:**

A concave lens forms the image of an object which is virtual, upright and diminished

Exercise 5(c) page no: 126

**Question: 1**

**State the sign convention to measure the distances for a lens.**

**Solution:**

The axis along which the distances are measured is called the principal axis. These distances are measured from the optical centre of the lens.

The distances measured in the same direction as that of incident light are taken as positive

The distances measured against the direction of incident light are taken as negative

The distances measured upward and perpendicular to the principal axis are taken as positive

The distances measured downwards and perpendicular to the principal axis is taken as negative

The focal length of the convex lens is taken as positive and that of concave lens is taken as negative

**Question: 2**

**The focal length of a lens is (i) positive, (ii) negative.**

**In each case, state the kind of lens.**

**Solution:**

(i) If the focal length of a lens is positive, then the lens is a convex lens

(ii) If the focal length of a lens is negative, then the lens is a concave lens

**Question: 3**

**Write the lens formula explaining the meaning of the symbols used.**

**Solution:**

Lens formula

1 / v â€“ 1 / u = 1 / f

where â€˜uâ€™ is the distance of the object from the optical centre of the lens

â€˜vâ€™ is the distance of the image from the optical centre while â€˜fâ€™ is the focal length, the distance between the optical centre and the focus of the lens.

**Question: 4**

**What do you understand by the term magnification? Write expression for it for a lens, explaining the meaning of the symbols used.**

**Solution:**

The term magnification is defined as the ratio of the size of the image to the size of the object. The expression is

m = -v / u or

m =Height of image (hâ€™) / Height of object (h) where v means image distance and u means object distance

hâ€™ means the size of the image or h means the size of the object

**Question: 5**

**What information about the nature of the image (i) real or virtual, (ii) erect or inverted, do you get from the sign of magnification + or -?**

**Solution:**

(i) The positive magnification indicates that the image formed is virtual while a negative sign indicates that the image formed is real.

(ii) The positive magnification indicates that the image formed is erect while a negative sign indicates that the image formed is inverted

**Question: 6**

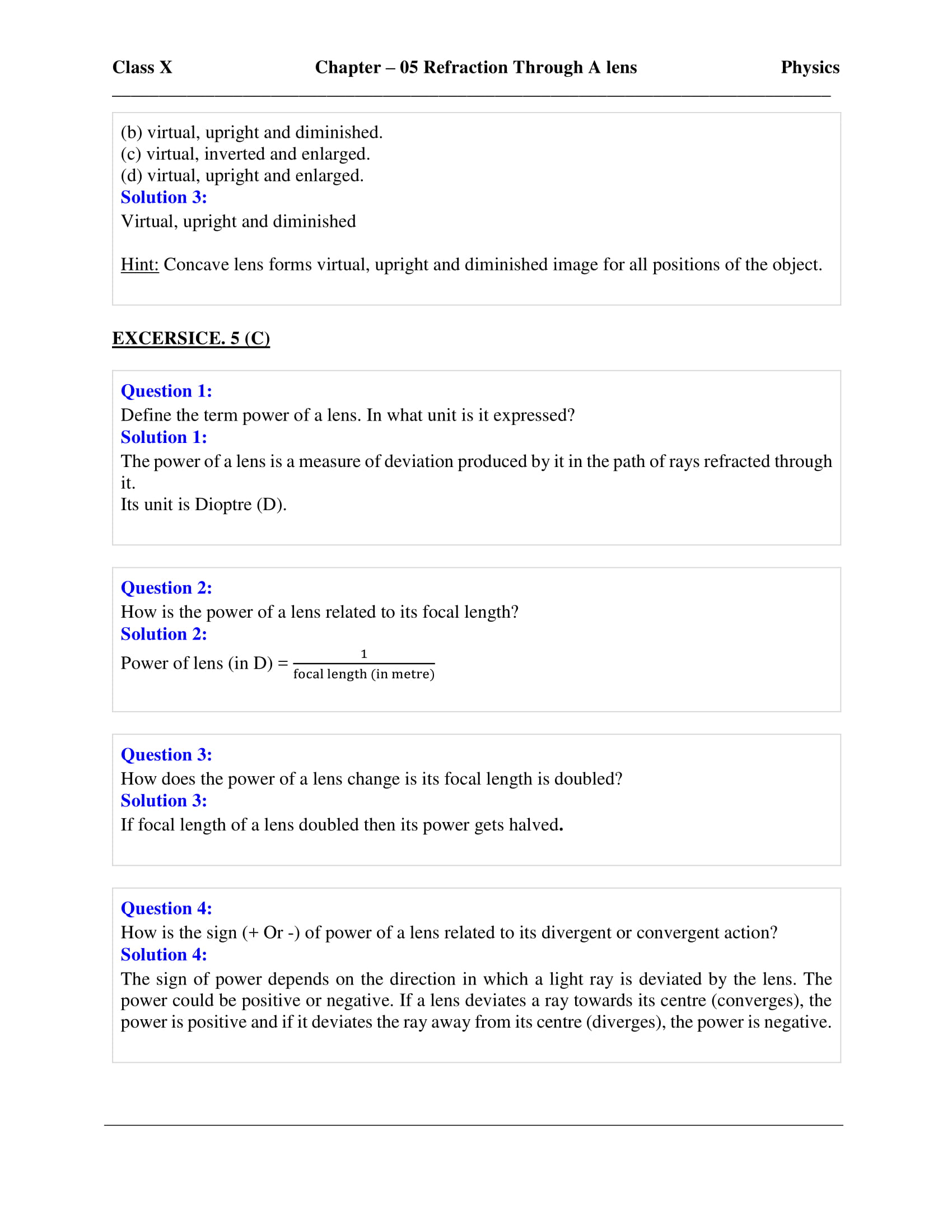

**Define the term power of a lens. In what unit is it expressed?**

**Solution:**

Power of lens is the ability of the lens to converge the rays of light falling on it or it is defined as P = 1 / f where f is the focal length. The S.I unit of power is Dioptre (D)

**Question: 7**

**How is the power of a lens related to its focal length?**

**Solution:**

The power of a lens is related to its focal length as

P = 1 / f or

Power of lens (in D) = 1 / focal length (in metre)

Therefore it’s inversely proportional to focal length

**Question: 8**

**How does the power of a lens change if its focal length is doubled?**

**Solution:**

Power is inversely proportional to the focal length. So if the focal length is doubled, the power is reduced by half.

**Question: 9**

**How is the sign (+ or -) of power of a lens related to its divergent or convergent action?**

**Solution:**

The sign of power depends on the direction in which a light ray is deviated by the lens. The power could be positive or negative. If a lens deviates a ray towards its centre (converges), the power is positive and if it deviates the ray away from its centre (diverges), the power is negative.

**Question: 10**

**The power of a lens is negative. State whether it is convex or concave?**

**Solution:**

It is a concave lens

**Question: 11**

**Which lens has more power: a thick lens or a thin lens?**

**Solution:**

A thick lens has more power than a thin one because it has greater curvature or lesser focal length than a thin lens

**MULTIPLE CHOICE TYPE**

**Question: 1**

**If the magnification produced by a lens is – 0.5, the correct statement is :**

**(a) The lens is concave**

**(b) The image is virtual**

**(c) The image is magnified**

**(d) The images are real and diminished formed by a convex**

**Solution:**

The correct statement is the image is real and diminished formed by a convex lens because the negative sign of magnification indicates that the image is real while o.5 indicates that the image is diminished.

**Question: 2**

**The correct lens formula is**

**(a) 1 / u + 1 / v = 1 / f**

**(b) 1 / u â€“ 1 / v = 1 / f**

**(c) 1 / v â€“ 1 / u = 1 / f**

**(d) f = (u + v) / uv**

**Solution:**

The correct lens formula is

1 / v â€“ 1 / u = 1 / f

**Question: 3**

**On reducing the focal length of a lens, its power:**

**(a) DecreasesÂ **

**(b) IncreasesÂ **

**(c) Does not changeÂ **

**(d) First increases then decreases.**

**Solution:**

On reducing the focal length of a lens, its power increases.

**Question: 4**

**The lens of power + 1.0 D is :**

**(a) convex of focal length 1.0 cm**

**(b) convex of focal length 1.0 m**

**(c) concave of focal length 1.0 cm**

**(d) concave of focal length 1.0 m**

**Solution:**

Power lens is + 1.0 D. Here positive sign indicates that the focal length of the lens is positive which indicates that it is a convex lens

Power is P = 1 / f (in m)

+1.0 D = 1 / f (in m)

f = 1.0 m

Therefore the lens of power +1.0 D is 1.0 m

**NUMERICAL**

**Question: 1**

**(a) At what position a candle of length 3 cmÂ beÂ placed in front of a convex lens so that its image of length 6 cm be obtained on a screen placed at distance 30 cm behind the lens?**

**(b) What is the focal length of the lens in part (a)?**

**Solution:**

Given

Height of a candle (object) = 3 cm

Height of the image of the candle = 6 cm

Image distance = 30 cm

(a) The formula for magnification of a lens is

m = hâ€™ / h

m = v / u

6 / 3 = 30 / u

âˆ´ u = 15 cm

(b) Lens formula is

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / 30 â€“ 1 / -15 = 1 / f [u is negative]

âˆ´ 1 / f = 1 / 30 + 1 / 15

1 / f = 3 / 30

âˆ´ f = + 10 cm

**Question: 2**

**A concave lens forms the image of an object kept at a distance 20 cm in front of it, at a distance 10 cm on the side of the object.**

**(a) What is the nature of the image?**

**(b) Find the focal length of the lens.**

**Solution:**

Given,

Object distance, u = -20 cm

Image distance, v = – 10 cm

(a) It is a virtual image because the image is formed on the same side as the object. Also, since the lens is a concave lens the image will be erect and diminished.

(b) Lens formula is

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / -10 â€“ 1 / -20 = 1 / f

âˆ´ 1 / f = 1 / 20 â€“ 1 / 10

âˆ´ 1 / f = – 1 / 20

âˆ´ f = – 20 cm

**Question: 3**

**The focal length of a convex lens is 25 cm. At what distance from the optical centre of the lens an objectÂ beÂ placed to obtain a virtual image of twice the size?**

**Solution:**

Given,

Focal length, f = +25 cm

Image is virtual and magnified, m = +2

For a lens, magnification is

m = v / u

âˆ´ +2 = v / u

âˆ´ v = 2u

Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / 2u â€“ 1 / u = 1 / 25

âˆ´ – 1 / 2u = 1 / 25

âˆ´ 2u = – 25

âˆ´ u = – 12.5 cm

**Question: 4**

**WhereÂ should an objectÂ be placed in front of a convex lens of focal length 0.12 m to obtain a real image of size three times the size of the object, on the screen?**

**Solution:**

Given,

Focal length of a convex lens, f = + 0.12 m

m = -3 (real image)

For a lens, magnification is

m = v / u

âˆ´ – 3 = v / u

âˆ´ v = – 3u

Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / – 3u â€“ 1 / u = 1 / 0.12

âˆ´ -4 / 3u = 1 / 0.12

âˆ´ 3u = 0.48 m

âˆ´ u = 0.48 / 3

âˆ´ u = – 0.16 m

**Question: 5**

**An illuminated object lies at a distance 1.0 m from a screen. A convex lens is used to form the image of object on a screen placed at distance 75 cm from the lens. Find: (i) the focal length of lens, and (ii) the magnification.**

**Solution:**

Given,

Image distance, v = 75 cm

Object distance, u = -25 cm

Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / 75 â€“ 1 / -25 = 1 / f

âˆ´ 1 / f = 1 / 75 + 1 / 25

âˆ´ 1 / f = 4 / 75

âˆ´ f = 75 / 4

âˆ´ f = 18.75 cm

For a lens, magnification is

m = v / u

âˆ´ m = 75 / -25

âˆ´ m = -3

**Question: 6**

**A lens forms the image of an object placed at a distance 15 cm from it, at a distance 60 cm in front of it. Find: (i) the focal length, (ii) the magnification, and (iii) the nature of image.**

**Solution:**

Given,

Object distance, u = – 15 cm

Image distance, v = – 60 cm

(i) Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / – 60 â€“ 1 / – 15 = 1 / f

âˆ´ 1 / f = 1 / 15 â€“ 1 / 60

âˆ´ 1 / f = 3 / 60

âˆ´ f = 60 / 3

âˆ´ f = 20 cm

For a lens, magnification is

m = v / u

âˆ´ m = – 60 / – 15

âˆ´ m = +4

(iii) The nature of the image is erect, virtual and magnified.

**Question: 7**

**A lens forms the image of an object placed at a distance of 45 cm from it on a screen placed at a distance 90 cm on the other side of it. (a)Â nameÂ the kind of lens. (b)Â find: (i) the focal length of lens, (ii) the magnification of the image.**

**Solution:**

Given,

Object distance, u = – 45 cm

Image distance, v = + 90 cm

(a) The image is real since the image is formed on the other side of the lens. Hence, the lens is a convex lens.

(b)

(i) Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / 90 â€“ 1 / – 45 = 1 / f

âˆ´ 1 / f = 1 / 90 + 1 / 45

âˆ´ 1 / f = 3 / 90

âˆ´ f = 30 cm

(ii) For a lens, magnification is

m = v / u

âˆ´ m = 90 / – 45

âˆ´ m = – 2

**Question: 8**

**An object is placed at a distance of 20 cm in front of a concave lens of focal length 20 cm. find: (a) the position of the image, and (b) the magnification of the image**

**Solution:**

Given,

Object distance, u = – 20 cm

Focal length, f = – 20 cm (concave lens)

(a) Lens formula is,

1 / v â€“ 1 / u = 1 / f

âˆ´ 1 / v = 1 / f + 1 / u

âˆ´ 1 / v = 1 / – 20 + 1 / – 20

âˆ´ 1 / v = – 2 / 20

âˆ´ v = -10 cm

Hence the image is 10 cm in front of the lens on the same side as the object.

(ii) For a lens, magnification is

m = v / u

âˆ´ m = -10 / – 20

âˆ´ m = + 0.5

**Question: 9**

**A convex lens forms an inverted image of size same as that of the object which is placed at a distance 60 cm in front of the lens. Find:**

**(a)Â The position of image, and**

**(b)Â The focal length of the lens**

**Solution:**

A convex lens forms an inverted, real and an image of the same size as the object when the object is placed at 2f i.e u = 2f

(a) In such cases, the image is formed at the point which is double the focal length on the other side of the lens (2f_{2})

(b) To find the focal length of this lens, we use the relationship

Object distance (u) = 2f

Object distance = 60 cm (given)

60 = 2f

f = 60 / 2

f = 30

Hence, the focal length of this lens is 30 cm

**Question: 10**

**A concave lens forms an erect image of 1/3 ^{rd}size of the object which is placed at a distance 30 cm in front of the lens. Find:**

**(a)Â The position of image, and**

**(b)Â The focal length of the lens.**

**Solution:**

Given,

Distance of the object u = – 30 cm

Magnification m = hâ€™/ h

= 1 / 3

We know that

The magnification is

m = hâ€™ / h

m = v / u

1 / 3 = v / -30

v = -10 cm

Therefore the image is formed at 10 cm from the lens.

Lenâ€™s formula is

1 / f = 1 / v â€“ 1 / u

1 / f = 1 / – 15

f = -15 cm

Hence, the focal length is 15 cm and the image is formed at 10 cm from the lens.

**Question: 11**

**The power of a lens is +2.0 D. Find its focal length and state what kind of lens it is?**

**Solution:**

Given,

Power of the lens = +2D

Since the power is positive,

âˆ´ The lens is convex

Let focal length be F

Power = 1 / F

2 = 1 / F

F = 1 / 2 m

F = 0.5 m

âˆ´ The focal length is 0.5 m and the lens is a convex lens

**Question: 12**

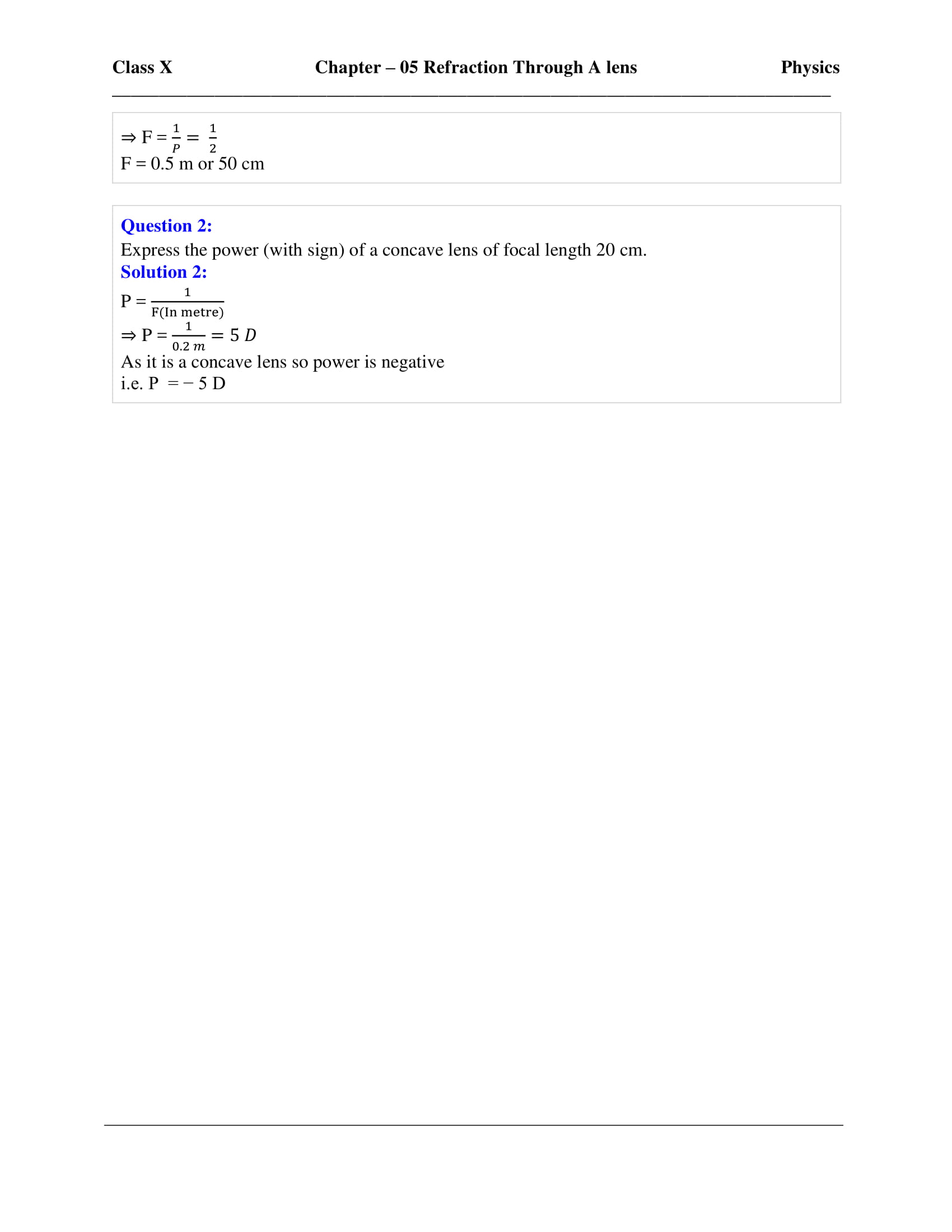

**Express the power (with sign)Â of a concave lens of focal length 20 cm.**

**Solution:**

P = 1 / F (in metre)

P = 1 / 0.2 m

P = 5D

As it is a concave lens so power is negative

Therefore P = – 5D

**Question: 13**

**The focal length of a convex lens is 25 cm. Express its power with sign.**

**Solution:**

Given,

Focal length, f = +25 cm

= +0.25 m

We need to find the power

P = 1 / f

P = 1 / +0.25

P = +4.0 D

**Question: 14**

**The power of a lens is -2.0 D. Find its focal length and its kind.**

**Solution:**

Given,

The power of a lens = -2.0 D

Power of a lens is

P = 1 / f

-2 = 1 / f

f = 1 / -2

f = -0.5 m

f = – 50 cm

As power is negative it indicates that the lens is a concave lens

**Question: 15**

**The magnification by a lens is -3. Name the lens and state how are u and v related?**

**Solution:**

Here the negative value of magnification indicates that the image is real and inverted. The magnitude of magnification is greater than 1, which means the image is enlarged. Hence, the lens should be a convex lens.

The relation between u and v is given by

m = v / u

-3 = v / -u

v = 3u

This shows the image distance is 3 times that of object distance.

**Question: 16**

**The magnification by a lens is +0.5. Name the lens and state how are u and v related?**

**Solution:**

The image formed by the concave lens is always virtual, erect and smaller than the object. Hence, the magnification is always positive and less than 1

The relation between u and v is

m = v / u

0.5 = -v / -u

1 / 2 = v / u

u = 2v

Hence, the object distance is twice that of image distance.

**Question: 17**

**A concave lens is a focal length of 30 cm. Find the position and magnification (m) of image for an object placed in front of it at distance 30 cm. State whether the image is real on virtual?**

**Solution:**

Given,

Object distance, u = -30 cm

Focal length, f = -30 cm

Image distance, v = ?

Lenâ€™s formula is

1 / f = 1 / v â€“ 1 / u

1 / -30 = 1 / v â€“ 1 / -30

1 / v = -1 / 30 â€“ 1 / 30

1 / v = -2 / 30

1 / v = – 1 / 15

v = -15

The relation between u and v is

m = v / u

m = -15 / -30

m = 0.5

âˆ´ The image formed is virtual and erect

**Question: 18**

**Find the position and magnification of the image of an object placed at distance of 8.0 cm in front of a convex lens of focal length 10.0 cm. Is the image erect or inverted?**

**Solution:**

Given,

Object distance, u = – 8 cm

Focal length, f = 10 cm

Image distance v = ?

Lenâ€™s formula is

1 / f = 1 / v â€“ 1 / u

1 / 10 = 1 / v â€“ 1 / -8

1 / v = 1 / 10 â€“ 1 / 8

1 / v = (4 â€“ 5) / 40

1 / v = – 1 / 40

v = – 40 cm

The object is placed between the focus and optical center of the lens. So the image formed is virtual and erect.

Exercise 5(d) page no: 131

**Question: 1**

**What is magnifying glass? State its two uses.**

**Solution:**

Magnifying glass is a convex lens of short focal length. It is mounted in a lens holder for practical use. It is used to see and read the small letters and figures and also used by watchmakers to see the small parts and screws of the watch.

**Question: 2**

**Draw a neat labelled ray diagram to locate the image formed by a magnifying glass. State three characteristics of the image.**

**Solution:**

The image (Aâ€™Bâ€™) of the object (AB) will form on the same side of the lens when the object (AB) is situated between focal length and the optical centre of a convex lens.

The image formed will be virtual, magnified and erect.

**Question: 3**

**Where is the object placed in reference to the principal focus of a magnifying glass, so as to see its enlarged image? Where is the image obtained?**

**Solution:**

The object is placed between the lens and principal focus

The image is obtained between the lens and the principal focus.

**Question: 4**

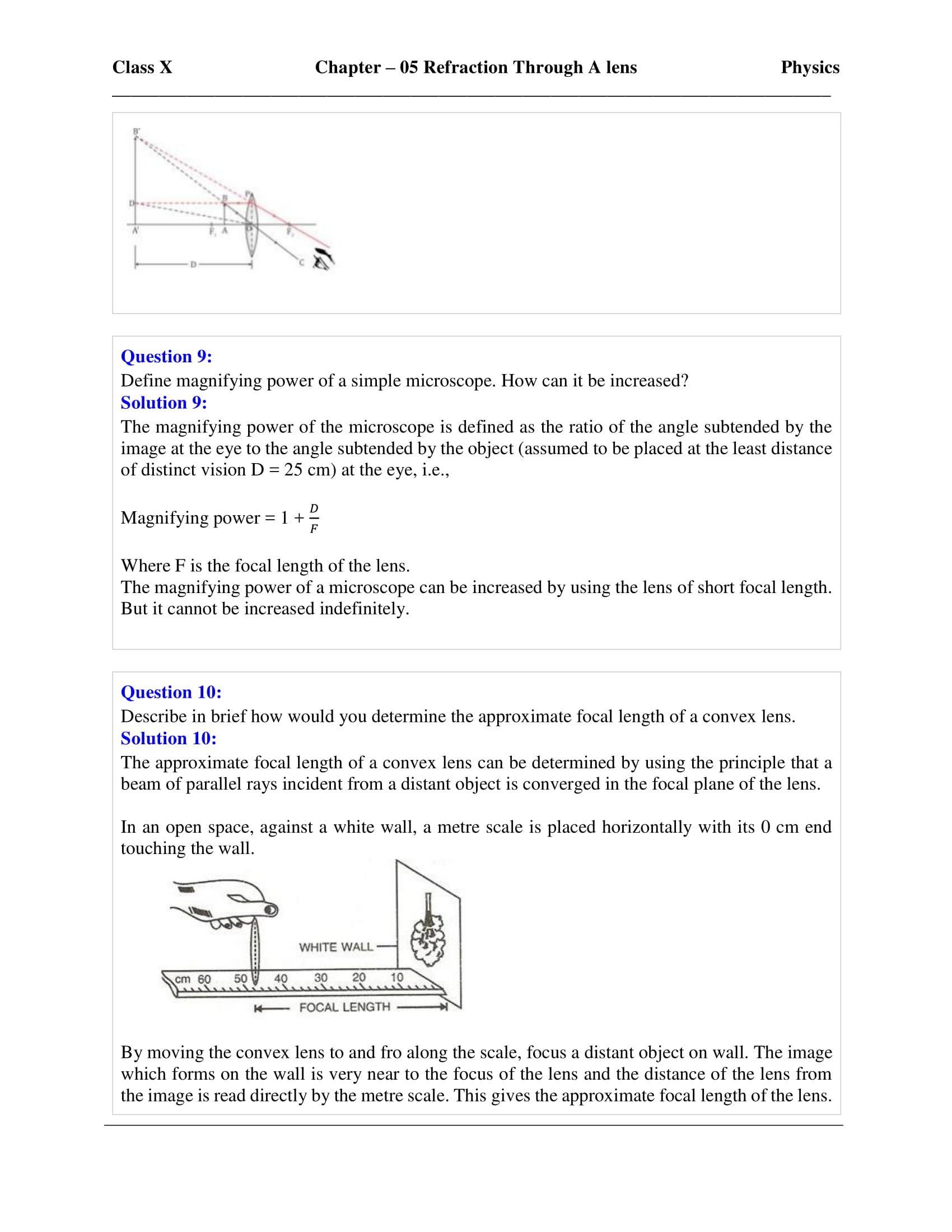

**Write an expression for the magnifying power of a simple microscope. How can it be increased?**

**Solution:**

The magnifying power of the microscope is given as

Magnifying power M = 1 + D / f

Where f is the focal length of the lens and D is the least distance of distinct vision

The magnifying power of the microscope be increased by using the lens of short focal length i.e shorter the focal length, more is the magnifying power. But it cannot be increased indefinitely.

**Question: 5**

**State two applications each of a convex lens and concave lens.**

**Solution:**

Application of a convex lens are

(i) The objective lens of a telescope, camera, slide projector, etc, is a convex lens which forms the real and inverted image of the object.

(ii) Our eye lens is also a convex lens. The eye lens forms the inverted image of the object on the retina

Application of concave lens are

(i) A concave lens is used as the eye lens in a Galilean telescope to obtain the final erect image of the object.

(ii) A person suffering from short sightedness or myopia wears spectacles having a concave lens.

**Question: 6**

**Describe in brief howÂ would youÂ determine the approximate focal length of a convex lens.**

**Solution:**

The approximate focal length of a convex lens can be determined by using the principle that a beam of parallel rays incident from a distant object is converged in the focal plane of the lens.

In an open space, against a white wall, a 0 cm end metre scale is placed horizontally touching the wall.

By moving the convex lens to and fro along the length of the metre rule, focus the object on the wall. The image formed on the wall is almost at the focus of the lens and from the image, the distance of the lens is read directly by the metre scale. This gives the approximate focal length of the lens.

**Question: 7**

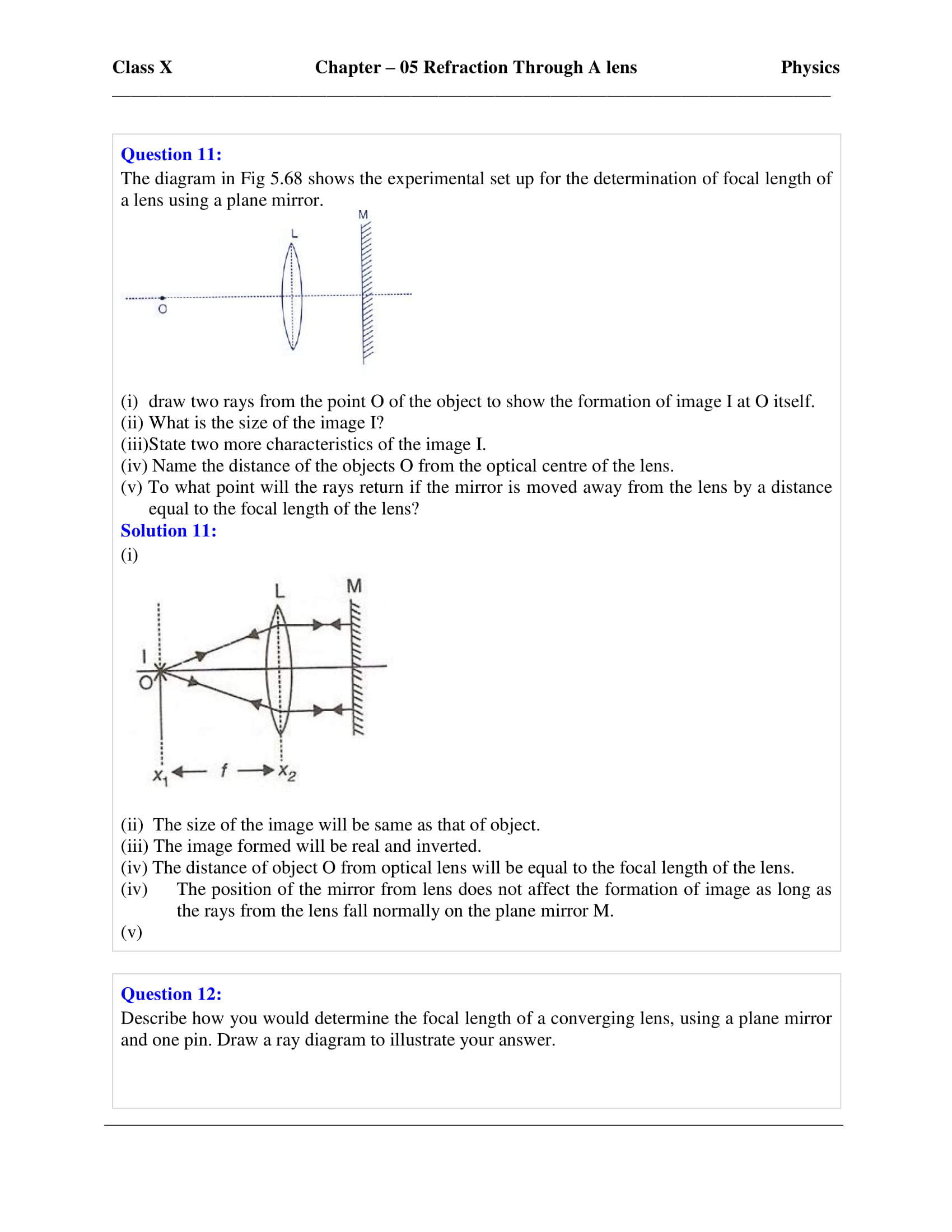

**The diagram in Fig. shows the experimental set up for the determination of the focal length of a lens using a plane mirror.**

**(i)Draw two rays from the point O of the object pin to show the formation of image I at O itself.**

**(ii)What is the size of the image I?**

**(iii)State two more characteristics of the image I.**

**(iv)Name the distance of the object O from the optical centre of the lens.**

**(v)To what point will the rays return if the mirror is moved away from the lens by a distance equal to the focal length of the lens?**

**Solution:**

(ii) The size of the image will be the same as that of object

(iii) The image formed will be real and inverted.

(iv) The distance of object O from the optical lens will be equal to the focal length of the lens

(v) As long as the rays from the lens fall normally on the plane mirror M, the position of the mirror from the lens does not affect the formation of the image.

**Question: 8**

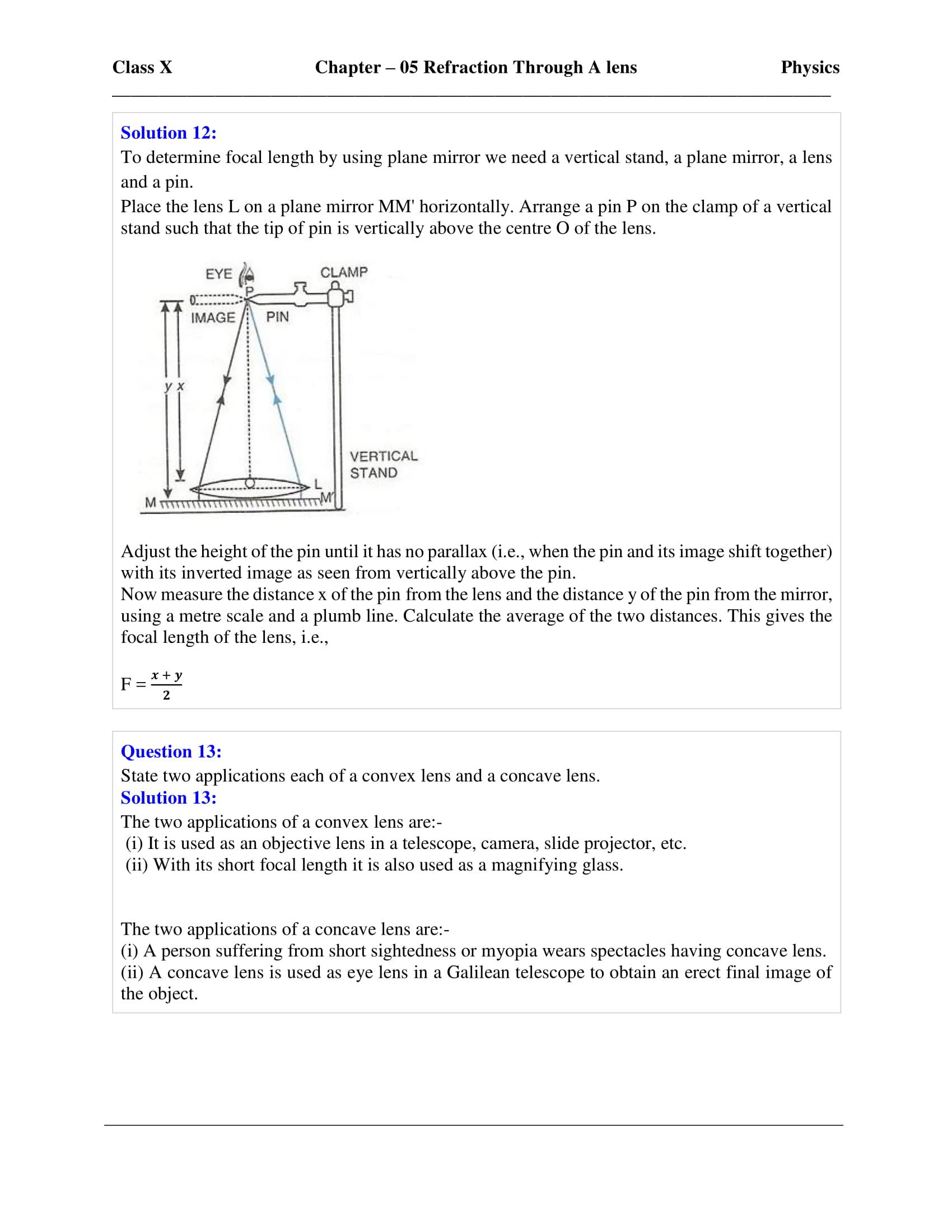

**Describe how you would determine the focal length of a converging lens, using a plane mirror and one pin. Draw a ray diagram to illustrate your answer.**

**Solution:**

In order to determine the focal length by using a plane mirror, we need a vertical stand, a plane mirror, a lens and a pin. Place the lens L horizontally on a plane mirror MMâ€™. Arrange the pin P in the clamp horizontally in such a way that the tip of the pin is vertically above the centre O of the lens.

Adjust the height of the pin till it has no parallax (i.e if the pin and its image shift together) with its inverted image as seen from vertically above the pin.

Measure the distance x of the pin P from the lens and the distance y of the pin from the mirror, using a metre rule and a plumb line. Calculate the average of the two distances. This gives the focal length of the lens, i.e

f = (x + y) / 2

**Question: 9**

**How will you differentiate between a convex and a concave lens by looking at (i) a distant object and (ii) a printed page?**

**Solution:**

(i) On seeing a distant object through the lens, if its inverted image is seen, the lens is convex and if the upright image is seen, the lens is concave.

(ii) On keeping the lens near a printed page, if letters appear magnified, the lens is convex and if the letters appear diminished, the lens is concave.

**MULTIPLE CHOICE TYPE**

**Question: 1**

**A magnifying glass forms:**

**(a) A real and diminished image**

**(b) A real and magnified image**

**(c) A virtual and magnified image**

**(d) A virtual and diminished image**

**Solution:**

A magnifying glass forms a virtual and magnified image

**Question: 2**

**The maximum magnifying power of a convex lens of focal length 5 cm can be:**

**(a) 25**

**(b) 10**

**(c) 1**

**(d) 6**

**Solution:**

Given,

Focal length of convex lens, f = +5 cm

Magnifying power of the convex lens (simple microscope) is

m = 1 + D / f

where D is the distance of the distinct vision, D = 25 cm

m = 1 + 25 / 5

m = 30 / 5

m = 6

## Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens

Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens is mainly about the study of Lens. A few basic concepts discussed in this chapter are Lens, action of a Lens as a set of prisms, technical terms related to a Lens, refraction of light through the equi-convex Lens and equi-concave Lens. Students can refer to Selina Solutions for quick revision before the exam.

List of subtopics covered in Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens

Number | Subtopic |

5.1 | Lens |

5.2 | Action of a Lens as a set of prisms |

5.3 | Technical terms related to a Lens |

5.4 | Refraction of Light through the equi-convex Lens and equi-concave Lens |

5.5 | Principal rays for ray diagrams |

5.6 | Construction of ray diagram for a Lens |

5.7 | Characteristics and location of images for a convex Lens |

5.8 | Characteristics and location of images for a concave Lens |

5.9 | Difference between the image formed by a convex and a concave lens |

5.10 | Sign convention of measurement of distances |

5.11 | Lens formula |

5.12 | Linear magnification |

5.13 | Power of a Lens |

5.14 | Magnifying glass or simple microscope |

5.15 | Application of Lenses |

5.16 | Experimental determination of the focal length of a convex Lens |

5.17 | To differentiate between a convex and a concave lens |

List of Exercises

Name of the exercise | Page number |

5(A) | 109 |

5(B) | 119 |

5(C) | 126 |

5(D) | 131 |

### Key Features of Selina Solutions Concise Physics Class 10 Chapter 5 Refraction through a Lens

- Selina Solutions are a reliable resource that students can rely on for a better understanding of the chapter
- Selina Solutions help students to solve complex questions without any obstacles
- These Solutions with accurate answers help students in revision after completing the entire syllabus
- Practising Selina Solutions will boost students exam preparation

*The given solutions are as per the 2019-20 Concise Selina textbook. The Selina Solutions for the academic year 2023-24 will be updated soon.*

## Comments
