Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum explains the concept Spectrum relevant to the ICSE board. Students who aspire to score well in the board exam can solve the textbook questions by going through Selina Solutions. BYJU’S experts designed the solutions with the objective to give a clear idea about the concepts, which are covered under this chapter
Selina Solutions Concise Physics Class 10 are important and helpful to students who aim to score good marks in the board exam. Students can refer to Selina Solutions to get their doubts cleared instantly. Using the solutions PDF, students can understand the concepts in an effective way. Students can download Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum from the links provided here.
Access Answers of Physics Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum
Exercise 6(A) page no: 137

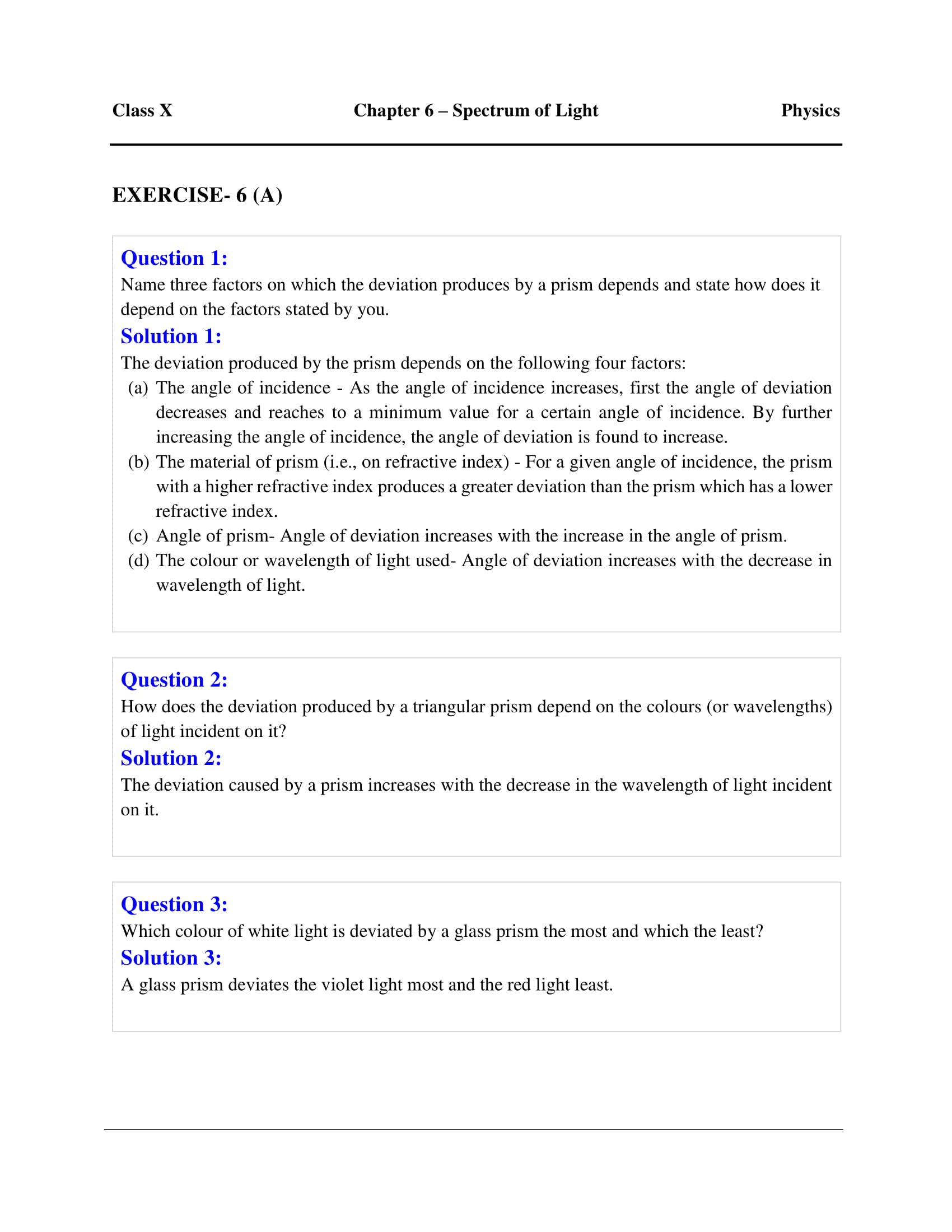

Name three factors on which the deviation produced by a prism depends and state how does it depend on the factors stated by you.
The deviation produced by the prism depends on the following four factors
(i) The angle of incidence – As the angle of incidence increases, first the angle of deviation decreases and reaches to a minimum value for a certain angle of incidence. By further increasing the angle of incidence, the angle of deviation is found to increase.
(ii) The material of prism (i.e, on the refractive index) – For a given angle of incidence, the prism with a higher refractive index produces a greater deviation than the prism which has a lower refractive index.
(iii) Angle of prism- Angle of deviation increases with the increase in the angle of prism.
(iv) The colour or wavelength of light used – Angle of deviation increases with the decrease in wavelength of light.
How does the deviation produced by a triangular prism depend on the colour (or wavelength) of light incident on it?
The deviation produced by a prism increases with the decrease in the wavelength of light incident on it.
How does the speed of light in glass change on increasing the wavelength of light?
As the wavelength increases the speed of light in glass also increases
Which colour of white light travels (a) fastest (b) slowest, in glass?
Red colour travels fastest while blue colour travels slowest in glass

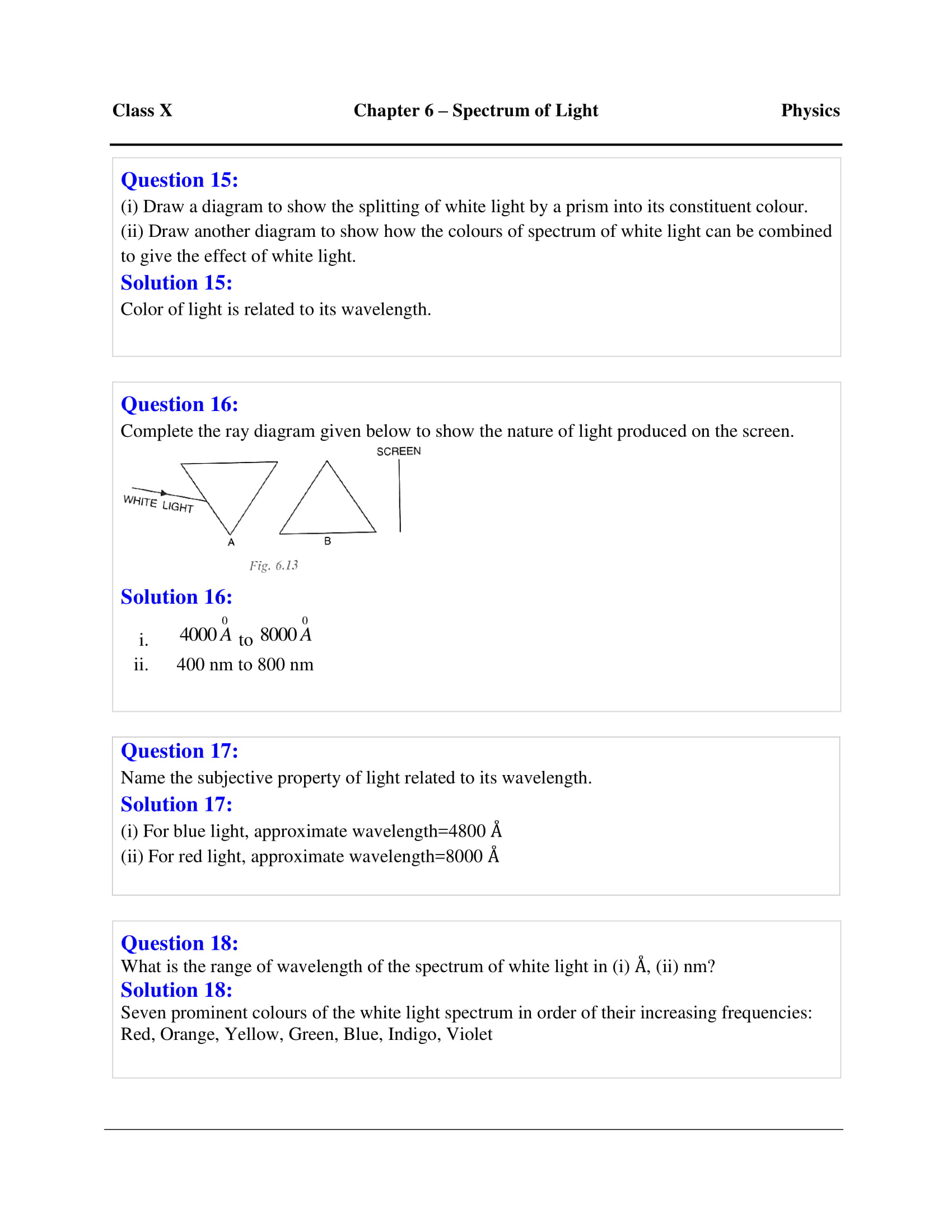

Name the subjective property of light related to its wavelength.
Colour of light is related to its wavelength.
What is the range of wavelength of the spectrum of white light in (i) and (ii) nm?
(i) The range of wavelength inis 4000to 8000
(ii) The range of wavelength in nm 400 nm to 800 nm
(a) Write the approximate wavelengths for (i) blue and (ii) red light.
(b) The wavelengths of violet and red light are 4000 respectively. Which of the two has the higher frequency?
(a) For blue light, approximate wavelength is 4800and for red light, approximate wavelength is 8000
Red light has a higher frequency.
Write the seven prominent colours present in white light in the order of increasing wavelength
Violet, indigo, blue, green, yellow, orange and red are the seven prominent colours present in white light in the order of increasing wavelength.
Name the seven prominent colours of the white light spectrum in order of their increasing frequencies.
Red, orange, yellow, green, blue, indigo and violet are the seven prominent colours of the white light spectrum in order of their increasing frequencies.
Name four colours of the spectrum of white light which have wavelength longer than blue light.
The colours which have wavelength longer than blue light are green, yellow, orange and red.
Which colour of the white light is deviated by a glass prism (i) the most and, (ii) the least?
When white light falls on a glass prism, each colour in it is refracted by a different angle, from which red colour is least deviated and violet most.
The wavelengths for the light of red and blue colours are nearly 7.8 x 10-7m and 4.8 x 10-7 m respectively.
(a)Which colour has the greater speed in a vacuum?
(b)Which colour has the greater speed in glass?
(a) Both the colours have the same speeds in a vacuum.
(b) Red colour has a greater speed in glass.

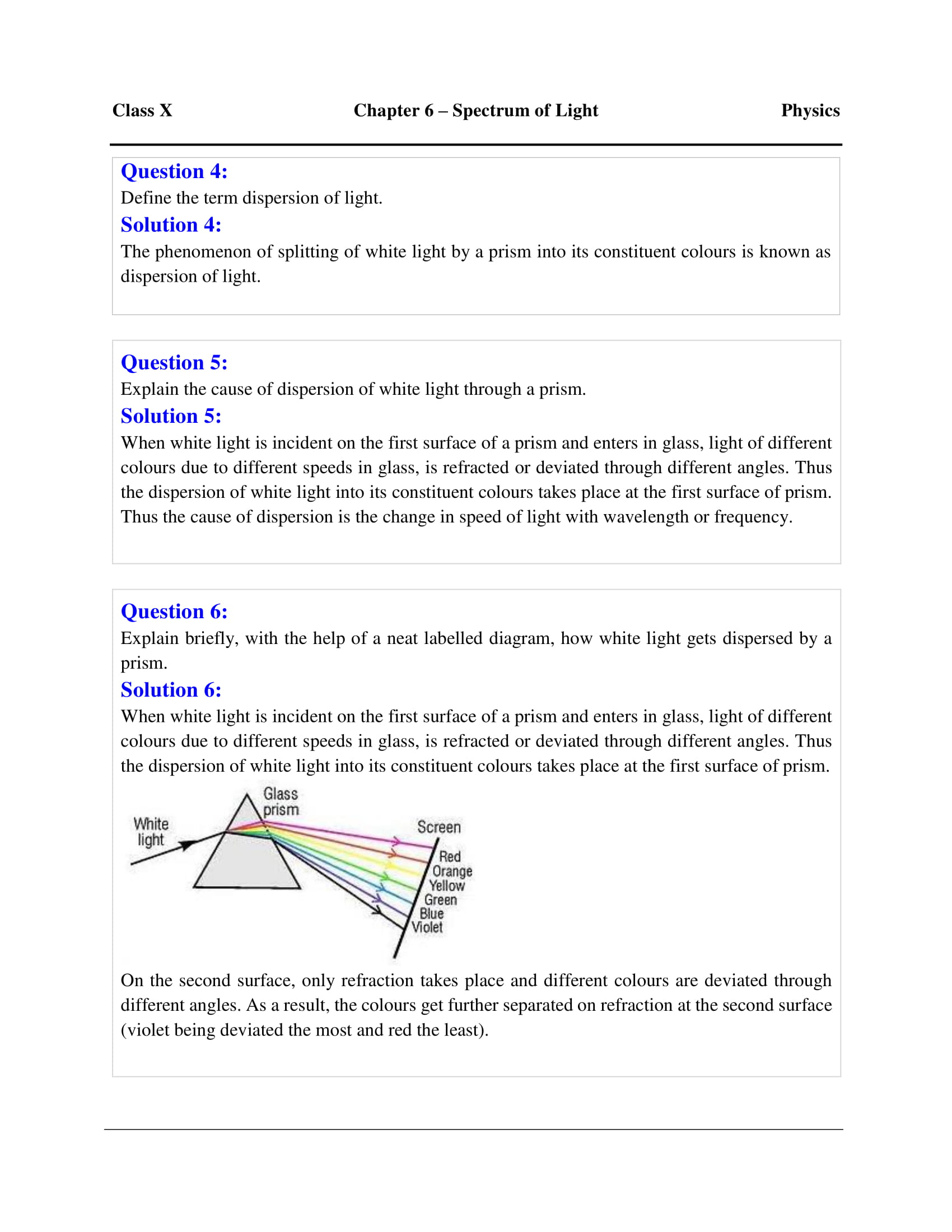

Define the term dispersion of light.
Dispersion of light is the phenomenon of splitting of a beam of white light into its seven constituent colours when passed through a transparent medium.
Explain the cause of dispersion of white light through a prism.
When white light enters the first surface of a prism, light of different colours due to their different speeds in glass, gets deviated through different angles towards the base of the prism. Hence, the cause of dispersion of white light is the change in speed of light with wavelength.
Explain briefly, with the help of a neat labelled diagram, how does white light gets dispersed by a prism.
On which surface of the prism, there is both the dispersion and deviation of light, and on which surface of the prism, there is only the deviation of light?
When white light enters the first surface of a prism, light of different colours due to their different speeds in glass, gets deviated through different angles towards the prism. Thus at the first surface of the prism, the dispersion of white light into its constituent colours takes place.
On the second surface of the prism, only refraction takes place and different colours deviate through different angles, Thus the colours get further separated on refraction at the second surface (violet deviates the most and red the least).

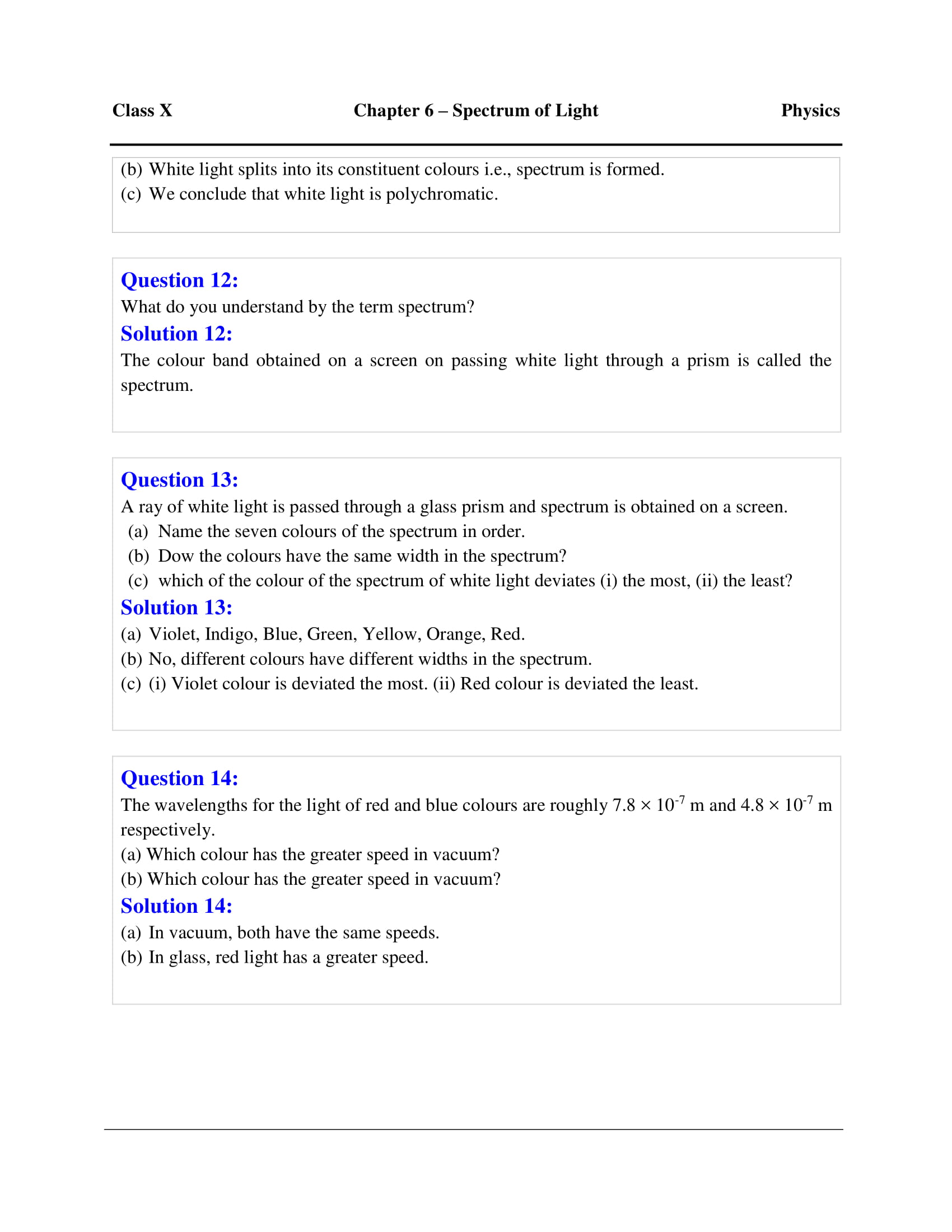

What do you understand by the term spectrum?
On passing white light through a prism, the band of colours seen on a screen is called the spectrum.
A ray of white light is passed through a glass prism and spectrum is obtained on a screen.
(a)Name the seven colours of the spectrum in order.
(b)Do the colours have the same width in the spectrum?
(c)Which of the colour of the spectrum of white light deviates (i) the most? (ii) the least?
(a) Violet, Indigo, Blue, Green, Yellow, Orange and Red are the seven colours of the spectrum.
(b) No, different colours have different width in the spectrum.
(c) (i) The colour which deviated the most is violet and
(ii) The colour which deviated the least is red

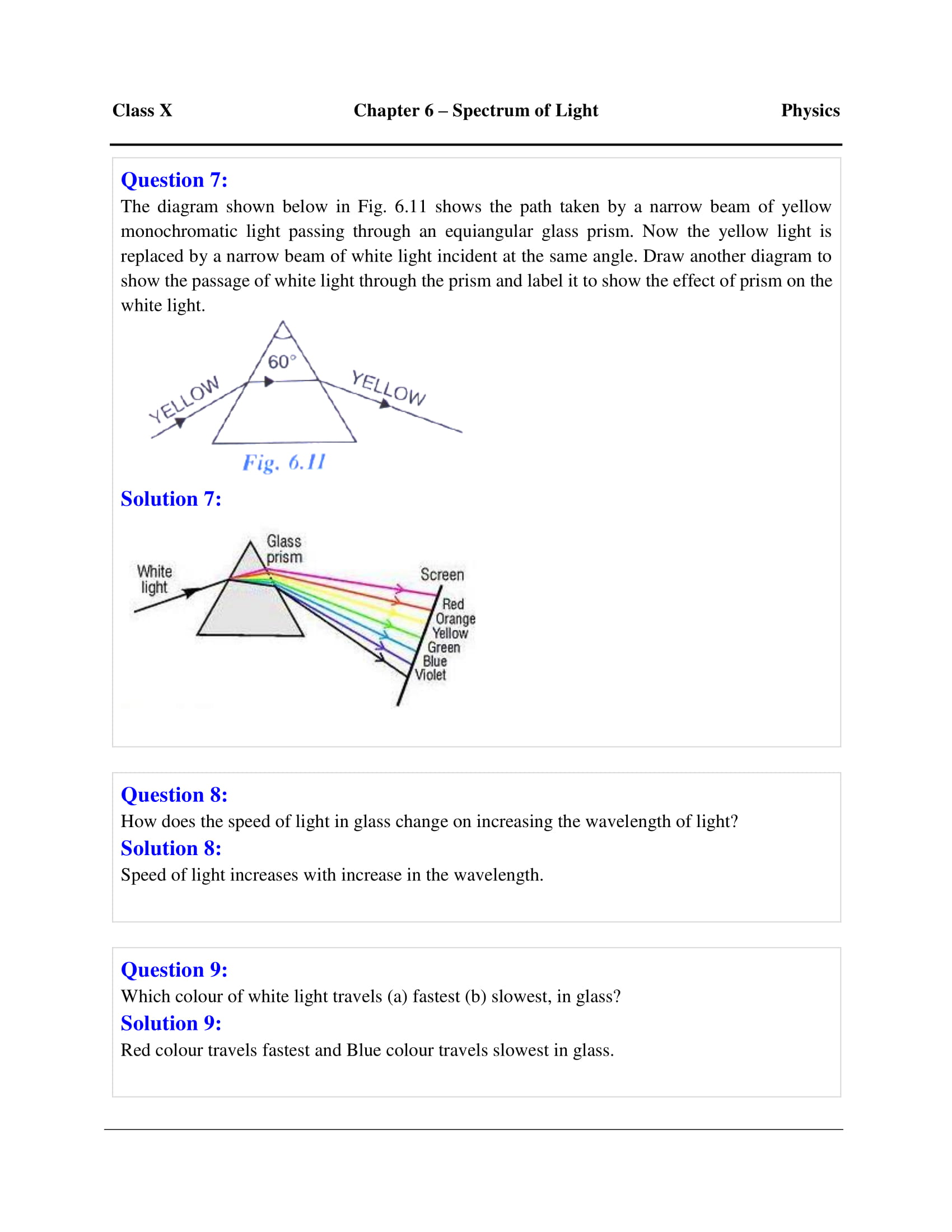

The diagram shown below shows the path taken by a narrow beam of yellow monochromatic light passing through an equiangular glass prism. If the yellow light is replaced by a narrow beam of white light incident at the same angle, draw another diagram to show the passage of the beam through the prism and label it to show the effect of a prism on the white light.

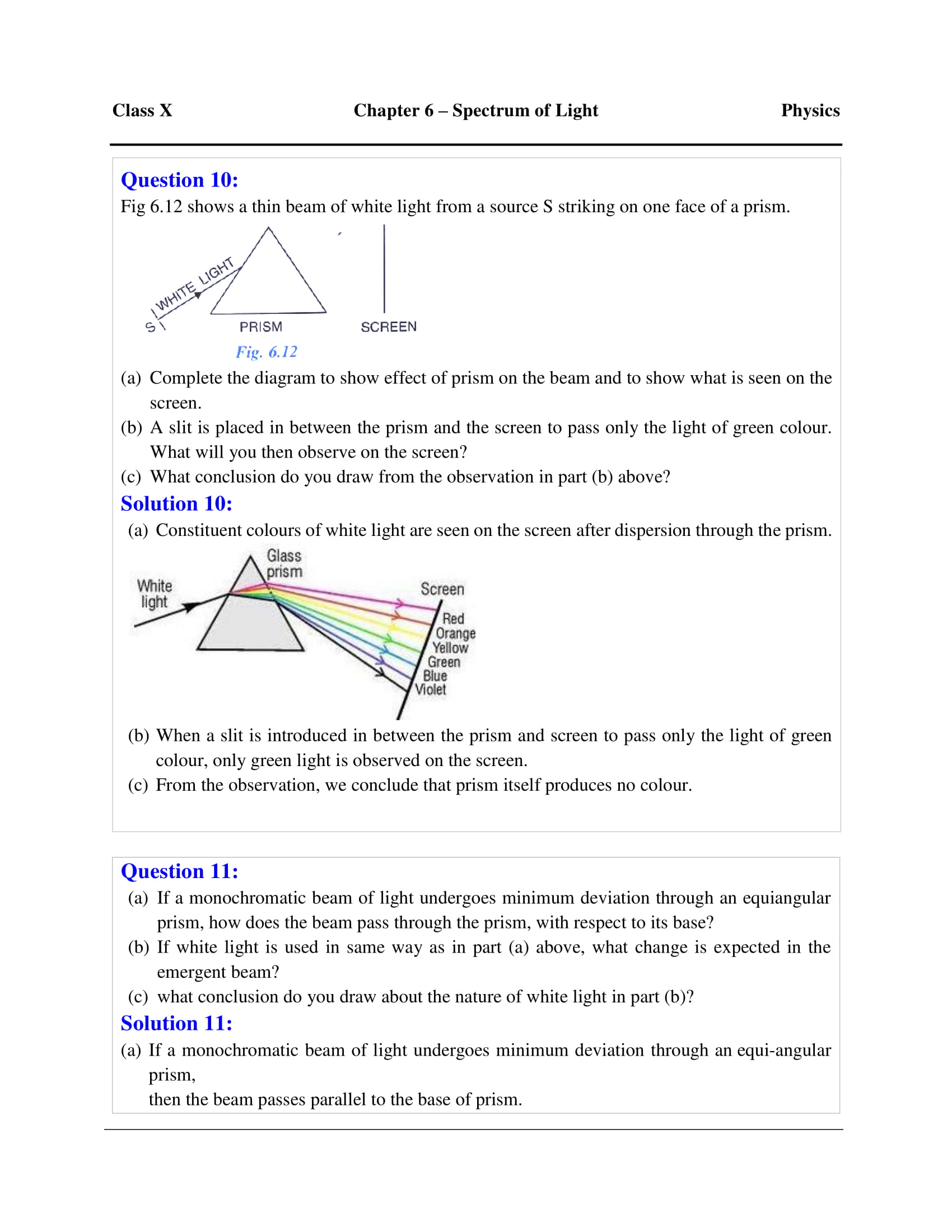

The figure shows a thin beam of white light from a source S striking on one face of a prism.
(a) Complete the diagram to show the effect of the prism on the beam and to show what is seen on the screen.
(b) A slit is placed in between the prism and the screen to pass only the light of green colour. What will you then observe on the screen?
(c) What conclusion do you draw from the observation in part (b) above?
(a) After dispersion through the prism, constituent colours of white light are seen on the screen.
(b) When a slit is introduced in between the prism and screen to pass only the light of green colour then only green light is observed on the screen.
(c) We conclude from the observation, that prism itself produces no colour.
(a) A beam of monochromatic light undergoes minimum deviation through an equiangular prism, how does the beam pass through the prism, with respect to its base?
(b) If white light is used in the same way as in part (a) above, what change is expected in the emergent beam?
(c) What conclusion do you draw about the nature of white light in part (b)?
(a) The light beam inside the Prism will be parallel to the base.
Under minimum deviation,
angle of incidence = angle of emergence
(b) White light splits into its constituent colours. That is spectrum is formed.
(c) We conclude that white light is polychromatic in nature.
MULTIPLE CHOICE TYPE

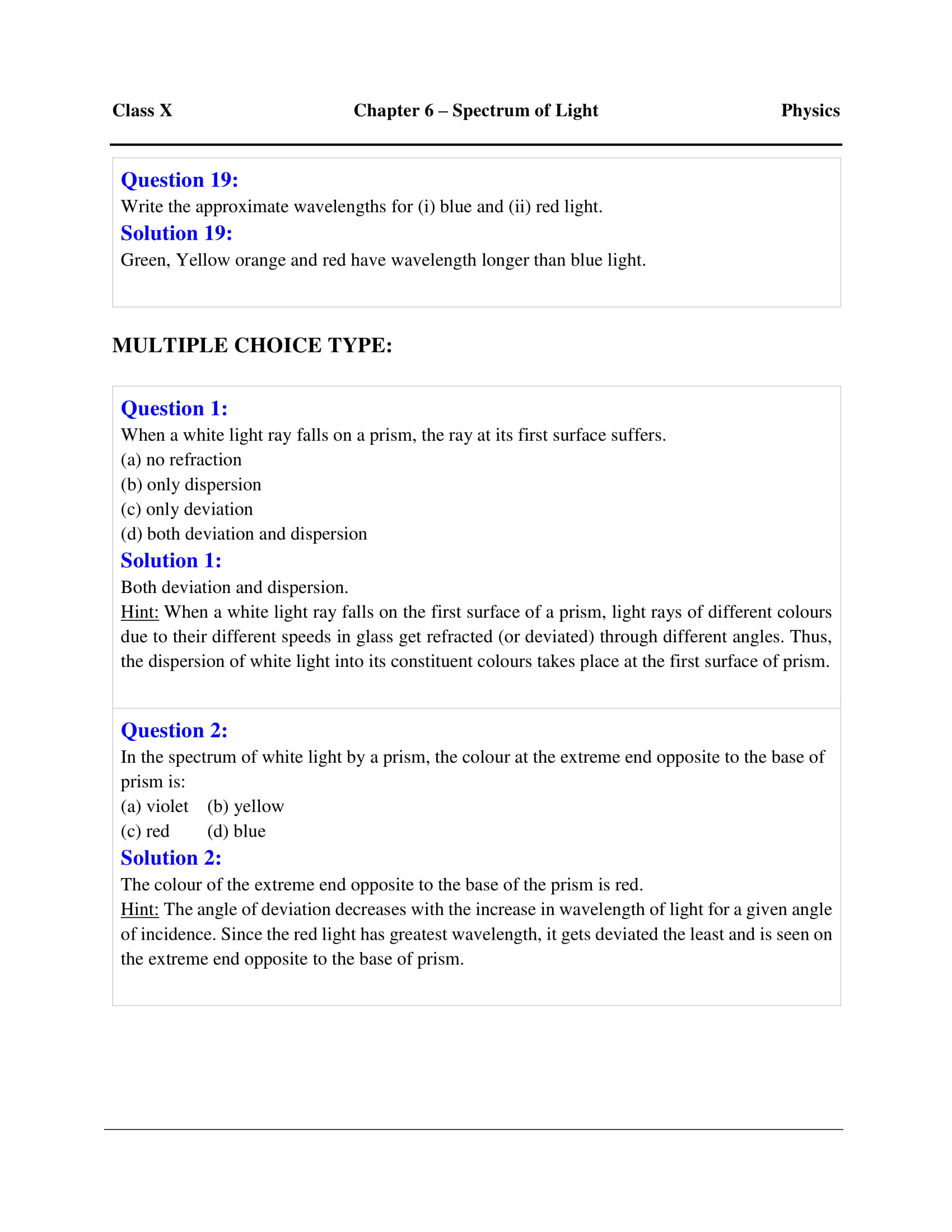

When a white light ray falls on a prism, the ray at its first surface suffers:
(a) no refraction
(b) only dispersion
(c) only deviation
(d) both deviation and dispersion
When a white light ray falls on a prism, the ray at its first surface suffers both deviation and dispersion.
In the spectrum of white light by a prism, the colour at the extreme end opposite to the base of a prism is:
The colour at the extreme end opposite to the base of a prism is red.
The wavelength range of white light is
(a) 4000 nm to 8000 nm
(b) 40 nm to 80 nm
(c) 400 nm to 800 nm
(d) 4 nm to 8 nm
The wavelength range of white light is 400 nm to 800 nm

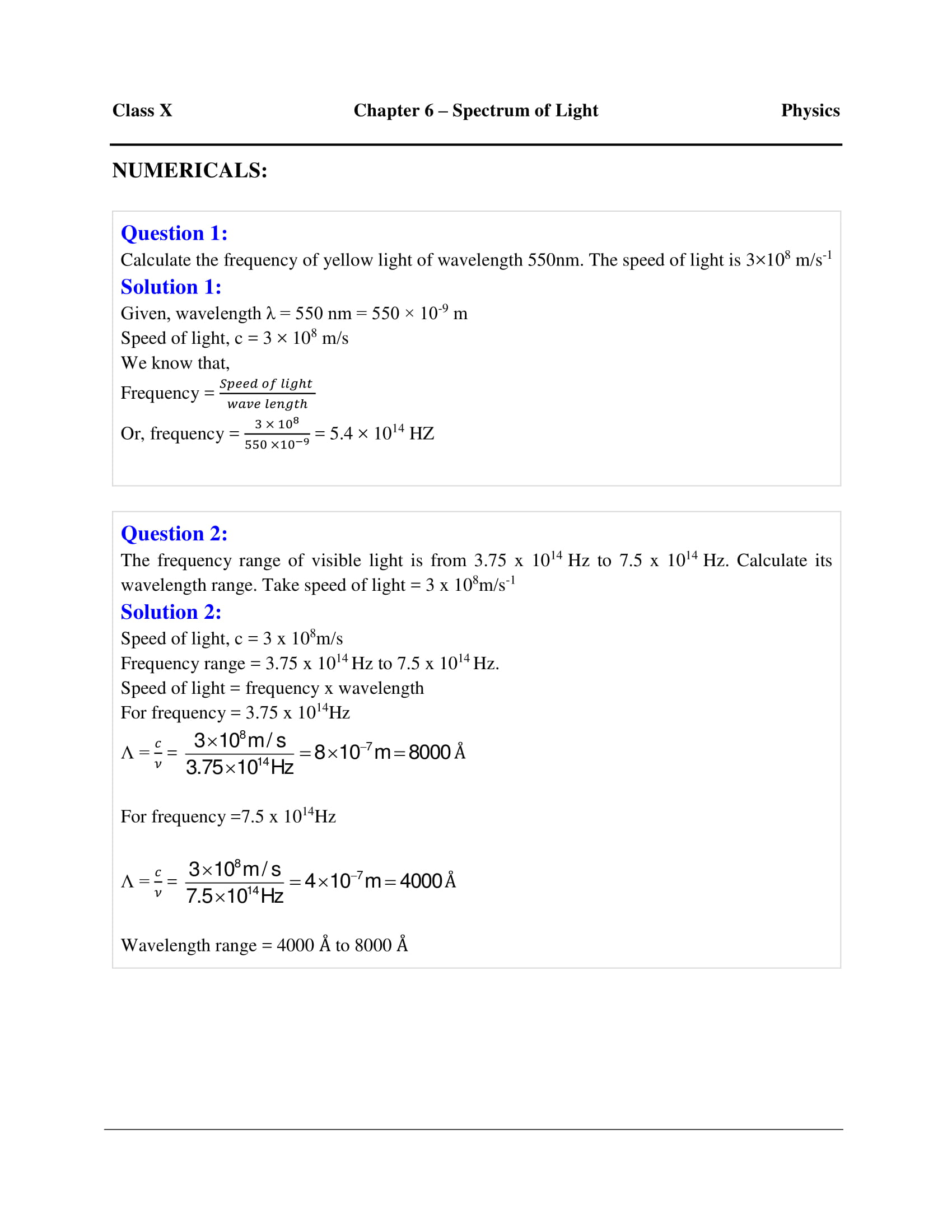

Calculate the frequency of yellow light of wavelength 550 nm. The speed of light is 3 × 108 m s-1.
Wavelength λ = 550 nm
= 550 × 10-9 m
Speed of light, C = 3 × 108 m / s
We know that
Frequency = Speed of light / Wavelength
Frequency = (3 × 108) / (550 × 10-9)
Frequency = 5.4 × 1014 Hz
The frequency range of visible light is from 3.75 × 1014 Hz to 7.5 × 1014 Hz. Calculate its wavelength range. Take speed of light = 3 × 108 m s-1
Speed of light, c = 3 × 108 m / s
Frequency range = 3.75 × 1014 Hz to 7.5 × 1014 Hz
Speed of light = frequency × wavelength
For frequency = 3.75 × 1014 Hz
λ = c / v
λ = (3 × 108 m / s) / (3.75 × 1014 Hz)
λ = 8 × 10-7
λ = 8000
For frequency = 7.5 × 1014 Hz
λ = c / v
λ = (3 × 108 m / s) / (7.5 × 1014 Hz)
λ = 4 × 10-7 m
λ = 4000
Therefore wavelength range is 4000to 8000
Exercise 6(b) Page no: 144

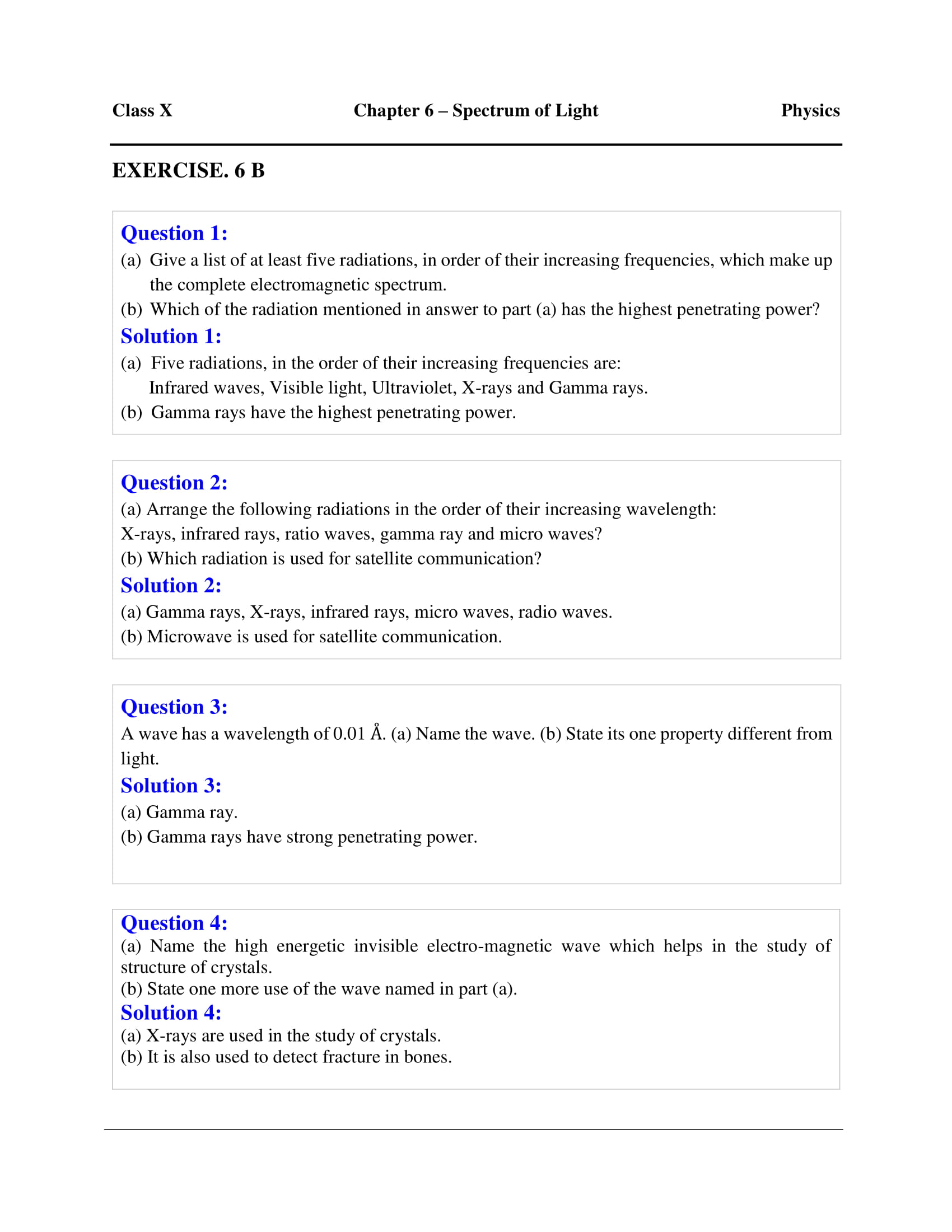

(a) Give a list of at least five radiations, in the order of their increasing wavelength, which make up the complete electromagnetic spectrum.
(b) Name the radiation mentioned by you in part (a) which has the highest penetrating power.
The complete electromagnetic spectrum in the increasing order of their wavelength is
(i) Gamma rays
(ii) X – rays
(iii) Ultraviolet rays
(v) Infrared radiations
(b) Gamma rays have the highest penetrating power.
(a) Arrange the following radiations in the order of their increasing wavelength:
X-rays, infrared rays, radio waves, gamma rays and microwaves.
(b) Name the radiation which is used for satellite communication?
(a) Radiations in the order of their increasing wavelength are
(i) Gamma rays
(ii) X- rays
(iii) Infrared rays
(v) Radio waves
(b) Microwaves are used for satellite communication
A wave has a wavelength of 10-3 nm (a) Name the wave (b) State it’s one property different from light.
(a) Gamma rays have a wavelength of 10-3 nm
(b) Gamma rays have large penetrating power
A wave has wavelength 50
(a) Name the wave.
(b) State its speed in vacuum
(c) State its one use.
(a) An electromagnetic wave having wavelength 50is X – rays
(b) Speed of an electromagnetic wave in vacuum is 3 × 108 m / s
(c) Since, they are stopped by bones, they are used for the detection of fracture in bones, teeth etc and for diagnostic purposes such as CAT scan in medical science.
(a) Name the high energetic invisible electromagnetic wave which helps in the study of the structure of crystals.
(b) State one more use of the wave named in part (a).
(a) X-rays are used in the study of crystals
(b) It is also used in detection of fracture in bones, teeth.
State the name and the range of wavelength of the invisible electromagnetic waves beyond the red end of the visible spectrum.
The electromagnetic waves beyond the red extreme of the visible light has certain radiations which produce a strong heating effect, are known as infrared radiations.
Range of wavelength is 8000to 107
Name three radiations and their wavelength range which are invisible and beyond the violet end of the visible spectrum.
The three rays which are invisible beyond the violet end of the visible spectrum are
(i) Gamma rays
(iii) Ultraviolet rays
(i) Gamma rays – below 0.01 nm
(ii) X-rays – 0.01 – 10 nm
(iii) Ultraviolet rays – 10 – 400 nm

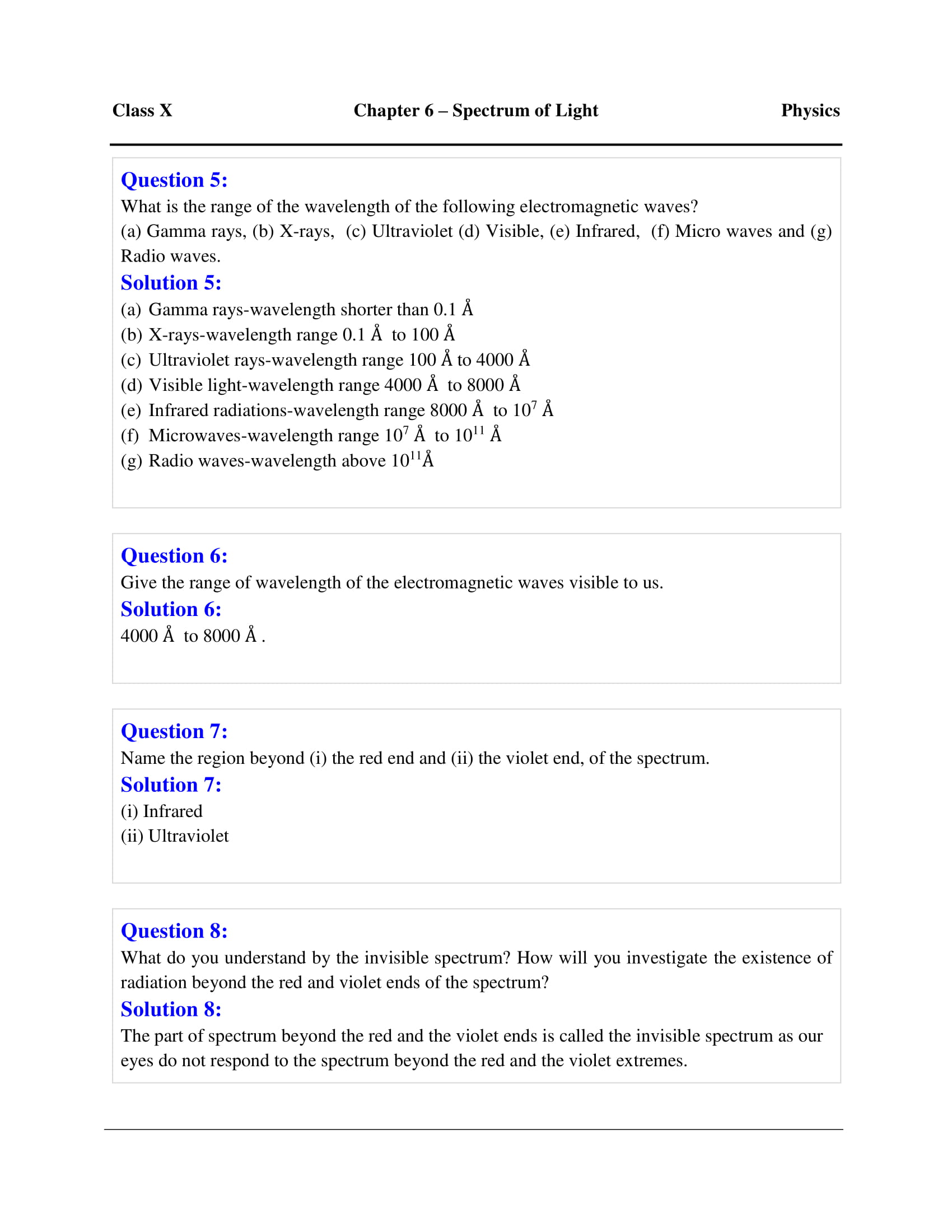

Give the range of wavelength of the electromagnetic waves visible to us.
The wavelength 4000to 8000of the electromagnetic waves visible to us.
Name the region beyond (i) the red end and (ii) the violet end, of the spectrum.
(i) Beyond the red end of the spectrum lies the region known as infrared
(ii) Beyond the violet end of the spectrum lies the region known as ultraviolet
What do you understand by the invisible spectrum?
The part of spectrum beyond the red extreme and the violet extreme to which our eyes do not respond is called the invisible spectrum
Name the radiation which can be detected by (a) a thermopile (b) a solution of silver chloride.
(a) Infrared radiations can be detected by thermopile
(b) Ultraviolet radiations can be detected by silver chloride because in their presence silver chloride becomes dark.

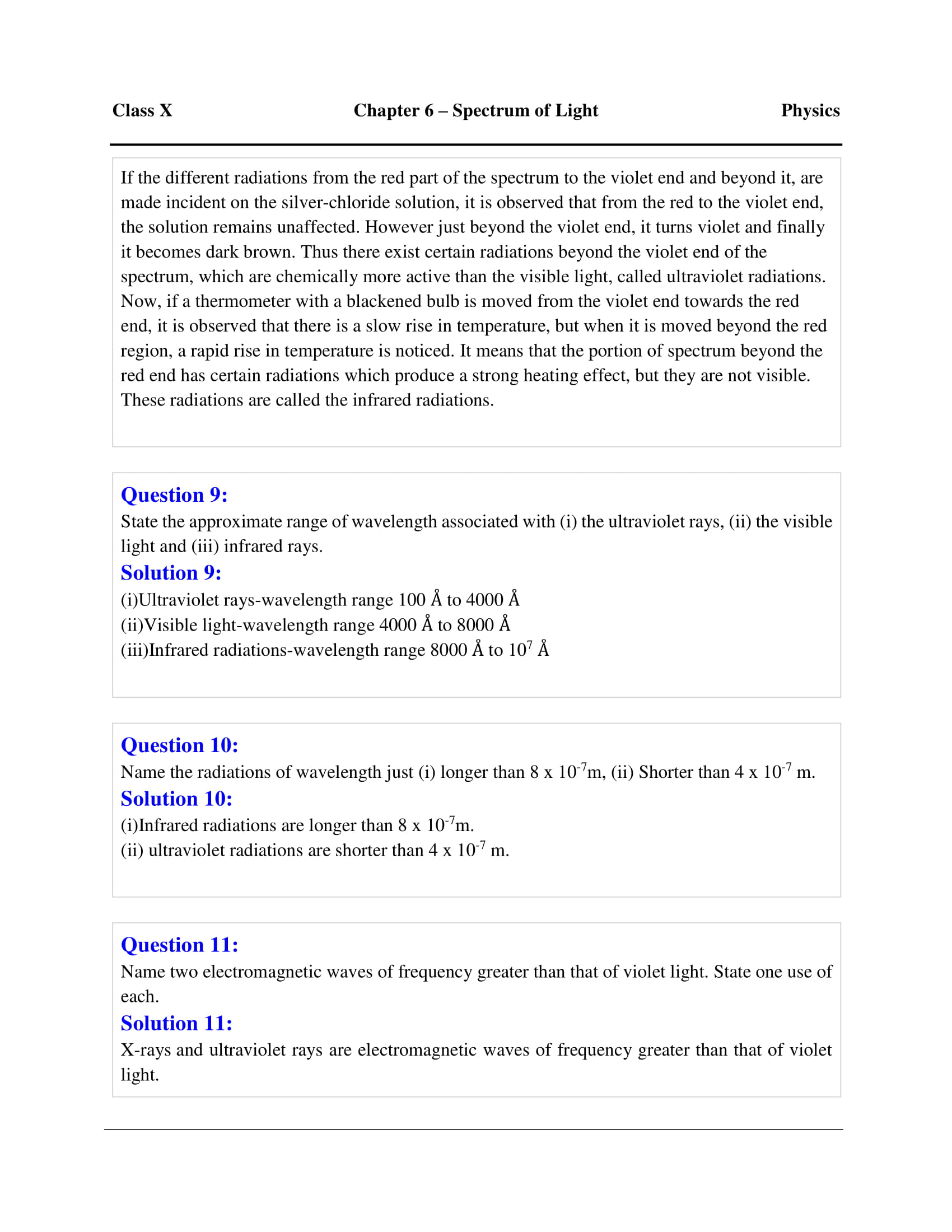

State the approximate range of wavelength associated with (a) the ultraviolet rays, (b) the visible light, and (c) infrared rays.
(a) Ultraviolet rays – wavelength range 100to 4000
(b) Visible light – wavelength range 4000to 8000
(c) Infrared radiations – wavelength range 8000to 107
Name the radiations of wavelength just (a) longer than 8 × 10-7 m, (b) shorter than 4 × 10-7 m
(i) Infrared radiation is longer than 8 × 10-7 m
(ii) Ultraviolet radiations are shorter than 4 × 10-7 m
Name two electromagnetic waves of wavelength smaller than that of violet light. State one use of each.
Ultraviolet radiations and X-rays are the electromagnetic waves of wavelength smaller than that of violet light.
Wavelength of ultraviolet radiations – 100to 4000
Wavelength of X-rays – 0.1to 100
Ultraviolet radiations are used for detecting purity of gems, eggs, ghee etc.
X-rays are used for detecting fracture in bones, teeth, etc

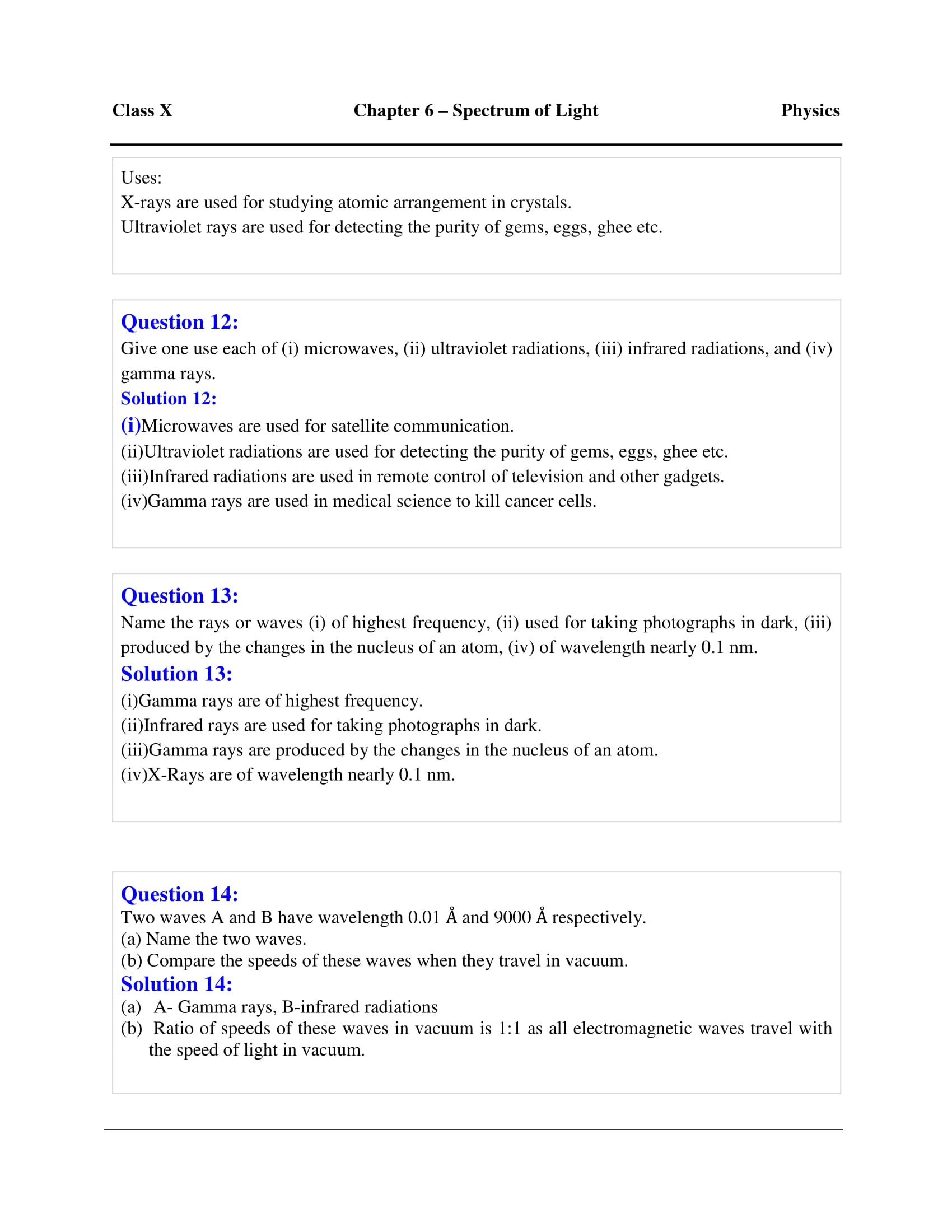

Give one use each of (a) microwaves, (b) ultraviolet radiations, (c) infrared radiations, and (d) gamma rays.
(a) Microwaves are used in radar communication
(b) Ultraviolet radiations are used in producing vitamin D in the food of plants and animals.
(c) Infrared radiations are used in remote control of television and other gadgets.
(d) Gamma rays are used in the industry to check welding.
Name the two waves (a) of lowest wavelength, (b) used for taking photographs in dark, (c) produced by the changes in the nucleus of an atom, (d) of wavelength nearly 0.1 nm
(a) Gamma rays have the lowest wavelength
(b) Infrared rays are used for taking photographs in the dark
(c) Gamma rays are the waves produced by the changes in the nucleus of an atom
(d) X-rays have wavelength nearly 0.1 nm
Two waves A and B have wavelength of 0.01 and 9000 respectively.
(a) Name the two waves.
(b) Compare the speeds of these waves when they travel in a vacuum.
(a) Wave A – Gamma rays and Wave B – Infrared radiations
(b) All electromagnetic waves travel with the speed of light in vacuum. Thus the ratio of speeds of these waves in a vacuum is 1: 1

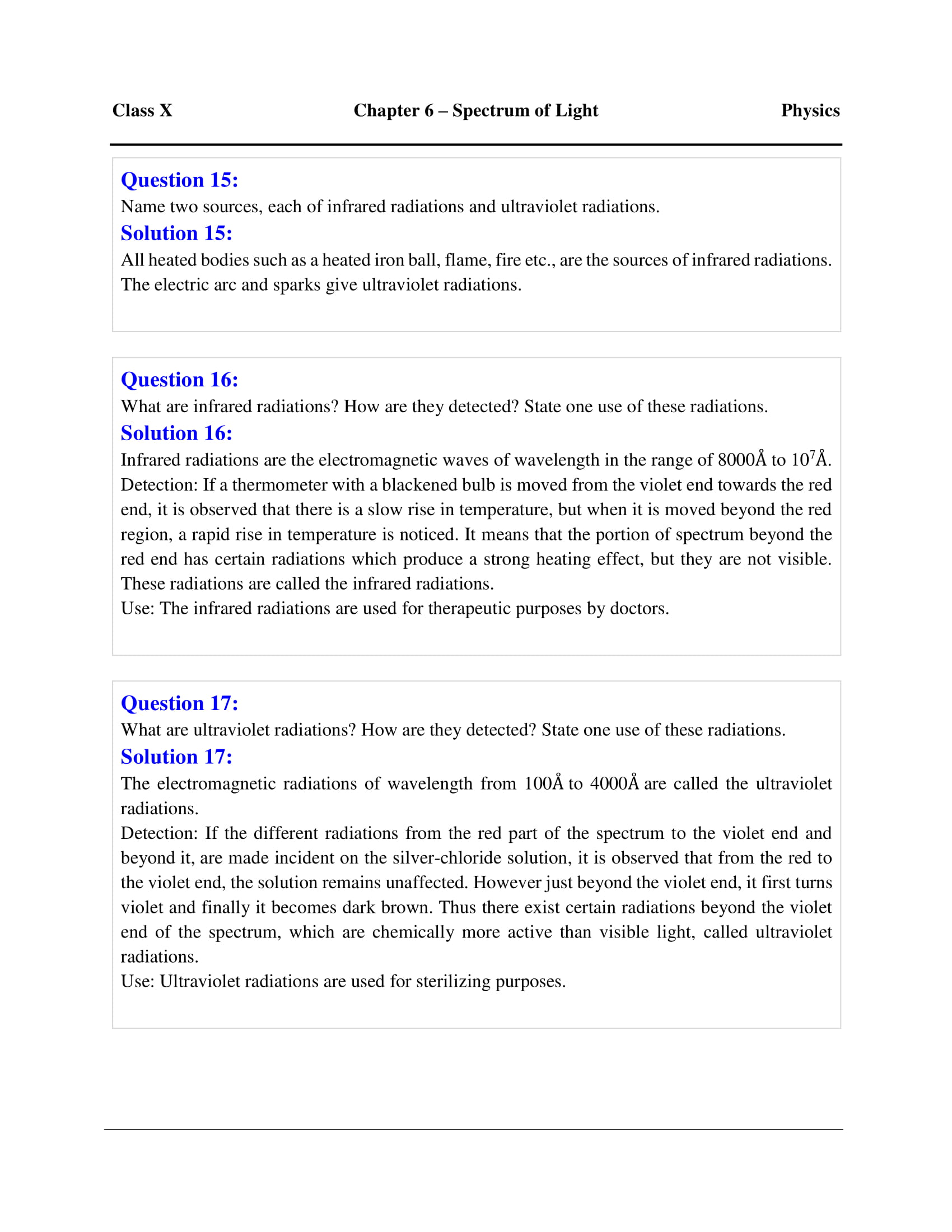

Name two sources, each of infrared radiations and ultraviolet radiations.
All red hot bodies such as a heated iron ball, flame, fire, etc. are the sources of infrared radiations.
The electric arc and sparks give ultraviolet radiations.
What are infra-red radiations? How are they detected? State one use of these radiations.
The electromagnetic waves of wavelength in the range of 8000to 107 are called infrared radiations
If a thermometer with a blackened bulb is moved from the violet end towards the red end of the spectrum, it is observed that there is a very slow rise in temperature, but when it is moved beyond the red extreme, a rapid rise in temperature is noticed. It means that the region of spectrum beyond the red extreme has certain radiations which produce a strong heating effect which are invisible. These radiations are called the infrared radiations.
Infrared radiations are used as signals during the war as they are not visible and they are not absorbed much in the medium.
What are ultraviolet radiations? How are they detected? State one use of these radiations
Ultraviolet radiations are electromagnetic radiations of wavelength from 100to 4000
Detection: If silver chloride solution is exposed to the electromagnetic waves starting from the red to the violet end and then beyond it. From the red end to the violet end it is observed that the solution remains almost unaffected. But beyond the violet end, the solution first turns violet and finally it becomes dark brown. Hence, there exist certain radiations beyond the violet extreme of the spectrum which are chemically more active than visible light. These radiations are called ultraviolet radiations.
Ultraviolet radiations are used for detecting the purity of gems, eggs, ghee etc.

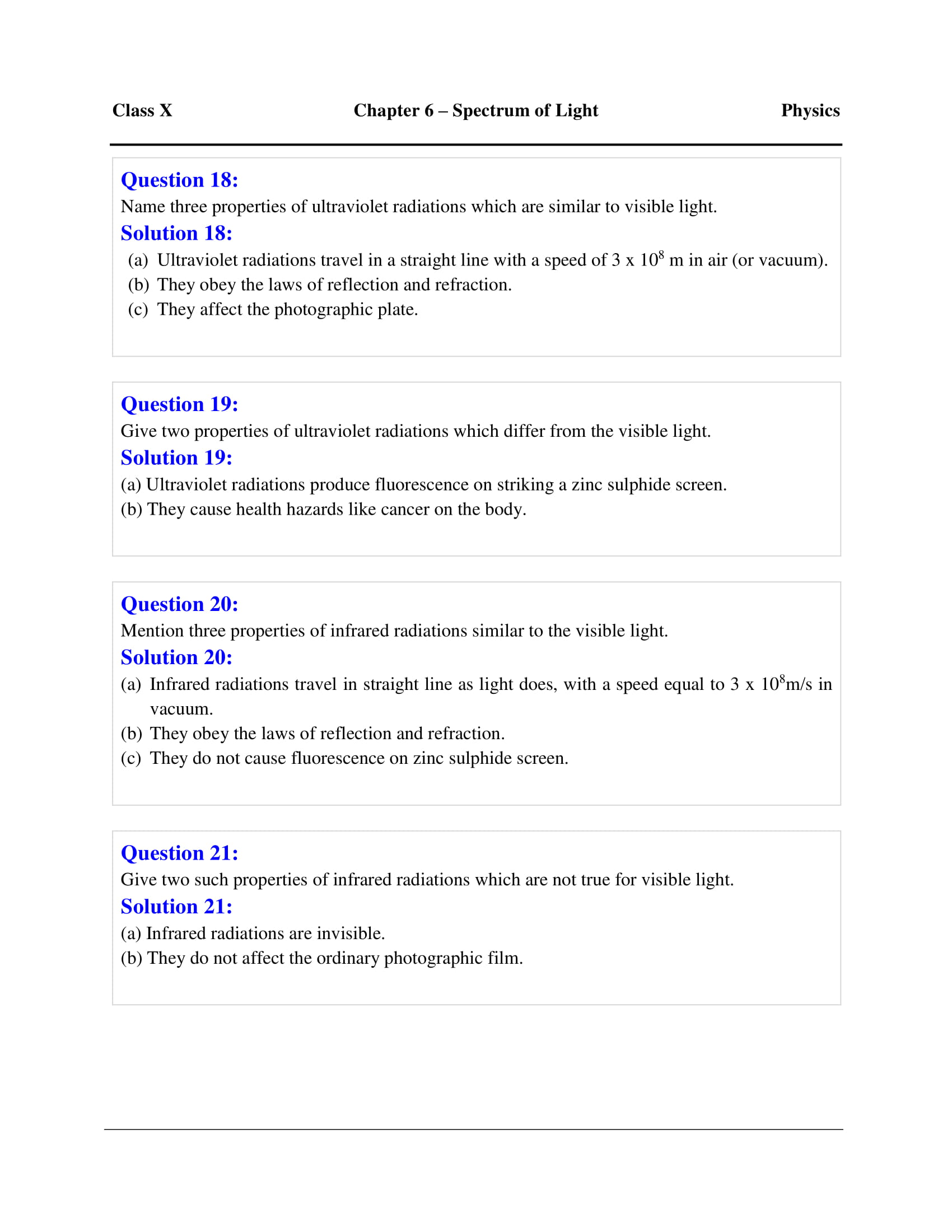

Name three properties of ultraviolet radiations which are similar to the visible light.
(a) Ultraviolet radiations travel in a straight line with a speed of 3 × 108 m s-1 in air or vacuum
(b) They obey the laws of reflection and refraction
(c) They strongly affect the photographic plate as they are chemically more active than the visible light.
Give two properties of ultraviolet radiations which differ from the visible light.
Two properties of ultraviolet radiations different from the visible light
(a) Ultraviolet radiations can pass through quartz, but they are absorbed by the glass.
(b) They are usually scattered by the dust particles present in the earth’s atmosphere
Mention three properties of infrared radiations similar to the visible light.
(a) Infrared radiations travel in straight lines like light, with a speed equal to 3 × 108 m s-1 in vacuum
(b) They obey the laws of reflection and refraction
(c) They are unaffected by electric and magnetic fields
Give two properties of infrared radiations which differ from the visible light.
Two properties of infrared radiation different from the visible light
(a) They are absorbed by glass, but they are not absorbed by rock salt.
(b) They are detected by their heating property using a thermopile or a blackened bulb thermometer.
Name the material of prism required for obtaining the spectrum of (a) ultraviolet light, (b) infrared radiations
(a) A quartz prism is required for obtaining the spectrum of ultraviolet light.
(b) Infrared radiations is obtained by passing radiations through a rock salt prism.
Name the radiations which are absorbed by the greenhouse gases in the earth’s atmosphere.
Major greenhouse gases which are present in the earth’s atmosphere are water vapour, carbon dioxide, methane and ozone.
Infrared radiations are absorbed by the greenhouse gases in the earth’s atmosphere.
State one harmful effect each of the (a) ultraviolet and (b) infrared radiations.
(a) Ultraviolet radiations cause health hazards like skin cancer if the human body is exposed to them for a long period.
(b) Infrared radiations cause skin burns.

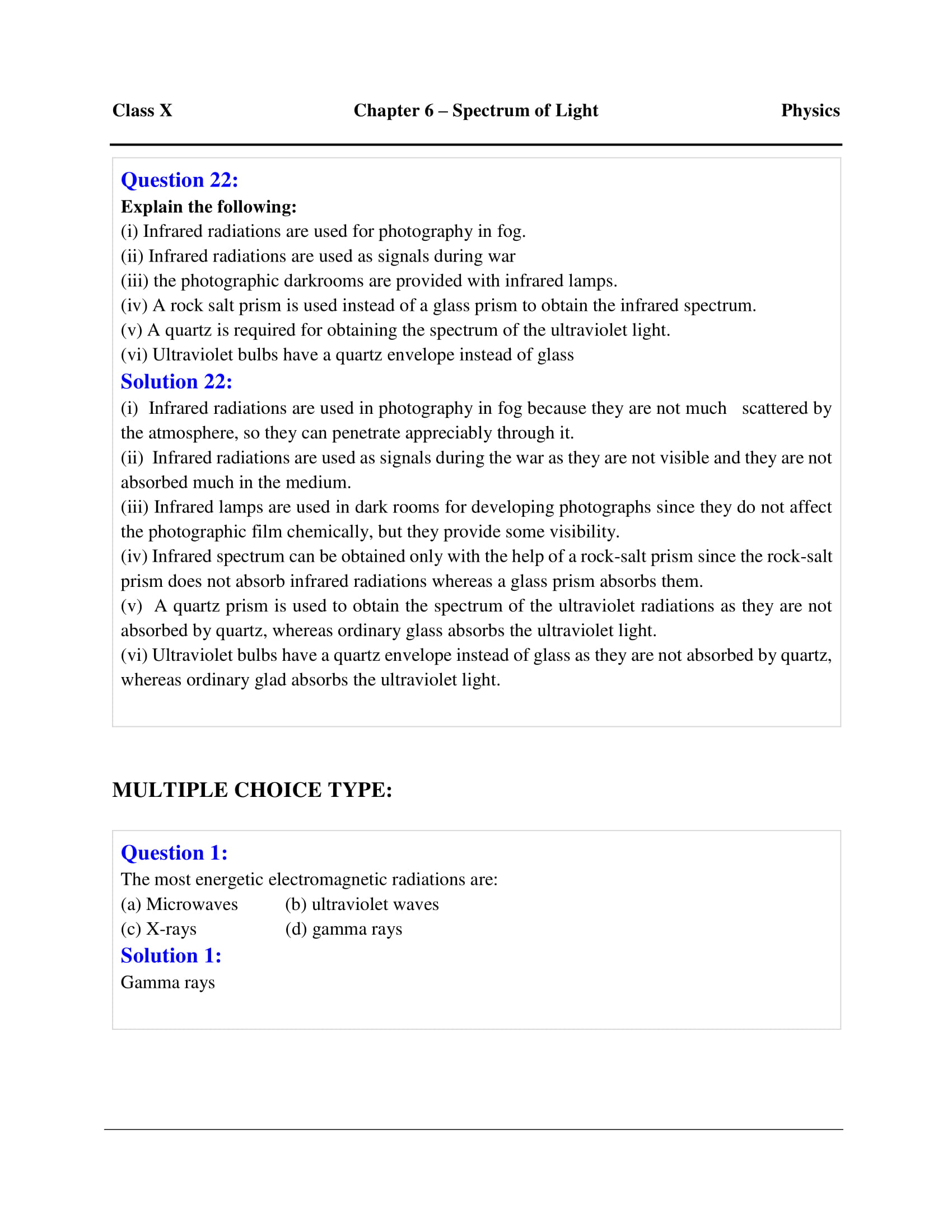

Give a reason for the following:
(i) Infrared radiations are used for photography in fog
(ii) Infrared radiations are used for signals during the war.
(iii)The photographic darkrooms are provided with infrared lamps.
(iv)A rock salt prism is used instead of a glass prism to obtain the infrared spectrum.
(v)A quartz prism is required for obtaining the spectrum of the ultraviolet light.
(vi)Ultraviolet bulbs have a quartz envelope instead of glass.
(i) Infrared radiations are used for photography in fog because they are not much scattered, so they can penetrate appreciably through it.
(ii) Infrared radiations are used as signals during the war as they are not visible and they are not absorbed much in the medium.
(iii) Infrared lamps are used in dark rooms for developing photographs as they provide some visibility without affecting the photographic film.
(iv) Infrared spectrum can be obtained only by using a rock salt prism because the rock salt prism does not absorb the infrared radiations, whereas a glass prism absorbs them.
(v) A quartz prism is used for obtaining the spectrum of the ultraviolet light as they can pass through quartz whereas ordinary glass absorbs the ultraviolet light.
(vi) Ultraviolet bulbs have a quartz envelope instead of glass as they are not absorbed by quartz whereas ordinary glass absorbs the ultraviolet light.
MULTIPLE CHOICE TYPE
The most energetic electromagnetic radiations are:
(b) ultraviolet waves
(c) X- rays
(d) gamma rays
The most energetic electromagnetic radiations are gamma rays

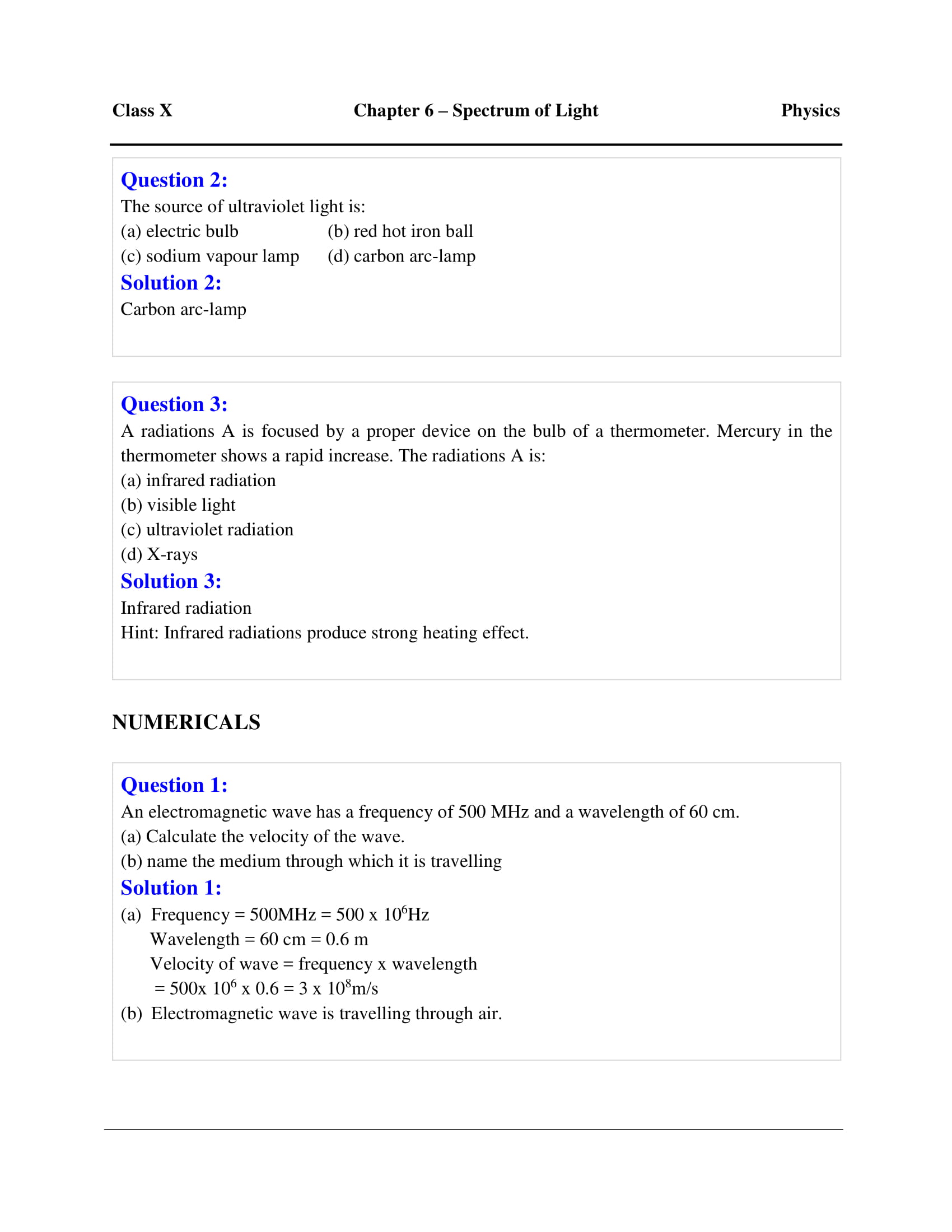

The source of ultraviolet light is:
(a) electric bulb
(b) red hot iron ball
(c) sodium vapour lamp
(d) carbon arc-lamp
The source of ultraviolet light is carbon arc-lamp
A radiation P is focused by a proper device on the bulb of a thermometer. Mercury in the thermometer shows a rapid increase. The radiation P is
(a) infrared radiation
(b) visible light
(c) ultraviolet radiation
The radiation P is infrared radiation
An electromagnetic wave has a frequency of 500MHz and a wavelength of 60cm.
(a) Calculate the velocity of the wave.
(b) Name the medium through which it is travelling.
(a) Frequency = 500 MHz
= 500 × 106 Hz
Wavelength = 60 cm
= 0.6 m
Velocity of wave = frequency × wavelength
= 500 × 106 × 0.6
= 3 × 108 m / s
(b) Electromagnetic wave is travelling through air.

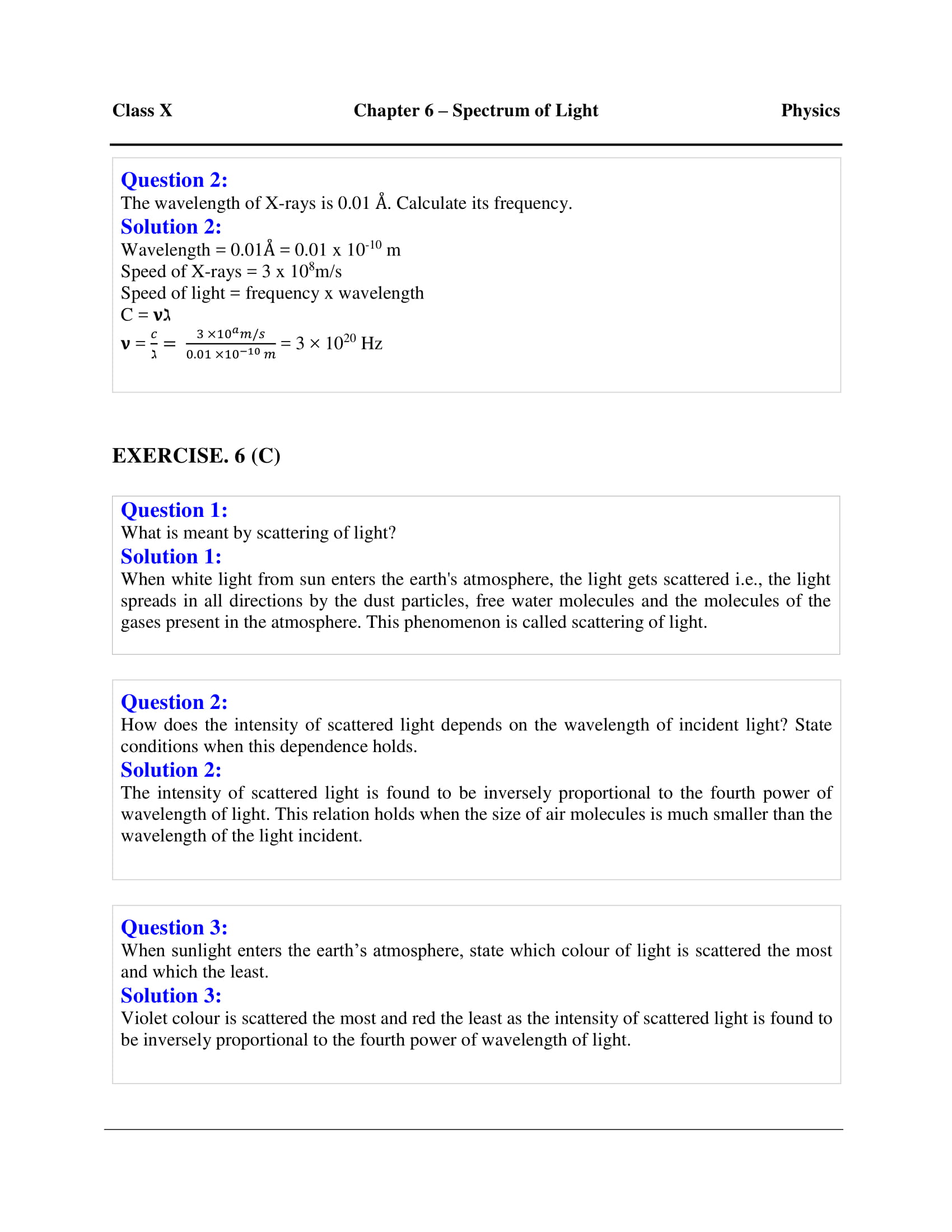

The wavelength of X-rays is 0.01 . Calculate its frequency.
Wavelength = 0.01
= 0.01 × 10-10 m
Speed of X-rays = 3 × 108 m / s
Speed of light = frequency × wavelength
c = v / λ
v = cλ
v = (3 × 108 m / s) / (0.01 × 10-10 m)
v = 3 × 1020 Hz
Exercise 6(c) page no: 147
What is meant by scattering of light?
When white light from the sun enters the earth’s atmosphere, it gets scattered or the light spreads in all directions by the dust particles and air molecules present in the atmosphere. This phenomenon is called the scattering of light.
How does the intensity of scattered light depend on the wavelength of incident light? State conditions when this dependence holds.
The intensity of scattered light is found to be inversely proportional to the fourth power of the wavelength. This relation holds when the air molecules is smaller in size than the wavelength of incident light.
When sunlight enters the earth’s atmosphere, a state which colour of light is scattered the most and which the least.
As the intensity of scattered light is inversely proportional to the fourth power of wavelength of light. Hence the violet colour is scattered the most while red the least.
A beam of blue, green and yellow light passes through the Earth’s atmosphere. Name the colour which is scattered (a) the least (b) the most
(a) Out of three radiations, yellow light has the highest wavelength. Hence, it gets scattered the least.
(b) Out of three radiations, blue light has the lowest wavelength. Hence, it gets scattered the most.
Which colour of white light is scattered the least? Give reason.
The light having the longest wavelength is scattered the least. Hence, red coloured light is scattered the least.
The danger signal is red. Why?
The wavelength of red light is longest in the visible light. So the light of red colour is scattered least by the air molecules of the atmosphere. Hence when compared to other colours the light of red colour can penetrate to a longer distance. Thus red light can be seen from the farthest distance in comparison to the light of other colours having the same intensity. Hence red light is used for danger signal so that the signal may be visible from the far distance even in fog, etc.
Since there is no atmosphere on the moon, therefore there is no scattering of light on the moon surface. Hence to an observer on the surface of the moon, except the light reaching directly from the sun, no light reaches the eyes of the observer. Thus the sun will appear black to an observer on the moon’s surface.
What characteristic property of light is responsible for the blue colour of the sky?
As the blue colour is scattered the most due to its short wavelength. Scattering property of light is responsible for the blue colour of the sky.
The colour of the sky, in the direction of the sun, is blue. Explain.
As light travels through the atmosphere, it gets scattered in different directions by the air molecules present in its path. The blue light due to its short wavelength is scattered more than the red light of long wavelength. Thus the light directly from the sun reaching our eye is rich in red colour while the light from all the other directions reaching our eye is the scattered blue light. Therefore the sky in the direction of the sun is blue.

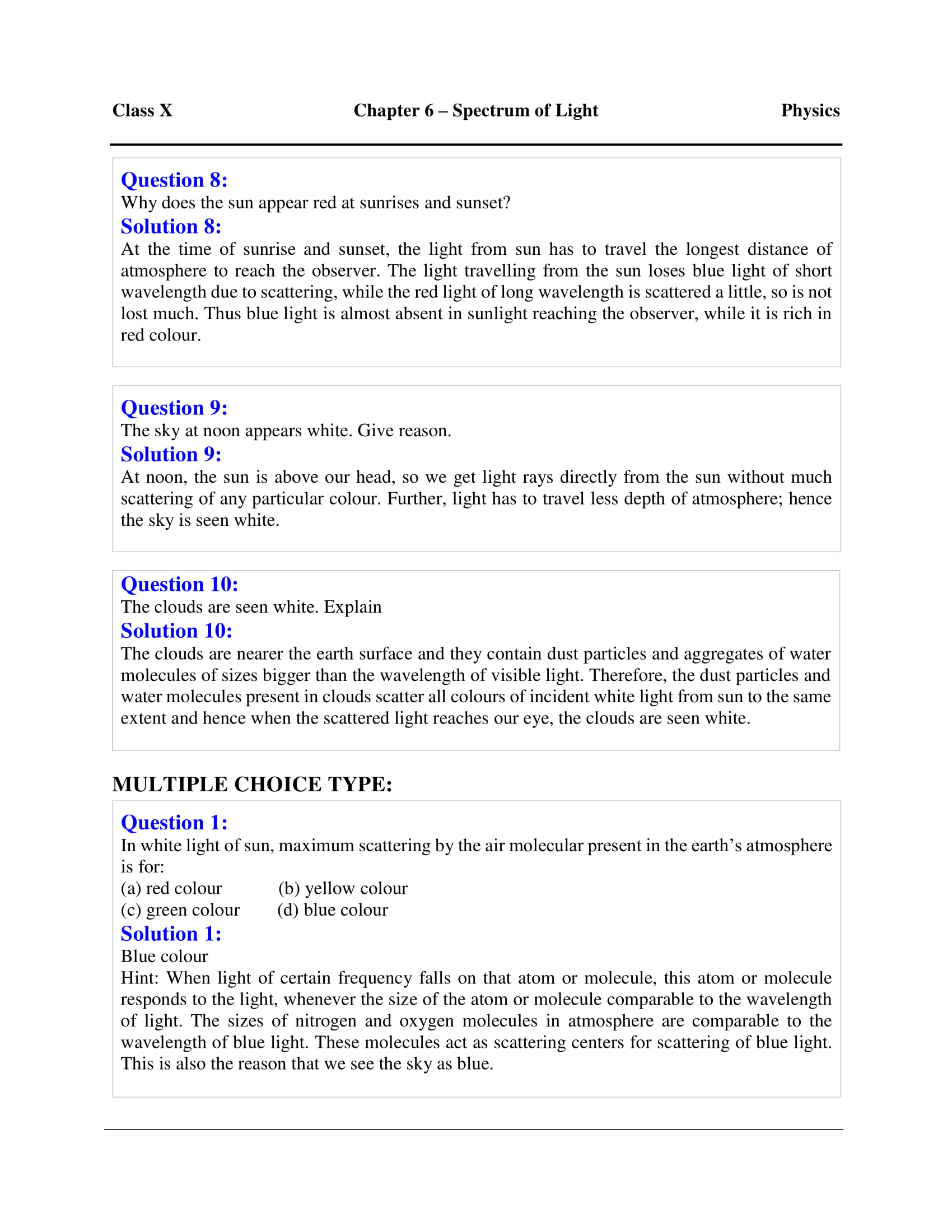

Why does the sun appear red at sunrise and sunset?
The light from the sun has to travel the longest distance of atmosphere to reach the observer at the time of sunrise and sunset. Since blue light of short wavelength is lost due to scattering while the red light of long wavelength is scattered a little and is not lost much. Thus blue light is almost absent in sunlight reaching the observer and only the red light reaches us.
The sky at noon appears white. Give reason.
At noon the sun is overhead and the light travels a relatively shorter distance through the atmosphere to reach the earth. Due to the short distance of light, only blue light is scattered and most of the light is not scattered. Hence the sun appears white.
The clouds are seen as white. Explain.
The clouds are nearer the earth surface and contain dust particles. The water droplets present in clouds are bigger than the wavelength of all seven colours of light. Hence the water droplets scatter the entire spectrum. Therefore the clouds appear white.
Give reason why the smoke from a fire looks white.
Smoke appears white in colour because the size of the smoke particles are bigger than the wavelength of the light. White light is a mixture of a large number of wavelength but they scatter at the same extent since the condition of scattering is that size of particles should be smaller than the wavelength of light. Hence the scattered light appears white.
MULTIPLE CHOICE TYPE
In the white light of the sun, maximum scattering by the air molecules present in the earth’s atmosphere is for:
(a) red colour
(b) yellow colour
(c) green colour
(d) blue colour
In the white light of the sun, maximum scattering by the air molecules present in the earth’s atmosphere is for blue colour.
To an astronaut in a space-ship, the earth appears:
To an astronaut in a space-ship, the earth appears blue
Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum
Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum discusses in detail electromagnetic spectrum and its composition. This chapter includes topics such as deviation produced by a triangular prism, colours in white light with their wavelength and frequency range, dispersion of white light through a prism and formation of a spectrum. In order to obtain an in-depth understanding of the chapter, students are advised to practise Selina Solutions regularly.
List of subtopics covered in Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum
|6.1||Deviation produced by a triangular prism|
|6.2||Colours in white light with their wavelength and frequency range|
|6.3||Dispersion of white light through a prism and formation of a Spectrum|
|6.5||Properties and uses of different radiations of electromagnetic spectrum|
|6.6||Distinction between the ultraviolet, visible and infrared radiations|
|6.7||Scattering of Light|
|6.8||Some applications of scattering|
List of Exercises
|Name of the exercise||Page number|
Key Features of Selina Solutions Concise Physics Class 10 Chapter 6 Spectrum
- BYJU’S experts have created the Selina Solutions in a lucid and logical manner
- Selina Solutions improves the students understanding capacity while solving
- Selina Solutions are one of the best tools to follow during examinations
- Students will steadily enhance their skills pertaining to the subject by practising Selina Solutions
The given solutions are as per the 2019-20 Concise Selina textbook. The Selina Solutions for the academic year 2020-21 will be updated soon.
