Redox Reactions

Redox reactions are oxidation-reduction chemical reactions in which the reactants undergo a change in their oxidation states. The term ‘redox’ is a short form of reduction-oxidation. All the redox reactions can be broken down into two different processes – a reduction process and an oxidation process.

The oxidation and reduction reactions always occur simultaneously, such class of chemical reactions was named as the redox reaction or Oxidation-Reduction Reaction. The substance getting reduced in a chemical reaction is known as the oxidizing agent, while a substance that is getting oxidized is known as the reducing agent.

Table of Contents

What are Redox Reactions?

A redox reaction can be defined as a chemical reaction in which electrons are transferred between two reactants participating in it. This transfer of electrons can be identified by observing the changes in the oxidation states of the reacting species.

An illustration detailing the electron transfer between two reactants in a redox reaction is provided below.

Redox Reactions (Oxidation - Reduction Reaction)

In the illustration provided above, it can be observed that the reactant an electron was removed from the reactant A, and this reactant is oxidized. Similarly, reactant B was handed an electron and was therefore reduced.

The loss of electrons and the corresponding increase in the oxidation state of a given reactant is called oxidation. The gain of electrons and the corresponding decrease in the oxidation state of a reactant is called reduction.

Electron-accepting species which tend to undergo a reduction in redox reactions are called oxidizing agents. An electron-donating species which tends to hand over electrons can be referred to as a reducing agent. These species tend to undergo oxidation. It can be noted that any redox reaction can be broken down into two half-reactions, namely the oxidation half-reaction and the reduction half-reaction.

When writing these half-reactions separately, each of them must be balanced in a way that all the electrons are accounted for.

Types of Redox Reactions

The different types of redox reactions are:

  • Decomposition Reaction
  • Combination Reaction
  • Displacement Reaction
  • Disproportionation Reactions

Decomposition Reaction

This kind of reaction involves the breakdown of a compound into different compounds. Examples of these types of reactions are:

  • 2NaH → 2Na + H2
  • 2H2O → 2H2+O2
  • Na2CO3 → Na2O + CO2

All the above reactions result in the breakdown of smaller chemical compounds in the form of AB → A + B

But, there is a special case that confirms that all the decomposition reactions are not redox reactions. For example CaCO3 → CaO + CO2

Combination Reaction

These reactions are the opposite of decomposition reaction and hence involve the combination of two compounds to form a single compound in the form of A + B → AB. For example:

  • H2 + Cl2 → 2HClC+O2→CO2
  • 4Fe+3O2→2Fe2O3

Displacement Reaction

In this kind of reaction, an atom or an ion in a compound is replaced by an atom or an ion of another element. It can be represented in the form of X + YZ → XZ + Y. Further displacement reaction can be categorized into

  • Metal displacement Reaction
  • Non-metal displacement Reaction

Metal Displacement

In this type of reaction, a metal present in the compound is displaced by another metal. These types of reactions find their application in metallurgical processes where pure metals are obtained from their ores. For example CuSO4+Zn→Cu+ZnSO4

Non-Metal Displacement

In this type of reaction, we can find a hydrogen displacement and sometimes rarely occurring reactions involving oxygen displacement.

Disproportionation Reactions

The reactions in which single reactant is oxidized and reduced is known as Disproportionation reactions. For example: P4 + 3NaOH + 3H2O → 3NaH2PO2 + PH3

Examples of Redox Reactions

A few examples of redox reactions along with their oxidation and reduction half-reactions are provided in this subsection.

Example 1: Reaction Between Hydrogen and Fluorine

In the reaction between hydrogen and fluorine, the hydrogen is oxidized whereas the fluorine is reduced. The reaction can be written as follows.

H2 + F2 → 2HF

The oxidation half-reaction is: H2 → 2H+ + 2e

The reduction half-reaction is: F2 + 2e → 2F

The hydrogen and fluorine ions go on to combine in order to form hydrogen fluoride.

Example 2: Reaction Between Zinc and Copper

This is a type of metal displacement reaction in which copper metal is obtained when zinc displaces the Cu2+ion in the copper sulfate solution as shown in the reaction below.

Zn (s) + CuSO4 (aq) → ZnSO4 (aq) + Cu (s)

The oxidation half-reaction can be written as: Zn → Zn2+ + 2e

The reduction half-reaction can be written as: Cu2+ + 2e → Cu

Example of Redox Reaction

Thus, copper is displaced from the copper sulfate solution by zinc in a redox reaction.

Example 3: Reaction between Iron and Hydrogen Peroxide

Fe2+ is oxidized to Fe3+ by hydrogen peroxide when an acid is present. This reaction is provided below.

2Fe2+ + H2O2 + 2H+ → 2Fe3+ + 2H2O

Oxidation half-reaction: Fe2+ → Fe3+ + e

Reduction half-reaction: H2O2 + 2e → 2 OH

Thus, the hydroxide ion formed from the reduction of hydrogen peroxide combines with the proton donated by the acidic medium to form water.

Oxidation and Reduction Reaction

In order to understand redox reactions, let us first deal with oxidation and reduction reactions individually.

What is Oxidation Reaction?

Oxidation may be defined as loss of electrons from a substance, the other definition of oxidation reactions states that addition of oxygen or the more electronegative element or removal of hydrogen or the more electropositive element from a substance is called as an oxidation reaction.

Following are some examples of oxidation reactions:

2S(s) + O2 (g) → SO2 (g) CH4 (g) + 2O2 (g) → CO2 (g) + 2H2O (l)

What is Reduction Reaction?

Like oxidation reactions, reduction reactions are defined as the gain of electrons. Any substance that gains electron during a chemical reaction gets reduced.

In other forms, the reduction reaction is stated as the addition of hydrogen or more electropositive element or removal of a more electronegative element or oxygen from a substance.

Below are some examples of reduction reactions:

  • 2CH2CH2 (g) + H2 (g) → CH3CH3 (g)
  • 2FeCl3 (aq) + H2 (g) → 2FeCl2 (aq) + 2HCl (aq)

Now if we closely examine the above reaction we would find that all the reactions above have both, reduction and oxidation reactions.

The reaction in which FeCl3 is getting reduced as electronegative element chlorine is being removed from it. While hydrogen is getting oxidized due to the addition of chlorine, an electronegative element, in the same reaction.

Oxidizing and Reducing Agents

  • The substance (atom, ion, and molecule) that gains electrons and is thereby reduced to a low valency state is called Oxidising agent.
  • The substance that loses electrons and is thereby oxidised to a higher valency state is called a reducing agent.

Important Oxidizing Agents

  • Molecules made up of electronegative elements. Eg: O2, O3, and X2 (halogens)
  • Compounds containing an element which is in the higher oxidized state. Eg: KMnO4, K2Cv2O7, HNO3, KClo3
  • Oxides of metals and non-metals. Eg: MgO, CuO, CrO3, P4O10
  • Fluorine is the strongest oxidizing agent.

Important Reducing Agents

  • All metals, Eg: Na, Zn, Fe, Al
  • A few non-metals Eg: C, Hydrogen, S, P
  • Hydracids, Eg: HCl, HBr, HI, H2S
  • Few compounds containing an element in the lower oxidation state, Eg: FeCl2, FeSo4, SnCl2, Hg2Cl2
  • Metallic hydrides, Eg: NaH, LiH, CaH2, etc..
  • Organic compounds like HCOOH,

Lithium is the strongest reducing agent in the solution and Cesium is the strongest reducing agent in the absence of water. The substances which act as oxidizing as well as reducing agents are H2O2, SO2, H2SO3, HNO2, NaNO2

Reduction Potential of a Half-Reaction

Each of the half-reactions that make up a redox reaction has a standard electrode potential. This potential equals the voltage produced by an electrochemical cell in which the cathode reaction is the half-reaction considered, whereas the anode is a standard hydrogen electrode.

This voltage produced by the half-reactions is called their reduction potentials (denoted by E0red). The value of the reduction potential of a half-reaction is positive for the oxidizing agents that are stronger than H+ and negative for the ones that are weaker.

Examples of the reduction potentials of some species are +2.866 V for F2 and -0.763 V for Zn2+.

Identification of Oxidizing and Reducing Agents

  • If an element is in its higher possible oxidation state in a compound. It can function as an oxidising agent. Eg: KMnO4, K2Cr2O7, HNO3, H2SO4, HClO4
  • If an element is in its possible lower oxidation state in a compound, it can function as a reducing agent. Eg: H2S, H2C2O4, FeSO4, SnCl2
  • If a highly electronegative element is in its highest oxidation state, the compound will act as an oxidising agent.
  • If a highly electronegative element is in its lowest oxidation state the compound acts as a reducing agent.

Example: Identify oxidizing agent and reducing agent in the reactions.

  • \(2N{{a}_{2}}{{S}_{2}}{{O}_{3}}+{{I}_{2}}\to N{{a}_{2}}{{S}_{4}}{{O}_{6}}+2NaI\)
  • \(2FeC{{l}_{3}}+{{H}_{2}}S\to 2FeC{{l}_{2}}+S+2HCl\)
  • \(3Mg+{{N}_{2}}\to M{{g}_{3}}{{N}_{2}}\)
  • \(AgCN+C{{N}^{-}}\to {{\left[ Ag{{\left( CN \right)}_{2}} \right]}^{-}}\)

Solution

Oxidising agent

(Species reduced)

Reducing agent

(Species oxidised)

I2 Na2S2O3
FeCl3 H2S
N2 None
None None

It is not a redox reaction. In each of the following reactions indicate the species oxidised the species reduced, oxidant and reductant

    1. Write the skeleton reaction to represent the chemical change
    2. With the help of oxidation number of elements find out which element is undergoing oxidation/reduction.
    3. Add the electrons on right for oxidation and left for reduction
    4. Multiply with suitable integer such that the number of elections taken and lost are same.

Balancing Redox Reaction

There are two ways of balancing redox reaction. One method is by using the change in oxidation number of oxidizing agent and the reducing agent and the other method is based on dividing the redox reaction into two half reactions-one of reduction and other oxidation.

Example 1: Write the balanced redox equation when ferrous sulphate in treated with acidified (H2SO4) Potassium Permanganate.

Step I \(KMn{{O}_{4}}+{{H}_{2}}S{{O}_{4}}+FeS{{O}_{4}}\to {{K}_{2}}S{{O}_{4}}+MnS{{O}_{4}}+F{{e}_{2}}{{\left( S{{O}_{4}} \right)}_{3}}+{{H}_{2}}O\)

Step II

Thus here Mn+7 is reduced to Mn+2,

Balancing Redox Reaction by Oxidation State Method

This method is based on the fact that the number of electrons gained during the reduction reaction is equal to the number of electrons lost in oxidation.

Fe2+ is oxidised to Fe3+ Oxidation: \(2F{{e}^{2+}}\to Fe_{2}^{+3}+2{{e}^{-}}\) [oxidation]

Reduction: \(M{{n}^{+7}}+5{{e}^{-}}\to M{{n}^{+2}}\left[ {Re}duciton \right]\)

Multiply oxidation reaction with 5 and reduction reaction by 2.

By substituting coefficient \(2KMn{{O}_{4}}+10FeS{{O}_{4}}+{{H}_{2}}S{{O}_{4}}\to {{K}_{2}}S{{O}_{4}}+5F{{e}_{2}}{{\left( S{{O}_{4}} \right)}_{3}}+2MnS{{O}_{4}}+{{H}_{2}}O\)

Balance \(SO_{4}^{-2}\) by multiplying with 8

⇒ \(2KMn{{O}_{4}}+10FeS{{O}_{4}}+8{{H}_{2}}S{{O}_{4}}\to {{K}_{2}}S{{O}_{4}}+5F{{e}_{2}}{{\left( S{{O}_{4}} \right)}_{3}}+2MnS{{O}_{4}}+8{{H}_{2}}O\)

Balancing Redox Reaction by Ion electron Method (Half reaction method)

Steps:

    1. Divide the complete reaction into two half reaction, one representing oxidation and other representing reduction.
    2. First balance other than ‘O’ and ‘H’ atoms.
    3. In acidic or neutral medium balance oxygen atoms by adding H2O molecule and balance H-atoms by adding H+ ions.
    4. In alkaline medium, oxygen atom are balanced by adding H2O molecule and an equal number of \(O{{H}^{\Theta }}\) ions are added on the opposite side, H+ atoms still unbalanced add OH
    5. Balance the charges by the addition of electrons.
    6. Multiply with suitable integer such that the number of electrons gets cancelled.
    7. Add both the half reactions, similar terms are subtracted and the final equation is written.

Problems on Balancing Redox Reactions

Example 1: Balance the following redox reaction in the acid medium by ion-electron method

Reduction half reaction Oxidation half reaction
\(MnO_{4}^{-}\to M{{n}^{+2}}\) [Balance other than ‘O’ and H] \({{I}^{-}}\to {{I}_{2}}\) \(2{{I}^{-}}\to {{I}_{2}}\)
\(MnO_{4}^{-}\to M{{n}^{+2}}+4{{H}_{2}}O\) [O atoms are balanced] \(2{{I}^{-}}\to {{I}_{2}}\)
\(MnO_{4}^{-}+8{{H}^{+}}\to M{{n}^{+2}}+4{{H}_{2}}O\) [H atoms are balanced] \(2{{I}^{-}}\to {{I}_{2}}\)
\(MnO_{4}^{-}+8{{H}^{+}}+5{{e}^{-}}\to M{{n}^{+2}}+4{{H}_{2}}O\) [Charges are balanced] \(2{{I}^{-}}\to {{I}_{2}}+2{{e}^{-}}\)
2×\([MnO_{4}^{-}+8{{H}^{+}}+5{{e}^{-}}\to M{{n}^{+2}}+4{{H}_{2}}O]\). 5×[\(2{{I}^{-}}\to {{I}_{2}}+2{{e}^{-}}\)]
\([2MnO_{4}^{-}+16{{H}^{+}}+10{{e}^{-}}\to 2M{{n}^{+2}}+8{{H}_{2}}O]\) \(10{{I}^{-}}\to 5{{I}_{2}}+10{{e}^{-}}\)

\(\overline{\underline{2MnO_{4}^{-}+16{{H}^{+}}+10{{I}^{-}}\to 2m{{n}^{+2}}+5{{I}_{2}}+8{{H}_{2}}O}}\)

Example 2: Balance the following redox reaction in acid medium by ion-electron method.

Reduction Half Reaction Oxidation Half Reaction
\(C{{r}_{2}}O_{7}^{-2}\to C{{r}^{+3}}\) \(SO_{3}^{-2}\to SO_{4}^{-2}\)
\(C{{r}_{2}}O_{7}^{-2}\to 2C{{r}^{+3}}\) \(SO_{3}^{-2}+{{H}_{2}}O\to SO_{4}^{-2}\)
\(C{{r}_{2}}O_{7}^{-2}\to 2C{{r}^{+3}}+7{{H}_{2}}O\). \(SO_{3}^{-2}+{{H}_{2}}O\to SO_{4}^{-2}+2H^{+}\)
\(C{{r}_{2}}O_{7}^{-2}+14{{H}^{+}}\to 2C{{r}^{+3}}+7{{H}_{2}}O\) \(\left[ SO_{3}^{-2}+{{H}_{2}}O\to SO_{4}^{-2}+2{{H}^{+}}+2e \right]\times 3\)
\(C{{r}_{2}}O_{7}^{-2}+14{{H}^{+}}6{{e}^{-}}\to 2C{{r}^{+3}}+7{{H}_{2}}O\) \(3SO_{3}^{-2}+3{{H}_{2}}O\to 3SO_{4}^{-2}+6{{H}^{+}}+6{{e}^{-}}\)
\(\left[ C{{r}_{2}}O_{7}^{-2}+14{{H}^{+}}6{{e}^{-}}\to 2C{{r}^{+3}}+7{{H}_{2}}O \right]\)
\(C{{r}_{2}}O_{7}^{-2}+14{{H}^{+}}+{6{{e}^{-}}}\to 2C{{r}^{+3}}+7{{H}_{2}}O\) \(3SO_{3}^{-2}+3{{H}_{2}}O\to 3SO_{4}^{-2}+6{{H}^{+}}+{6{{e}^{-}}}\) \(\overline{\underline{C{{r}_{2}}O_{7}^{-2}+3SO_{3}^{-2}\to 2C{{r}^{+3}}+3SO_{4}^{-2}+4{{H}_{2}}O+8{{H}^{+}}}}\)

Example: 3 Balance the following reaction in basic medium by ion-electron method.

\({{P}_{4}}\rightarrow{O{{H}^{-}}}P{{H}_{3}}+{{H}_{2}}PO_{2}^{-}\)
Reduction Half Reaction Oxidation Half Reaction
\({{P}_{4}}\rightarrow{{}}P{{H}_{3}}\) \({{P}_{4}}\rightarrow{{}}{{H}_{2}}PO_{2}^{-}\)
\({{P}_{4}}\rightarrow{{}}4P{{H}_{3}}\) \({{P}_{4}}\rightarrow{{}}4{{H}_{2}}PO_{2}^{-}\)
\({{P}_{4}}+12{{H}_{2}}O\rightarrow{{}}4P{{H}_{3}}+12O{{H}^{\Theta }}\) \({{P}_{4}}+8{{H}_{2}}O\rightarrow{{}}4{{H}_{2}}PO_{2}^{-}+8O{{H}^{\Theta }}+8{{H}_{2}}O\)
\(\left[ {{P}_{4}}+12{{H}_{2}}O+12{{e}^{-}}\rightarrow{{}}4P{{H}_{3}}+12O{{H}^{\Theta }} \right]\times 1\) \(\left[ {{P}_{4}}+8{{H}_{2}}O+8O{{H}^{-}}\rightarrow{{}}4{{H}_{2}}PO_{2}^{-}+4{{e}^{-}}+8{{H}_{2}}O \right]\times 3\)


\(3{{P}_{4}}+{24{{H}_{2}}O}+24O{{H}^{-}}\rightarrow{{}}12{{H}_{2}}PO_{2}^{-}+{12{{e}^{-}}}+{24{{H}_{2}}O}\).

Applications of Redox Reaction

Redox reactions have numerous industrial and everyday applications. A few of these applications of redox reactions are listed below.

Applications of Redox Reaction in Electrochemistry

The battery used for generating DC current uses redox reaction to produce electrical energy.

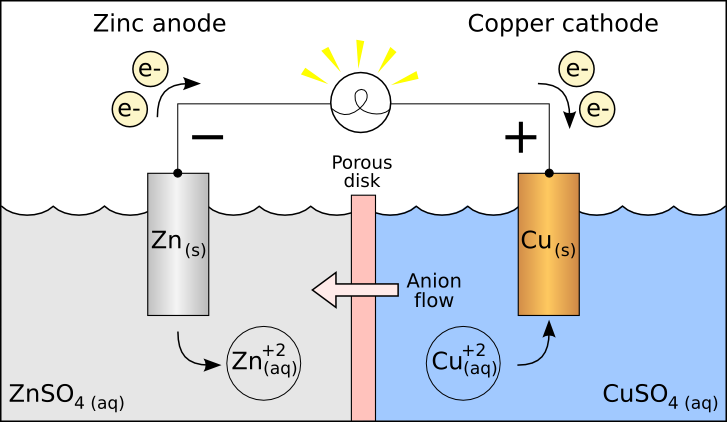

Redox Reactions – Electrochemical cell

Batteries or electrochemical cells used in our day-to-day life are also based on redox reactions. For example, storage cells are used in vehicles to supply all the electrical needs of the vehicles.

Redox Reaction in Combustion

Combustion is a type of oxidation-reduction reaction and hence it is a redox reaction. An explosion is a fast form of combustion and hence explosion can be treated as a redox reaction. Even the space shuttle uses redox reactions. The combination of ammonium perchlorate and powdered aluminium inside the rocket boosters gives rise to oxidation-reduction reaction.

Applications in Photosynthesis

Green plants convert water and carbon dioxide into carbohydrates and this process is defined as photosynthesis. The reaction is given as 6CO2 + 6H2O → C6H12O6 + 6O2

Uses of Redox Reaction in Photosynthesis

In the above reaction, we can see that carbon dioxide is reduced to carbohydrates while the water gets oxidized to oxygen and hence it is a redox reaction. The energy is provided by the sunlight for this reaction. This reaction is a source of food for animals and plants.

Real Life Uses of Redox Reaction

  • Production of some important chemicals is also based on electrolysis which in turn is based on redox reactions. Many chemicals like caustic soda, chlorine, etc. are produced using redox reactions.
  • Oxidation-Reduction reactions also find their application in sanitizing water and bleaching materials.
  • The surfaces of many metals can be protected from corrosion by connecting them to sacrificial anodes which undergoes corrosion instead. A common example of this technique is the galvanization of steel.
  • The industrial production of cleaning products involves the oxidation process.
  • Nitric acid, a component of many fertilizers, is produced from the oxidation reaction of ammonia.
  • Electroplating is a process that uses redox reactions to apply a thin coating of a material on an object. Electroplating is used in the production of gold-plated jewellery.
  • Many metals are separated from their ores with the help of redox reactions. One such example is the smelting of metal sulfides in the presence of reducing agents.

The main source of oxidation is oxygen and therefore redox reaction or oxidation-reduction reactions are responsible for food spoilage.

Frequently Asked Questions

What are oxidation-reduction reactions?

Oxidation-reduction reactions are chemical reactions that involve the transfer of electrons between the reacting species. These electron transfers are accompanied by a change in the oxidation state of the reactants.

What are oxidizing agents?

An oxidizing agent is an electron accepting species that is readily reduced in an oxidation-reduction reaction. The oxidation numbers of these species tend to decrease in redox reactions. Examples: nitric acid (HNO3) and hydrogen peroxide (H2O2)

What are reducing agents?

Reducing agents are the electron donating species that readily undergo oxidation in oxidation-reduction reactions. These species tend to lose electrons in redox reactions and their oxidation number increases. Examples: zinc and lithium.

How to determine if a redox reaction has occurred?

  • First, assign the oxidation numbers to all the atoms.
  • Compare the oxidation numbers from the reactant side to the product side.
  • In the case of a redox reaction, the oxidation numbers of two elements change from the reactant side to the product side.

Element Oxidized: The one whose oxidation number is increased.

Element Reduced: The one whose oxidation number is decreased.

Why is the reaction between hydrogen and fluorine a redox reaction?

In this reaction, the H2 molecule loses its electrons, yielding two protons. The electrons are accepted by the F2molecule and it leads to the formation of two fluoride ions. Now a polar covalent bond is formed between the fluoride ion and the proton. Thus, this reaction is redox.

Is every chemical reaction a redox reaction?

No, not all the chemical reaction is a redox reaction. Reactions like double decompositions, acid-base neutralisation reactions, precipitation reactions are non-redox reactions.

  • Na2SO4 + BaCl2 = 2NaCl + BaSO4
  • 2KI + Pb(NO3)2 = 2KNO3 + PbI2
  • 2HCl + CaCO3 = H2O + CaCl2 + CO2
  • HNO3 + NaOH = H2O + NaNO3

Some decomposition reactions are also non-redox reactions:

  • NH4Cl = HCl + NH3
  • CaCO3 = CO2 + CaO
  • 2Al(OH)3 = 3H2O + Al2O3

Practise This Question

Several blocks of magnesium are fixed to the bottom of a ship to
