NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity

NCERT Solutions for Class 12 Physics Chapter 3 – Free PDF Download

The NCERT Solutions for Class 12 Chapter 3 Current Electricity is an essential resource material that is needed by all students to score good marks in Class 12 Physics CBSE examinations and entrance examinations. The NCERT Solutions for Class 12 Physics PDF provided here can be downloaded for free. Students can get answers to the questions in the textbook, along with exemplary problems, numericals on current electricity Class 12 PDF, worksheets and exercises.

Current Electricity NCERT Solutions for Class 12 Physics aid in preparing Physics Class 12 Chapter 3 notes and will come in handy during revisions. These NCERT Solutions are created by subject experts according to the latest CBSE Syllabus 2023-24 and its guidelines. Also, the solutions are available with online and offline download options. This makes these NCERT Solutions for Class 12 Physics the best resource to prepare for the Physics examination.

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity

Download PDF Download PDF

Class 12 Physics NCERT Solutions Current Electricity Important Questions


Question 3.1:

The storage battery of a car has an emf of 12 V. If the internal resistance of the battery is 0.4 Ω, what is the maximum current that can be drawn from the battery?

Answer 3.1:

In the given question,

The EMF of the battery is given as E = 12 V

The internal resistance of the battery is given as R = 0.4 Ω

The amount of maximum current drawn from the battery is I

According to Ohm’s law,

E = IR

Rearranging, we get

\(\begin{array}{l}I = \frac{ E }{ R }\end{array} \)

Substituting values in the above equation, we get

\(\begin{array}{l}I = \frac{ 12 }{ 0.4 }\end{array} \)
= 30 A

Therefore, the maximum current drawn from the given battery is 30 A.



Question 3.2:

A battery of EMF 10 V and internal resistance 3 Ω is connected to a resistor. If the current in the circuit is 0.5 A, what is the resistance of the resistor? What is the terminal voltage of the battery when the circuit is closed?

Answer 3.2:

Given:

The EMF of the battery (E = 10 V)

The internal resistance of the battery (R = 3 Ω)

The current in the circuit (I = 0.5 A)

Consider the resistance of the resistor to be R.

The current in the circuit can be found out using Ohm’s Law as,

\(\begin{array}{l}I = \frac{ E }{ R + r }\end{array} \)

Rewriting the above equation, we get

\(\begin{array}{l} R + r = \frac{E}{I}\end{array} \)
\(\begin{array}{l} = \frac{10}{0.5} = 20 Ω\end{array} \)

Therefore,

\(\begin{array}{l}R = 20 – 3 = 17 Ω\end{array} \)

Consider the Terminal voltage of the resistor to be V.

Then, according to Ohm’s law,

V = IR

Substituting values in the equation, we get

V = 0.5 × 17

V = 8.5 V

Therefore, the resistance of the resistor is 17 Ω, and the terminal voltage is 8.5 V.



Question 3.3:

a) Three resistors 1 Ω, 2 Ω, and 3 Ω are combined in series. What is the total resistance of the combination?

b) If the combination is connected to a battery of emf 12 V and negligible internal resistance, obtain the potential drop across each resistor.

Answer 3.3:

a) We know that resistors r 1 = 1 Ω , r 2 = 2 Ω and r 3 = 3 Ω are combined in series.

The total resistance of the above series combination can be calculated by the algebraic sum of individual resistances as follows:

Total resistance = 1 Ω + 2 Ω + 3 Ω = 6 Ω

Thus calculated Total Resistance = 6 Ω

b) Let us consider I to be the current flowing the given circuit

Also,

The emf of the battery is E = 12 V

The total resistance of the circuit ( calculated above ) = R = 6 Ω

Using Ohm’s law, the relation for current can be obtained as

\(\begin{array}{l}I = \frac{ E }{ R }\end{array} \)

Substituting values in the above equation, we get

\(\begin{array}{l}I = \frac{ 12 }{ 6 }\end{array} \)
= 2 A

Therefore, the current calculated is 2 A

Let the Potential drop across 1 Ω resistor = V 1

The value of V 1 can be obtained from Ohm’s law as :

V 1 = 2 x 1 = 2 V

Let the Potential drop across 2 Ω resistor = V 2

The value of V 2 can be obtained from Ohm’s law as:

V 2 = 2 x 2 = 4 V

Let the Potential drop across 3 Ω resistor = V 3

The value of V 3 can be obtained from Ohm’s law as:

V 3 = 2 x 3 = 6 V

Therefore, the potential drops across the given resistors r 1 = 1 Ω , r 2 = 2 Ω and r 3 = 3 Ω are calculated to be

V 1 = 2 x 1 = 2 V

V 2 = 2 x 1 = 4 V

V 3 = 2 x 1 = 6 V



Question 3.4:

a) Three resistors 2 Ω, 4 Ω and 5 Ω are combined in parallel. What is the total resistance of the combination?

b) If the combination is connected to a battery of emf 20 V and negligible internal resistance, determine the current through each resistor, and the total current drawn from the battery.

Answer 3.4:

A ) Resistors r 1 = 2 Ω , r2 = 4 Ω and r 3 = 5 Ω are combined in parallel

Hence the total resistance of the above circuit can be calculated  by the following formula:

\(\begin{array}{l}\frac{ 1 }{ R } = \frac{ 1 }{ R_1 } + \frac{ 1 }{ R_2 } + \frac{ 1 }{ R_3 }\end{array} \)



\(\begin{array}{l}\frac{ 1 }{ R } = \frac{ 1 }{ 2 } + \frac{ 1 }{ 4 } + \frac{ 1 }{ 5 }\end{array} \)



\(\begin{array}{l}\frac{ 1 }{ R } = \frac{ 10 + 5 + 4 }{ 20 }\end{array} \)



\(\begin{array}{l}\frac{ 1 }{ R } = \frac{ 19 }{ 20 }\end{array} \)

Therefore, the total resistance of the parallel combination given above is given by:

\(\begin{array}{l}R = \frac{20}{19}\end{array} \)

B ) Given that emf of the battery, E = 20 V

Let the current flowing through resistor R 1 be I 1

I 1 is given by :

\(\begin{array}{l}I_{ 1 } = \frac{ V }{ R_{ 1 }}\end{array} \)



\(\begin{array}{l}I_{ 1 } = \frac{ 20 }{ 2 }\end{array} \)



\(\begin{array}{l}I_{ 1 } = 10 A\end{array} \)

Let the current flowing through resistor R 2 be I 2

I 2 is given by :

\(\begin{array}{l}I_{ 2 } = \frac{ V }{ R_{ 2 }}\end{array} \)



\(\begin{array}{l}I_{ 2 } = \frac{ 20 }{ 4 }\end{array} \)



\(\begin{array}{l}I_{ 2 } = 5 A\end{array} \)



Let the current flowing through resistor R 3 be I 3

I 3 is given by :

\(\begin{array}{l}I_{ 3 } = \frac{ V }{ R_{ 1 }}\end{array} \)



\(\begin{array}{l}I_{ 3 } = \frac{ 20 }{ 5 }\end{array} \)



\(\begin{array}{l}I_{ 3 } = 4 A\end{array} \)

Therefore, the total current can be found by the following formula :

I = I 1 + I 2 + I 3 = 10 + 5 + 4 = 19 A

therefore the current flowing through each resistor is calculated to be :

\(\begin{array}{l}I_{ 1 } = 10 A\end{array} \)



\(\begin{array}{l}I_{ 2 } = 5 A\end{array} \)



\(\begin{array}{l}I_{ 3 } = 4 A\end{array} \)

Therefore, the total current is I = 19 A

Question 3.5:

At room temperature (27.0 °C) the resistance of a heating element is 100 Ω. What is the temperature of the element if the resistance is found to be 117 Ω, given that the temperature coefficient of the material of the resistor is 1.70 × 10–4 °C–1.

Answer 3.5:

Given that the room temperature, T = 27 ° C

The heating element has a resistance of R = 100 Ω

Let the increased temperature of the filament be T 1

At T 1, the resistance of the heating element is  R 1 = 117 Ω

Temperature coefficient of the material used for the element is 1.70 x 10– 4 C – 1

α = 1.70 x 10 -4C– 1

α is given by the relation ,

\(\begin{array}{l}\alpha = \frac{ R_{ 1 } – R }{ R \left ( T _{ 1 } – T \right )}\end{array} \)



\(\begin{array}{l}T _{ 1 } – T = \frac{ R _{ 1 } – R }{ R \alpha}\end{array} \)



\(\begin{array}{l}T _{ 1 } – 27 = \frac{ 117 – 100 }{ 100 ( 1.7 × 10^{-4}) }\end{array} \)



\(\begin{array}{l}T _{ 1 } – 27 = 1000\end{array} \)

T 1 = 1027 ° C

Therefore, the resistance of the element is 117 Ω at T 1 = 1027 ° C



Question 3.6:

A negligibly small current is passed through a wire of length 15 m and uniform cross-section 6.0 × 10–7 m2, and its resistance is measured to be 5.0 Ω. What is the resistivity of the material at the temperature of the experiment?

Answer 3.6:

Given that the length of the wire, L = 15 m

The area of cross-section is given as , a = 6.0 x 10 – 7 m 2

Let the resistance of the material of the wire be, R, i.e., R = 5.0 Ω

The resistivity of the material is given as ρ

\(\begin{array}{l}R = \rho \frac{ L }{ A }\end{array} \)



\(\begin{array}{l}\rho = \frac{ R \times A }{ L } = \frac{ 5 \times 6 \times 10 ^{ – 7 }}{ 15 } = 2 \times 10 ^{ – 7 }\end{array} \)

Therefore, the resistivity of the material is calculated to be

\(\begin{array}{l}2 \times 10 ^{ – 7 }\end{array} \)



Question 3.7:

A silver wire has a resistance of 2.1 Ω at 27.5 °C, and a resistance of 2.7 Ω at 100 °C. Determine the temperature coefficient of resistivity of silver.

Answer 3.7:

Given that temperature T 1 = 27.5 ° C

Resistance R 1 at temperature T 1 is given as :

R 1 =  2.1 Ω ( at T 1 )

Given that temperature T 2 = 100 ° C

Resistance R 2 at temperature T 2 is given as :

R 2 =  2.7 Ω ( at T 2 )

Temperature coefficient of resistivity of silver = α

\(\begin{array}{l}\alpha = \frac{ R _{ 2 } – R _{ 1 }}{ R _{ 1 } \left ( T _{ 2 } – T _{ 1 }\right )}\end{array} \)



\(\begin{array}{l}\alpha = \frac{ 2.7 – 2.1 }{ 2.1 \left ( 100 – 27.5 \right )} = 0.0039 ^{\circ} C ^{ – 1 }\end{array} \)

Therefore, the temperature coefficient of resistivity of silver is

\(\begin{array}{l}0.0039 ^{\circ} C ^{ – 1 }\end{array} \)



Question 3.8:

A heating element using nichrome connected to a 230 V supply draws an initial current of 3.2 A which settles after a few seconds to a steady value of 2.8 A. What is the steady temperature of the heating element if the room temperature is 27.0 °C? Temperature coefficient of resistance of nichrome averaged over the temperature range involved is 1.70 × 10–4 °C–1.

Answer 3.8:

In the given problem,

The supply voltage, V = 230 V

The initial current drawn, I 1 = 3.2 A

Consider the initial resistance to be R 1, which can be found by the following relation:

\(\begin{array}{l}R _{ 1 } = \frac{ V }{ I }\end{array} \)

Substituting the values, we get

\(\begin{array}{l}R _{ 1 } = \frac{ 230 }{ 3.2 }\end{array} \)
= 71.87 Ω

Value of current at steady state, I 2 = 2.8 A

Value of resistance at steady state = R 2

R 2 can be calculated by the following equation:

\(\begin{array}{l}R _{ 2 } = \frac{ 230 }{ 2.8 } = 82.14 Ω\end{array} \)

The temperature coefficient of nichrome averaged over the temperature range involved is 1.70 x 10 – 4 ° C – 1

Value of initial temperature of nichrome , T 1 = 27.0 ° C

Value of steady-state temperature reached by nichrome = T 2

This temperature T 2 can be obtained by the following formula:

\(\begin{array}{l}\alpha = \frac{ R _{ 2 } – R _{ 1 }}{ R _{ 1 } \left ( T _{ 2 } – T _{ 1 }\right )}\end{array} \)



\(\begin{array}{l}T _{ 2 } – 27 = \frac{ 82.14 – 71.87 }{ 71.87 \times ( 1.7 \times 10^{-4}) }\end{array} \)



\(\begin{array}{l}T_{ 2 } – 27 = 840.5\end{array} \)

T 2 = 840.5 + 27 = 867.5 ° C

Hence, the steady temperature of the heating element is 867.5 ° C



Question 3.9 :

Determine the current in each branch of the network shown in the figure:

NCERT-Solutions-for-Class-12-Physics-Chapter-3-Current-Electricity Question 9

Answer 3.9 :

The current flowing through various branches of the network is shown in the figure given below:

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 9 Solution

Let I 1 be the current flowing through the outer circuit

Let I 2 be the current flowing through AB branch

Let I 3 be the current flowing through AD branch

Let I 2 – I 4 be the current flowing through branch BC

Let I 3 + I 4 be the current flowing through branch DC

Let us take closed-circuit ABDA into consideration, we know that potential is zero.

i.e ,  10 I 2 + 5 I 4 – 5 I 3 = 0

2 I 2 +  I 4 –  I 3 = 0

I 3 = 2 I 2 +  I 4                                                                                               . . . . . . . . . . . . . . . . . . . . . . eq ( 1 )



Let us take closed circuit BCDB into consideration, we know that potential is zero.

i.e.,  5 ( I 2 – I 4 ) – 10 ( I 3 + I 4 ) – 5 I 4 = 0

5 I 2 – 5 I 4 – 10 I 3 – 10 I 4 –  5 I 4 = 0

5 I 2 – 10 I 3 –  20 I 4 = 0

I 2 = 2 I 3 – 4 I 4                                                                                          . . . . . . . . . . . . . . . . . . . . . . eq ( 2 )



Let us take closed-circuit ABCFEA into consideration, we know that potential is zero.

i.e ,  – 10 + 10 ( I 1 ) + 10 ( I 2 ) + 5 ( I 2 –  I 4 ) = 0

10 = 15 I 2 + 10 I 1 – 5 I 4

3 I 2 + 2 I 2 – I 4 = 2                                                                                    . . . . . . . . . . . . . . . . . . . . . . eq ( 3 )

From equation ( 1 )  and ( 2 ), we have :

I 3 = 2 ( 2 I 3 + 4 I 4 ) + I 4

I 3 = 4 I 3 + 8 I 4 + I 4

– 3 I 3 = 9 I 4

– 3 I 4 = + I 3                                                                                            . . . . . . . . . . . . . . . . . . . . . . eq ( 4 )

Putting equation  ( 4 ) in equation ( 1 ) , we have  :

I 3 = 2 I 2 + I 4

– 4 I 4 = 2 I 2

I 2 = – 2 I 4                                                                                                . . . . . . . . . . . . . . . . . . . . . . eq ( 5 )

From the above equation , we infer that :

I 1 = I 3 + I 2                                                                                                   . . . . . . . . . . . . . . . . . . . . . . eq ( 6 )

Putting equation ( 4 ) in equation ( 1 ), we obtain

3 I 2 + 2 ( I 3 + I 2 ) – I 4 = 2

5 I 2 + 2 I 3 – I 4 = 2                                                                                  . . . . . . . . . . . . . . . . . . . . . . eq ( 7 )

Putting equations ( 4 ) and ( 5 ) in equation ( 7 ), we obtain

5 ( – 2 I 4 ) + 2 ( – 3 I 4 ) – I 4 = 2

– 10 I 4 –  6 I 4 – I 4 = 2

17 I 4 = – 2

\(\begin{array}{l}I _{ 4 } = \frac{ – 2 }{ 17 } A\end{array} \)

Equation ( 4 ) reduces to

I 3 = – 3 ( I 4 )

\(\begin{array}{l}I_{ 3 } = – 3 \left ( \frac{ – 2 }{ 17 } \right ) = \frac{ 6 }{ 17 } A\end{array} \)

I 2 = – 2 ( I 4 )

\(\begin{array}{l}I_{ 2 } = – 2 \left ( \frac{ – 2 }{ 17 } \right ) = \frac{ 4 }{ 17 } A\end{array} \)



\(\begin{array}{l}I _{ 2 } – I _{ 4 } = \frac{ 4 }{ 17 } – \frac{ – 2 }{ 17 } = \frac{ 6 }{ 17 } A\end{array} \)



\(\begin{array}{l}I _{ 3 } + I _{ 4 } = \frac{ 6 }{ 17 } – \frac{ – 2 }{ 17 } = \frac{ 4 }{ 17 } A\end{array} \)



\(\begin{array}{l}I _{ 1 } = I _{ 3 } + I _{ 2 }\end{array} \)



\(\begin{array}{l}I _{ 1 } = \frac{ 6 }{ 17 } + \frac{ 4 }{ 17 } = \frac{ 10 }{ 17 } A\end{array} \)

Therefore, current in each branch is given as :

In branch

\(\begin{array}{l}AB = \frac{ 4 }{ 17 } A\end{array} \)

In branch

\(\begin{array}{l}BC = \frac{ 6 }{ 17 } A\end{array} \)

In branch

\(\begin{array}{l}CD = \frac{ – 4 }{ 17 } A\end{array} \)

In branch

\(\begin{array}{l}AD = \frac{ 6 }{ 17 } A\end{array} \)

In branch

\(\begin{array}{l}BD = \frac{ – 2 }{ 17 } A\end{array} \)

Total current

\(\begin{array}{l}= \frac{ 4 }{ 17 } + \frac{ 6 }{ 17 } + \frac{ – 4 }{ 17 } + \frac{ 6 }{ 17 } + \frac{ – 2 }{ 17 } = \frac{ 10 }{ 17 } A\end{array} \)



Question 3. 10:

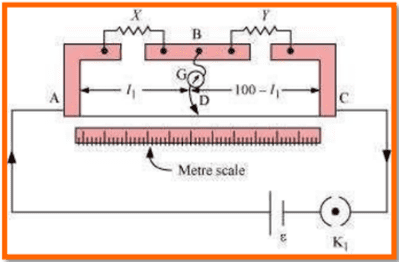

A ) In a meter bridge given below, the balance point is found to be at 39.5 cm from the end A, when the resistor S is of 12.5 Ω. Determine the resistance of R. Why are the connections between resistors in a Wheatstone or meter bridge made of thick copper strips?

B ) Determine the balance point of the bridge above if R and S are interchanged.

C ) What happens if the galvanometer and cell are interchanged at the balance point of the bridge? Would the galvanometer show any current?

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 10 Solution

Answer 3. 10:

( a ) Let L 1 be the balance point from end A,

Given that , L 1 = 39.5 cm

Given that resistance of the resistor S = 12.5 Ω

We know that condition for the balance is given by the equation:

\(\begin{array}{l}\frac{ R }{ S } = \frac{ 100 – L _{ 1 } }{ L _{ 1 } }\end{array} \)



\(\begin{array}{l}R = \frac{ 100 – 39.5 }{ 39.5 } \times 12.5 = 8.2 \Omega\end{array} \)

Thus calculated the resistance of the resistor R, R =

\(\begin{array}{l}8.2 \Omega\end{array} \)

(b) If R and S are interchanged, then the lengths will also be interchanged.

Hence, the length modifies to

l = 100 – 39.5 = 60.5 cm.

(c) If the galvanometer and the cell are interchanged, the position of the balance point remains unchanged. Therefore, the galvanometer will show no current.

Question 3.11:

A storage battery of emf 8.0 V and internal resistance 0.5 Ω is being charged by a 120 V dc supply using a series resistor of 15.5 Ω. What is the terminal voltage of the battery during charging? What is the purpose of having a series resistor in the charging circuit?



Answer 3.11:

Given:

The EMF of the given storage battery is E = 8.0 V

The Internal resistance of the battery is given by r = 0.5 Ω

The given DC supply voltage is V = 120 V

The resistance of the resistor is R = 15.5 Ω

Effective voltage in the circuit = V 1

R is connected to the storage battery in series.

Hence, it can be written as

V 1 = V – E

V 1 = 120 – 8 = 112 V

Current flowing in the circuit = I, which is given by the relation,

\(\begin{array}{l}I = \frac{ V ^{ 1 }}{ R + r }\end{array} \)



\(\begin{array}{l}I = \frac{ 112 }{ 15.5 + 5 }\end{array} \)



\(\begin{array}{l}I = \frac{ 112 }{ 16 }\end{array} \)



\(\begin{array}{l}I = 7 A\end{array} \)

We know that Voltage across a resistor R given by the product,

I x R = 7 × 15.5 = 108.5 V

We know that,

DC supply voltage = Terminal voltage + voltage drop across R

Terminal voltage of battery = 120 – 108.5 = 11.5 V

A series resistor, when connected to a charging circuit, limits the current drawn from the external source.

The current will become extremely high in its absence. This is extremely dangerous.



Question 3.12:

In a potentiometer arrangement, a cell of emf 1.25 V gives a balance point at 35.0 cm length of the wire. If the cell is replaced by another cell and the balance point shifts to 63.0 cm, what is the emf of the
second cell?

Answer 3.12:

Emf of the cell, E 1 = 1.25 V

The balance point of the potentiometer, l 1 = 35 cm

The cell is replaced by another cell of emf E 2.

The new balance point of the potentiometer, l 2 = 63 cm

The balance condition is given by the relation,

\(\begin{array}{l}\frac{ E _{ 1 } }{ E _{ 2 } } = \frac{ I _{ 1 } }{ I _{ 2 } }\end{array} \)



\(\begin{array}{l}E _{ 2 } = E _{ 1 } \times \frac{ I_{ 2 } }{ I _{ 1 } }\end{array} \)



\(\begin{array}{l}E _{ 2 } = 1.25 \times \frac{ 63 }{ 35 } = 2.25 V\end{array} \)

Question 3.13 :

The number density of free electrons in a copper conductor estimated in Example 3.1 is 8.5 × 1028 m–3. How long does an electron take to drift from one end of a wire 3.0 m long to its other end? The area of cross-section of the wire is 2.0 × 10–6 m2 and it is carrying a current of 3.0 A.

 Answer 3.13 :

Given that Number density of free electrons in a copper conductor, n =  8.5 x 10 28 m – 3

Let the Length of the copper wire be l

Given , l = 3.0 m

Let the area of the cross-section of the wire be A = 2.0 x 10 – 6 m 2

The value of the current carried by the wire, I = 3.0 A, which is given  by the equation,

I = n A e V d

Where,

e = electric charge = 1.6 x 10 – 19 C

\(\begin{array}{l}V _{ d } = Drift velocity = \frac{ Length of the wire \left ( l \right ) }{ time taken to cover l \left ( t \right )}\end{array} \)



\(\begin{array}{l}I = n A e \frac{ l }{ t }\end{array} \)



\(\begin{array}{l}t = \frac{ n \times A \times e \times l }{ I }\end{array} \)



\(\begin{array}{l}t = \frac{ 3 \times 8.5 \times 10 ^{ 28 } \times 2 \times 10 ^{ – 6 } \times 1.6 \times 10 ^{ – 19 }}{ 3.0 }\end{array} \)



\(\begin{array}{l}t = 2.7 \times 10 ^{ 4 } sec\end{array} \)

Question 3.14:

The earth’s surface has a negative surface charge density of 10–9m–2. The potential difference of 400 kV between the top of the atmosphere and the surface results (due to the low conductivity of the lower atmosphere) in a current of only 1800 A over the entire globe. If there were no mechanism of sustaining atmospheric electric field, how much time (roughly) would be required to neutralise the earth’s surface? (This never happens in practice because there is a mechanism to replenish electric charges, namely the continual thunderstorms and lightning in different parts of the globe). (Radius of earth = 6.37 × 10m.)

Answer:

Surface charge density of the earth, σ=10−9 cm−2
Potential difference between the top of the atmosphere and the surface, V= 400 kV
Current over the entire globe, I=1800 A
Radius of the earth, r=6.37×106 m
Surface area of the earth, A=4πr

= 4 x 3.14 x (6.37×106 )2=5.09×1014 m2

Charge on the earth’s surface, q=σA= 10−9 x 5.09×1014

= 5.09×105 C

Time taken to neutralize the earth’s surface, t = q/I

⟹t=5.09×105/1800=283 s

Question 3.15:

(a) Six lead-acid type of secondary cells each of emf 2.0 V and internal resistance 0.015 Ω are joined in series to provide a supply to a resistance of 8.5 Ω. What is the current drawn from the supply and its terminal voltage?
(b) A secondary cell after long use has an emf of 1.9 V and a large internal resistance of 380 Ω. What maximum current can be drawn from the cell? Could the cell drive the starting motor of a car?

Answer:

(a) Emf of the secondary cells, ε = 2.0 V

Number of secondary cells, n = 6

Total EMF, E= nε= 6 x 2 = 12 V

The internal resistance of the secondary cells, r= 0.015 Ω

Resistance to which the secondary cells are connected, R = 8.5 Ω
Total resistance in circuit Rtotal = nr+ R = 6×0.015+8.5=8.59Ω

Current drawn from the supply, I=E/Rtotal =12/8.59 = 1.4 A
Terminal voltage, V= IR = 1.4×8.5=11.9 V

(b) Emf of the secondary cell, ε = 1.9 V

Internal resistance, r = 380 Ω
Maximum current drawn from the cell,I =ε/r =  1.9/380=0.005A.

The current required to start a motor is 100 Amp. Here, the current produced is 0.005 A, so the starting motor of the car cannot be started with this current.

Question 3.16:

Two wires of equal length, one of aluminium and the other of copper have the same resistance. Which of the two wires is lighter? Hence explain why aluminium wires are preferred for overhead power cables. (ρAl = 2.63 × 10–8 Ω m, ρCu = 1.72 × 10–8 Ω m, Relative density of Al = 2.7, of Cu = 8.9.)

Answer:

Length of aluminium = l1

Resistance of aluminium = R

Resistivity of aluminium, ρAI1= 2.63×10−8 Ωm

Relative density of aluminium, d1 =2.7

Area of the cross-section of the aluminium wire =A1

Length of copper = l2

Resistance of copper = R2

Resistivity of copper, ρcu 2=1.72 × 10–8 Ω m

Relative density of copper, d2 = 8.9

Area of the cross-section of the copper wire =A2

Therefore,

\(\begin{array}{l}R_{1}=\rho _{1}\frac{l_{1}}{A_{1}}\end{array} \)
——(1)

\(\begin{array}{l}R_{2}=\rho _{2}\frac{l_{2}}{A_{2}}\end{array} \)
——(2)

It is given that R1 = R2
Therefore,

\(\begin{array}{l}\rho _{1}\frac{l_{1}}{A_{1}}= \rho _{2}\frac{l_{2}}{A_{2}}\end{array} \)

Given l1 = l2

\(\begin{array}{l}\frac{\rho _{1}}{A_{1}}= \frac{\rho _{2}}{A_{2}}\end{array} \)
\(\begin{array}{l}\frac{A_{1}}{A_{2}}= \frac{\rho _{1}}{\rho _{2}}\end{array} \)

=  (2.63×10−8)/(1.72 × 10–8)
​= 1.52

Mass of aluminium, m1 = Volume x density

= A1l1 x d1

Mass of copper = m= Volume x density

= A2l2 x d2

m1/m2 =(A1l1 x d1 / A2l2 x d2)
Since l1 = l2

m1/m2 =(A1 d1 / A2d2)

m1/m2 = (1.52) x (2.7/8.9)

= (1.52) x (0.303)

m1/m2 = 0.46

The mass ratio of aluminium to copper is 0.46. Since aluminium is lighter, it is preferred for long suspensions of cables

Question 3.17:

What conclusion can you draw from the following observations on a resistor made of alloy manganin?

Current A Voltage V Current A  Voltage V
0.2 3.94 3.0 59.2
0.4 7.87 4.0 78.8
0.6 11.8 5.0 98.6
0.8 15.7 6.0 118.5
1.0 19.7 7.0 138.2
2.0 39.4 8.0 158.0

Answer:

Ohm’s law is valid with high accuracy. This means that the resistivity of the alloy manganin is nearly independent of temperature.

Question 3.18:

Answer the following questions:
(a) A steady current flows in a metallic conductor of the non-uniform cross-section. Which of these quantities is constant along the conductor: current, current density, electric field, drift speed?
(b) Is Ohm’s law universally applicable for all conducting elements? If not, give examples of elements that do not obey Ohm’s law.
(c) A low voltage supply from which one needs high currents must have very low internal resistance. Why?
(d) A high tension (HT) supply of, say, 6 kV must have a very large internal resistance. Why?

Answer:

(a) Current is given to be steady. Therefore, it is a constant.  The current density, electric field, drift speed depends on the area of the cross-section inversely.
(b) No, examples of non-ohmic elements are vacuum diodes, semiconductor diodes, etc.
(c) Because the maximum current drawn from a source = ε/r.
(d) If the circuit is shorted (accidentally), the current drawn will exceed safety limits if the internal resistance is not large.

Question 3. 19:

Choose the correct alternative:
(a) Alloys of metals usually have (greater/less) resistivity than that of their constituent metals.
(b) Alloys usually have much (lower/higher) temperature coefficients of resistance than pure metals.
(c) The resistivity of the alloy manganin is nearly independent of/ increases rapidly with increase of temperature.
(d) The resistivity of a typical insulator (e.g., amber) is greater than that of a metal by a factor of the order of (1022/1023).

Solution:

(a) greater

(b) lower

(c) nearly independent of

(d) 1022

Question 3.20:

(a) Given n resistors each of resistance R, how will you combine them to get the (i) maximum (ii) minimum effective resistance? What is the ratio of the maximum to minimum resistance?
(b) Given the resistances of 1 Ω, 2 Ω, 3 Ω, how will be combine them to get an equivalent resistance of (i) (11/3) Ω (ii) (11/5) Ω, (iii) 6Ω, (iv) (6/11) Ω?
(c) Determine the equivalent resistance of networks shown in figure

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 20 Solution - image 1

(a) Total number of resistors = n

Resistance of each resistor = R

(i) The maximum effective resistance is got when the resistors are connected in series. The effective resistance R1 = nR

(ii) The minimum effective resistance is got when the resistors are connected in parallel, the effective resistance R2 = R/n

The ratio of maximum resistance to minimum resistance = nR/(R/n) = n2

(b) The resistance given are 1 Ω, 2 Ω, 3 Ω

(i) 11/3 Ω

Consider the following combination

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 20 Solution - image 2

The resistors of resistance 1 Ω and 2 Ω are parallel. Therefore, effective resistance

\(\begin{array}{l}\frac{1}{R’} = \left [\frac{1}{1}+\frac{1}{2} \right ]= 3/2\end{array} \)

R’ = 2/3 Ω

These resistors are connected in series with 3 Ω. Therefore the effective resistance R = R’ + 3 = (2/3) +3 = 11/3 Ω

(ii)  11/5 Ω

Consider the following combination

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 20 Solution - image 3

The resistors of resistance 2 Ω and 3 Ω are parallel. Therefore, effective resistance

\(\begin{array}{l}\frac{1}{R’} = \left [\frac{1}{2}+\frac{1}{3} \right ]= 5/6\end{array} \)

R’ = 6/5 Ω

These resistors are connected in series with 3 Ω. Therefore the effective resistance R = R’ + 3 = (6/5) +1 = 11/5 Ω

(iii) 6 Ω

When the resistors with resistance 1 Ω, 2 Ω, 3 Ω are connected in series the effective resistance is given by

1 Ω +2 Ω + 3 Ω = 6 Ω

(iv) (6/11) Ω

When the resistors are connected in parallel the effective resistance is

\(\begin{array}{l}\frac{1}{R’} = \left [\frac{1}{1}+\frac{1}{2} +\frac{1}{3}\right ]= 11/6 \Omega\end{array} \)

R’ = (6/11) Ω

(c) (a) In all the loops, two resistors of resistance 1Ω are connected in series. Therefore, the effective resistance is (1+1) = 2 Ω

Similarly, In all the loops, two resistors of resistance 2Ω are connected in series. Therefore, the effective resistance is (2+2) = 4 Ω

The 2Ω and 4Ω resistors are connected in parallel in all four loops. Therefore, the effective resistance =

\(\begin{array}{l}\frac{1}{R’} = \left [\frac{1}{2} +\frac{1}{4}\right ]= 3/4 \Omega\end{array} \)

R’ = 4/3 Ω

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 20 Solution - image 4

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 20 Solution - image 5

All four resistors are connected in series. Hence the equivalent resistance R each is (4/3) x 4 = 16/3 Ω

(c) (b) The resistors are connected in series. Therefore, the effective resistance is R + R+R+R+R = 5R

Question 3.21:

Determine the current drawn from a 12V supply with internal resistance 0.5Ω by the infinite network shown in the figure. Each resistor has 1Ω resistance.

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 21 Solution - image 1

Solution:

Let the effective resistance of the infinite network be X. Since it is an infinite network, adding three resistors of 1 Ω resistance will not change the total resistance, i.e., it will remain X.  The circuit will look like this if three resistors are added.

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 21 Solution - image 2

The equivalent resistance of this network is R’ = R + (equivalent resistance when X and R are parallel) + R

= R + [XR/(X+R)] + R

R’ = 2R +  [XR/(X+R)]

As said above, since it is an infinite network, adding three resistors of 1 Ω resistance will not change the total resistance.

R’ = X

⇒  2R +  [XR/(X+R)] = X

Since R = 1Ω we get

2 x 1 +  [X x 1/(X+1)] = X

X2 – 2X -2 = 0

\(\begin{array}{l}X = \frac{(-2)\pm \sqrt{(-2)^{2}-4\times 1\times (-2)}}{2}\end{array} \)



\(\begin{array}{l}X = 1\pm \sqrt{3}\end{array} \)

The value of resistance cannot be negative. Therefore, X= 1+√3 = 2.732 Ω

Given E = 12 V ; r = 0.5 Ω

If I is the current drawn by the network, then

I = E/(X+r) = 12/(2.732+ 0.5) = 3.713 A

Question 3. 22:

Figure shows a potentiometer with a cell of 2.0 V and internal resistance 0.40 Ω maintaining a potential drop across the resistor wire AB. A standard cell which maintains a constant emf of 1.02 V (for very moderate currents upto a few mA) gives a balance point at 67.3 cm length of the wire. To ensure very low currents drawn from the standard cell, a very high resistance of 600 kΩ is put in series with it, which is shorted close to the balance point. The standard cell is then replaced by a cell of unknown emf ε and the balance point found similarly, turns out to be at 82.3 cm length of the wire.

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 22 Solution

(a) What is the value ε?

(b) What purpose does the high resistance of 600 kΩ have?

(c) Is the balance point affected by this high resistance

(d) Would the method work in the above situation if the driver cell of the potentiometer had an emf of 1.0V instead of 2.0V?

(e) Would the circuit work well for determining an extremely small emf, say of the order of a few mV (such as the typical emf of a thermo-couple)? If not, how will you modify the circuit?

Solution:

(a) Constant emf of the standard cell, E1 = 1.02 V

The balance point on the wire, l1 = 67.3 cm

The standard cell is then replaced by a cell of unknown emf ε and the balance point changes to l =  82.3 cm

The relation between Emf and the balancing point

(E1/l1) = (ε/l)

ε = (l x E1/l1) = (82.3  x 1.02)/67.3  = 1.247 V

(b) The purpose of using high resistance of 600 kΩ is to reduce current through the galvanometer when the movable contact is far from the balance point.

(c) No.

(d) No. If ε is greater than the emf of the driver cell of the potentiometer, there will be no balance point on the wire AB.

(e) The circuit will not be suitable, because the balance point (for ε of the order of a few mV) will be very close to the end A and the percentage of error in the measurement will be very large. The circuit can be modified by putting a suitable resistor R in series with the wire AB so that the potential drop across AB is only slightly greater than the emf to be measured. Then, the balance point will be at a larger length of the wire and the percentage error will be much smaller.

Question 3. 23:

Figure below shows a 2.0 V potentiometer used for the determination of internal resistance of a 1.5 V cell. The balance point of the cell in open circuit is 76.3 cm. When a resistor of 9.5 Ω is used in the external circuit of the cell, the balance point shifts to 64.8 cm length of the potentiometer wire. Determine the internal resistance of the cell.

NCERT Solutions for Class 12 Physics Chapter 3 Current Electricity Question 23 Solution Solution:

Internal resistance of the cell, r = 1.5 V cell

Balance point of the cell in open circuit, l = 76.3 cm

External resistance, R = 9.5 Ω

New balance point, l1 = 64. 8 cm

The expression for internal resistance is given as

\(\begin{array}{l}r=R\left [ \frac{l}{l_{1}}-1 \right ]\end{array} \)
\(\begin{array}{l}r=9.5\left [ \frac{76.3}{64.8}-1 \right ]=1.69\Omega\end{array} \)

Class 12 Physics NCERT Solutions for Current Electricity

Chapter 3 Current Electricity of Class 12 Physics is framed as per the current CBSE Syllabus 2023-24. The important questions in Chapter 3 of Physics NCERT Solutions for Class 12 that are frequently asked are definitions of resistance, conductance, drift velocity, cell EMF, resistivity, conductance and internal resistance. The graphing of resistivity for metals, semiconductors and alloys must be practised thoroughly. Students must be well-versed in the conversion of complex circuits into simple series and parallel circuits. Students should practise a wide range of problems to get better at this. Questions from potentiometer or meter bridge are regularly asked. The resistivity chart for different colour codes can be asked in the board exam.

Topics covered in NCERT Class 12 Chapter 3 of Physics Current Electricity

Section Number Topic
3.1 Introduction
3.2 Electric Current
3.3 Electric Currents in Conductors
3.4 Ohm’s Law
3.5 Drift Of Electrons and the Origin of Resistivity
3.5.1 Mobility
3.6 Limitations of Ohm’s Law
3.7 Resistivity of Various Materials
3.8 Temperature Dependence of Resistivity
3.9 Electrical Energy, Power
3.10 Combination of Resistors – Series and Parallel
3.11 Cells, EMF, Internal Resistance
3.12 Cells in Series and in Parallel
3.13 Kirchhoff’s Rules
3.14 Wheatstone Bridge
3.15 Meter Bridge
3.16 Potentiometer



Also Access
NCERT Exemplar for Class 12 Physics Chapter 3
CBSE Notes for Class 12 Physics Chapter 3

Why go for BYJU’S?

BYJU’S is the best choice for students as the app provides study material that is useful in scoring good marks in the board examinations as well as in competitive examinations. The NCERT Solutions of BYJU’S is a one-stop solution to clarify all the doubts and queries of students pertaining to any subject of any class. For all your queries on NCERT Solutions, visit BYJU’S website or download BYJU’S learning App for a customized learning experience.

Disclaimer –

Dropped Topics –

3.7 Resistivity of Various Materials (delete Tables 3.1 and 3.2 and Carbon resistors, Colour code for carbon resistor)
3.10 Combinations of Resistors – Series and Parallel
Example 3.5
3.15 Meter Bridge
3.16 Potentiometer
Exercises 3.3, 3.4, 3.10, 3.12, 3.14–3.23

Frequently Asked Questions on NCERT Solutions for Class 12 Physics Chapter 3

Q1

How to solve the problems present in Chapter 3 of NCERT Solutions for Class 12 Physics faster?

Students of Class 12 should solve the problems present in the NCERT textbook to get an idea about the important formulas present in them. If doubts arise while solving the exercise problems, students can go to the NCERT Solutions for Class 12 Physics from BYJU’S, where each and every problem is solved accurately. The solutions contain explanations for each step to help students understand the method of solving problems without any difficulty.
Q2

What are the key benefits of NCERT Solutions for Class 12 Physics Chapter 3?

The key benefits of NCERT Solutions for Class 12 Physics Chapter 3 are the following:
1. The answers are prepared by highly experienced Physics experts.
2. Every important topic is explained in simple language to help students score well in the CBSE exams.
3. Students get a thorough understanding of the important concepts using the NCERT Solutions from BYJU’S.
Q3

Mention the topics included in Chapter 3 of NCERT Solutions for Class 12 Physics.

The topics included in Chapter 3 of NCERT Solutions for Class 12 Physics are as follows:
3.1 Introduction
3.2 Electric Current
3.3 Electric Currents in Conductors
3.4 Ohm’s Law
3.5 Drift of Electrons and the Origin of Resistivity
3.5.1 Mobility
3.6 Limitations of Ohm’s Law
3.7 Resistivity of Various Materials
3.8 Temperature Dependence of Resistivity
3.9 Electrical Energy, Power
3.10 Combination of Resistors – Series and Parallel
3.11 Cells, EMF, Internal Resistance
3.12 Cells in Series and in Parallel
3.13 Kirchhoff’s Rules
3.14 Wheatstone Bridge
3.15 Meter Bridge
3.16 Potentiometer
Related Links
NCERT Class 9 Maths Solutions Class 10 Maths NCERT Solutions PDF Download
NCERT Solutions for Class 9 Science  Solution of NCERT Class 10 Science
Class 11 NCERT Chemistry PDF Answers Of Maths NCERT Class 8
NCERT Solutions for Class 9 All Subjects NCERT Solution Class 10
NCERT Class 7 Maths NCERT Class 11 Maths Solution
NCERT Physics Class 11 NCERT Class 11 Biology

Comments

Leave a Comment

Your Mobile number and Email id will not be published.

*

*

close
close

Play

&

Win
